• Model NO.：DR-QMJ 250
• Trademark：D&R
• Origin：China
• HS Code：8438200000
• Production Capacity：30 Sets,Year

Basic Info.

Model NO. DR-QMJ 250 Trademark D&R Origin China HS Code 8438200000 Production Capacity 30 Sets/Year

Product Description

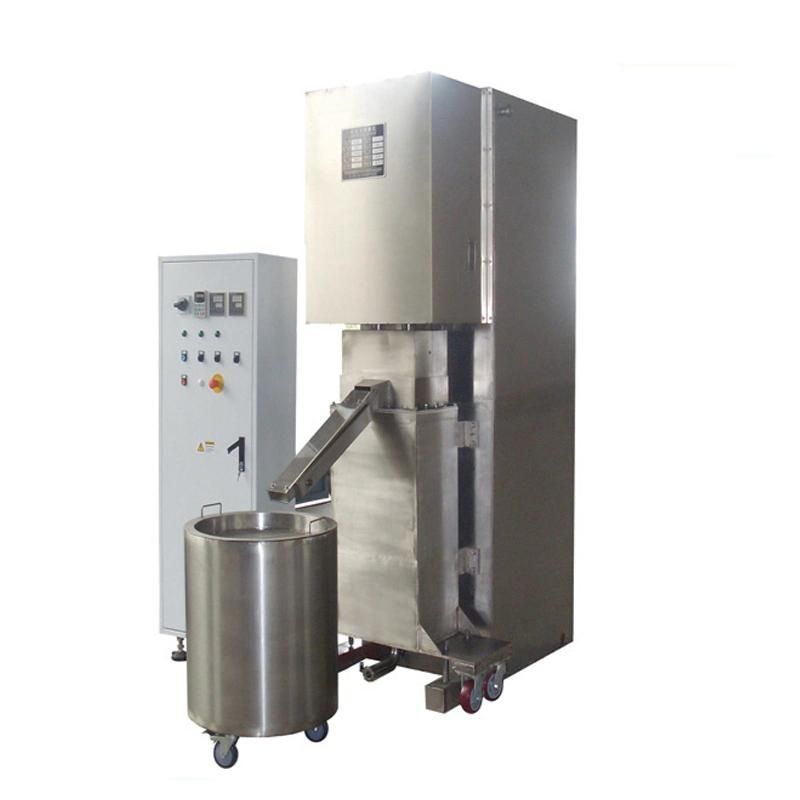

Chocolate Ball Mill Machine, Chocolate Ball Milling Machine

Specification
chocolate ball mill is the fine grinding machine after mixing. It has to work with chocolate conche, rollers or other mixers.
The frame of the main machine is iron with pain, covers are ss202, the tank is stainless steel 304. The impellers and balls are Gcr15 bearing steel after heat treatment, the balls are 5mm, it is about 180kg balls in each machine. The shaft is 40Cr carbon steel.
The power of gear motor is 15kw and heater of hot water is 6kw.
Motors and reducers are the brands of China.

Main motor	15kw
Spindle speed	250-500r.p.m
Grinding medium	200kg(sphere weight)
Average processability	150_250kg
Cooled water	1500kg/h
Temperature	15-20
Outside dimension	1240X960X1733mm
Input/output pump	0.75Kw x 2

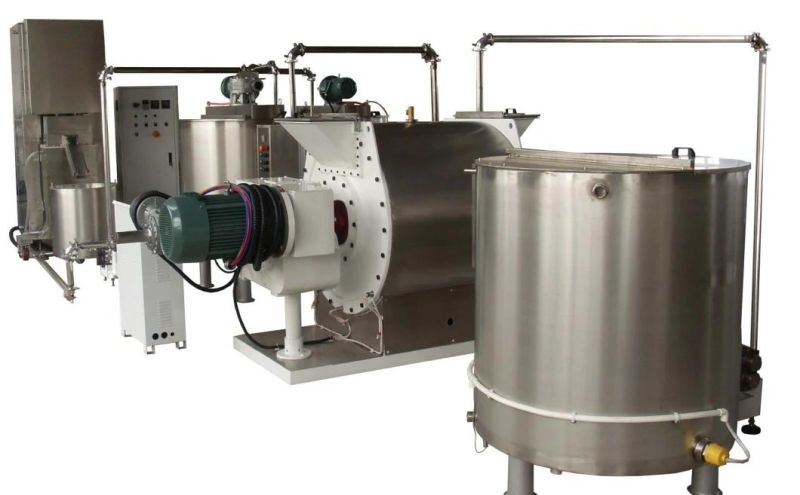

Detailed Images:










Company Introduction:

TOTAL SOLUTION ,TOTAL CARE
D&R Machinery are professional confectionery machine manufacturers with over 10 years in the business operating at the highest industry standards.
We've built a reputation on engineering, designing and delivering high performance total-solution confectionery machinery to clients with absolute precision around the world.

The confectionery machinery industry is a small world, and we've slowly become leaders in innovation and creative solutions for clients from all walks of the industry. D&R Machinery has become synonymous with one word and one world only in the confectionery machinery world and that is 'total-solution', that is end to to end turn key production of the highest quality confectionery machinery in the world.

Becoming the D&R Machinery you see today starts and ends with the word 'care'. You don't become the best without a plan that ensures our clients achieve the success they desire, and at D&R Machinery it starts with care and ends with trust, reliability and innovation.
