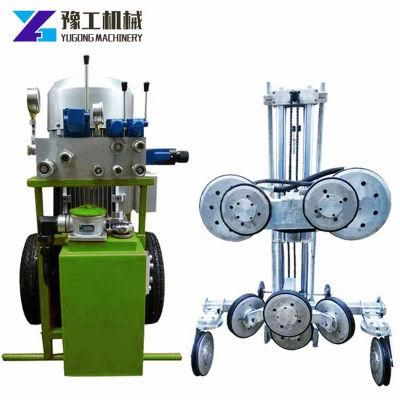

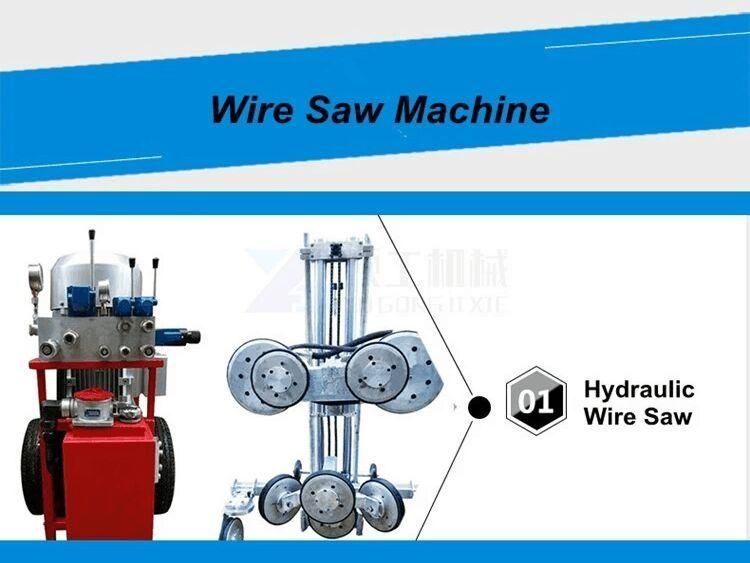

Diamond Wire Sawing Rope Saw Machine for Concrete Cutting
Wuxi Lancy Beauty Technology Co., Ltd.- Application：Ceramic, Concrete, Stone, Marble, Granite
- Type：Electroplating
- Name：Hydraulic Diamond Wire Saw
- Keyword：Diamond Concrete Cutting Saw
- Usage：Jadestone, Cement Brick, Concrete Curb, Marble
- One Set Diamond Wire Rope：50m
Base Info
- Model NO.：YG Diamond Wire Saw
- Diamond Wire Rope Diameter：11.5mm Wire Rope
- Sawing Material：Cutting Reinforced Concrete; Bridge Column Wall
- Related Product：Diamond Hydraulic Wall Saw
- Power Source：Hydraulic Power Unit
- Automation：Semi-Automatic
- Dimension：1300*2500*300mm
- Power：Hydraulic or Electric
- Motor Power：25kw
- Source Voltage：380V,220V
- Hydraulic Pump Type：Gear Pump
- Wire Driving Type：Hydraulic
- Transport Package：Wooden Case
- Specification：210kg
- Trademark：YUGONG
- Origin：Henan( China)
- HS Code：8461500090
- Production Capacity：500sets,Month
Description

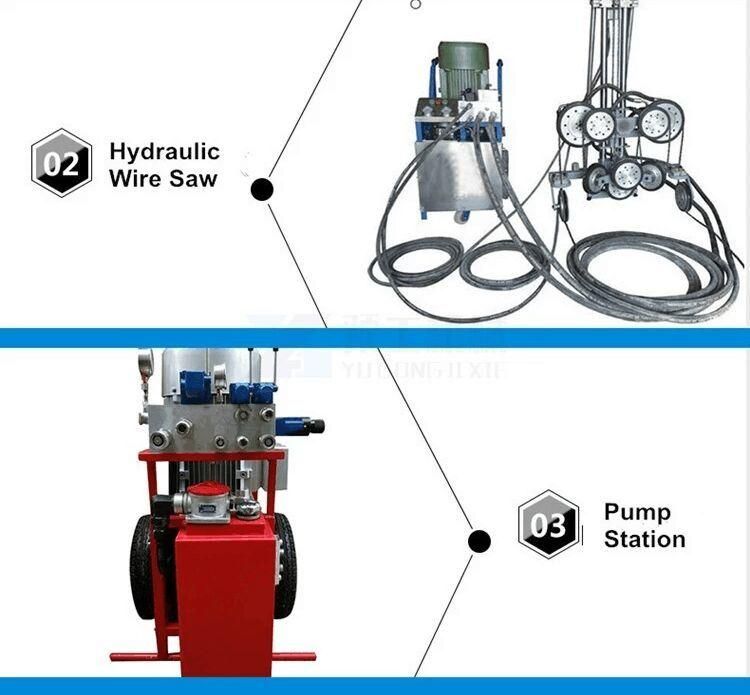

Hydraulic Pump
YG-25
Motor Power
25kw
Voltage
220V/380V, 50Hz
Motor Type
HM-80, 2 Cylinders
Rotation
1300r/min
Working Pressure
15-20Mpa
Weight
170kg
Size
720*650*1050mm

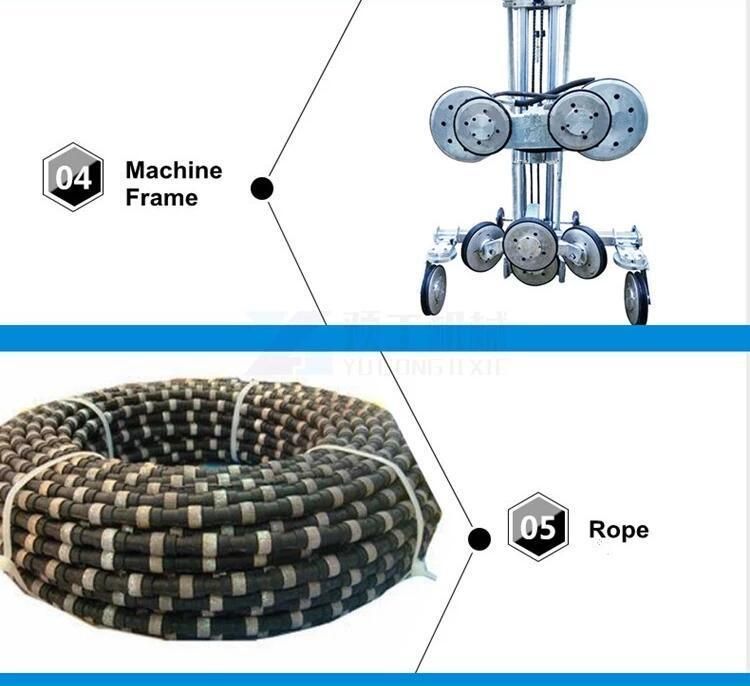

Frame & Wheels
Aluminum
Wheels
10
Weight
75kg
Size
90*90*1700mm
Diamond Wire Saw
Diamond Wire
Specification
φ11.5mm 40beads/m
Cutting speed
3~5m2/h
Wire life
2~3m2/m
Structure
According to the power, it can be divided into two types: electric wire saw and hydraulic wire saw. According to the different cutting purposes and requirements, it can be divided into concrete cutting wire saw, mining wire saw (mining wire saw mainly for marble, granite mining shaping processing with mining waste stone cutting machine at the same time mining waste material)

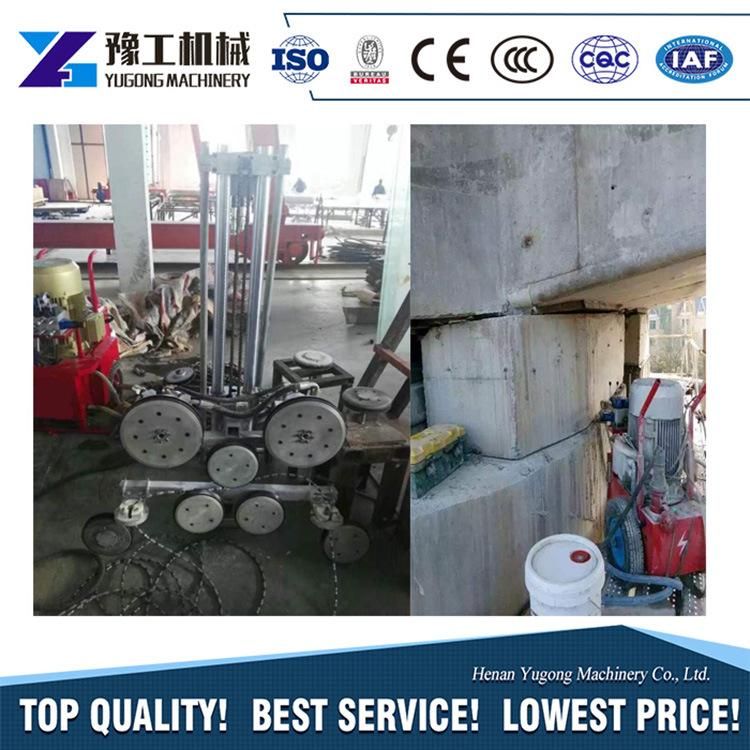

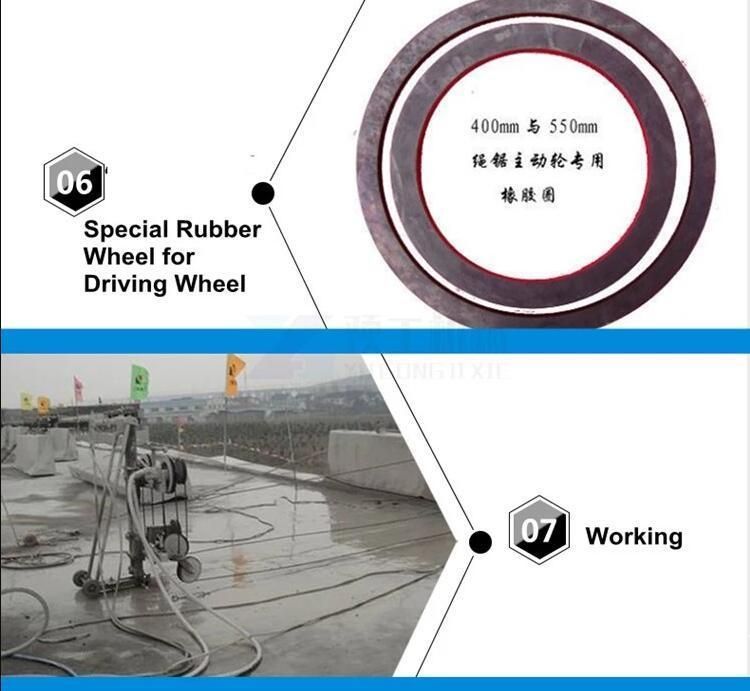

Working Site

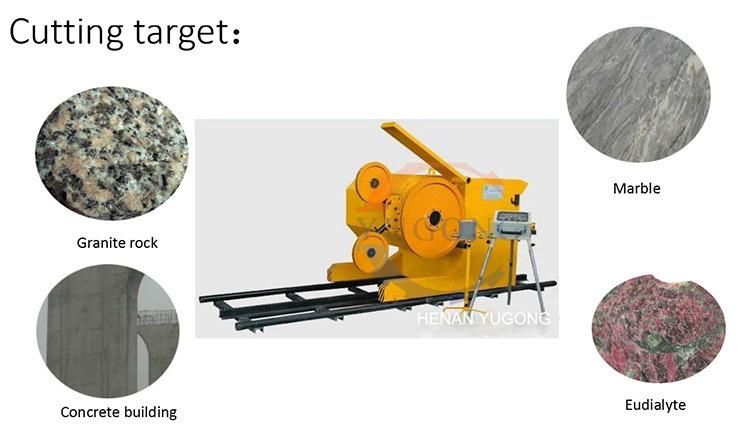

Hydraulic Diamond Wire Saw Machine is used to cut concrete, granite, rock, walls and beams in construction of bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks.
Related Product

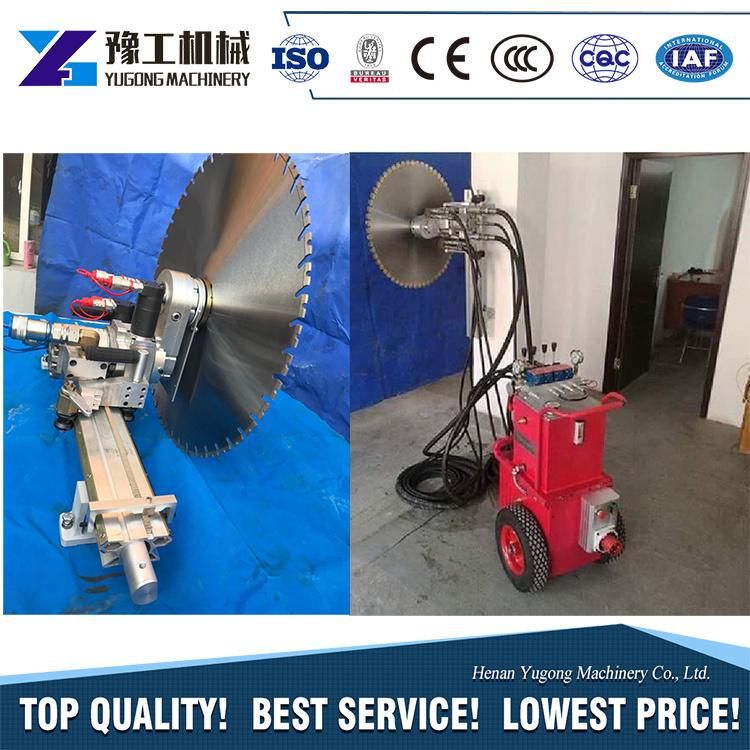

Hydraulic Wall Saw
Diamond Wall Saw cutting machine is mainly used for cutting or slitting of reinforced concrete wall, brick wall or stone, building or old building renovation, reinforcement, change design, etc. It can cut large-area wall such as door hole, window or elevator hole cutting.
Packaging& Shipping
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
