• Model NO.：LBQD-500
• Type：Pneumatic Marking Machine
• Marking Method：Scanning Marking
• Warranty：12 Months
• Consumable Items：No
• Protection Cover：Can Be Customized
• Custom Order：Acceptable
• Transport Package：Wrapping Film & Export Standard Wooden Cases
• Specification：bottom base 350*420mm*700mmh
• Trademark：Label Laser
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Units,Month

Basic Info.

Model NO. LBQD-500 Type Pneumatic Marking Machine Marking Method Scanning Marking Warranty 12 Months Consumable Items No Protection Cover Can Be Customized Custom Order Acceptable Transport Package Wrapping Film & Export Standard Wooden Cases Specification bottom base 350*420mm*700mmh Trademark Label Laser Origin China HS Code 8456110090 Production Capacity 500 Units/Month

Product Description

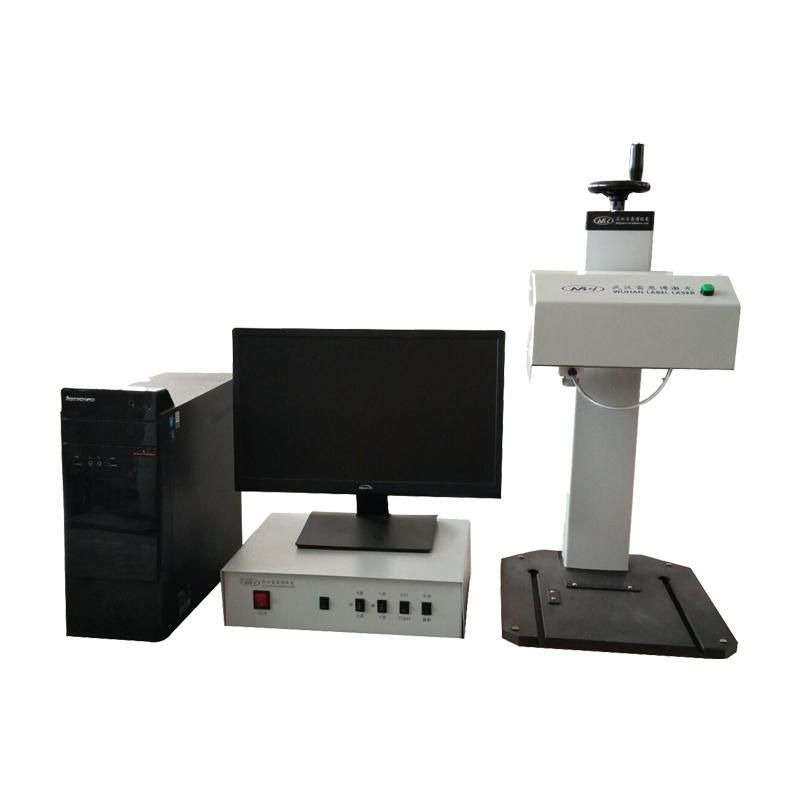

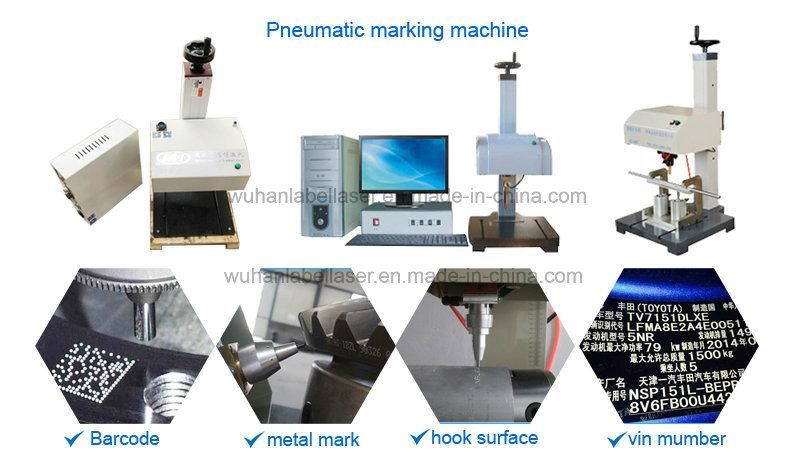

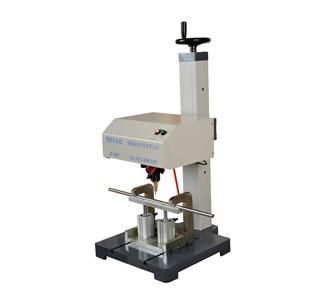

Portable mini marking machine Pneumatic Marking system (LBQD-500)
Computer-controlled printing needle moves according to a certain trajectory in the X, Y two-dimensional space. The printing needle performs high-frequency impact motion under the action of compressed air, and leave a dense dot matrix mark with a certain concave and convex depth on the work pieces.





Product features:

• Good effect on high hardness metal online marking.
• Adopt K3 control system,clear Windows menu,easy to operate;
• Can mark numbers,letters,etc.
• ARM 9 industrial-grade 32-bit microcontroller is independently controlled.touch panel,LED screen.
• Complete file content modification and editing by handwriting pen.
• USB keyboard and mouse,Support to read U disk
• 10M memory
• Good appearance and compact structure.

     Customized online marking system designed by Label Laser not only requires no manual intervention when marking,
     but also provides information collection, uploading, sharing, and online conmmunication with other equipments,
     like sensor, inspection equipment, measuring tool,bardcode label printer, barcode reader, etc.,to aviod any human errors and highly  improve work efficiency.

Applicable field :

• Material: Metal ,Plastic ,Wood,etc.
• Mark serial number, parts name, trademark, and production date on Engine, piston, body, frame, chassis, connecting rod, and cylinder of automobile,motorbike,etc.
• Mark labels on various products, vehicles, equipment, etc.
• Mark on metal material,like Various mechanical parts, CNC router tool, hardware, metal tubes, gears, pump bodies, valves, fasteners, steel, electromechanical equipment,etc.

Technical Parameter:

Model	LBQD-100
Marking Area	170*110mm
Marking head(Z axis) Length	320mm
Marking Speed	2-3 pcs of English letter, figure/s (3mm height)
Marking Depth	0.1-0.6mm(depends on material hardness)
Material Hardness Requirement	HRC≤ 45
Marking Contents	English letter, character, figure, graphics/special symbol/logos, date, logo, ect.
Marking Form	Arc, linear
Marking Function	Automatic marking production serial no.
Control Type	Man-machine dialogue
Gas source	Compressed air/oxygen/nitrogen, 0.1-0.4Mpa, dry and pure pressure.
Total Power	≤ 500W
Temperature of Operation Environment	0ºC~40ºC
Power Input	220V ( ±10%) / 50Hz( ±5%)
Optional	Other customized Automation

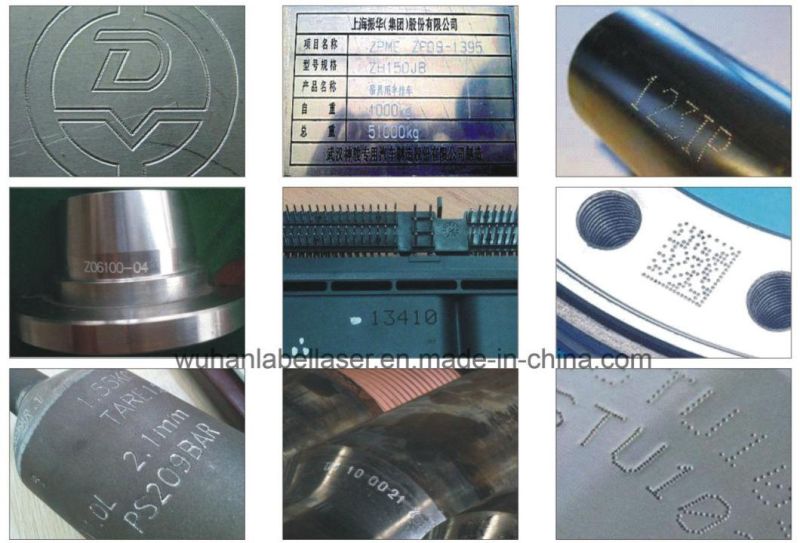

Marking Samples:


About us:
    Wuhan Label Laser Science & Technology Co.,Ltd is a hi-tech corporation located in China Optics Valley in Wuhan City.
It has been specialized in researching and manufacturing industrial Laser marking equipments and supplying marking solutions for customers all over the world since established in 2000.
Why choose us Label Laser ??

• 20 years of researching and manufacturing experience
• Advanced technology, researching and development group
• More than 3000+ successful cases of marking solution accumulated in domestic and oversea markets
• 100% QC
• Utility Model Patent Certificates,involved 3M Flexible label paper marking,Nameplate Auto marking ,Engine cylinder block and head pass-type auto marking,Automobile forged wheel hubs pass-type auto marking, copyright of computer software,etc.
• ISO,CE,SGS certified

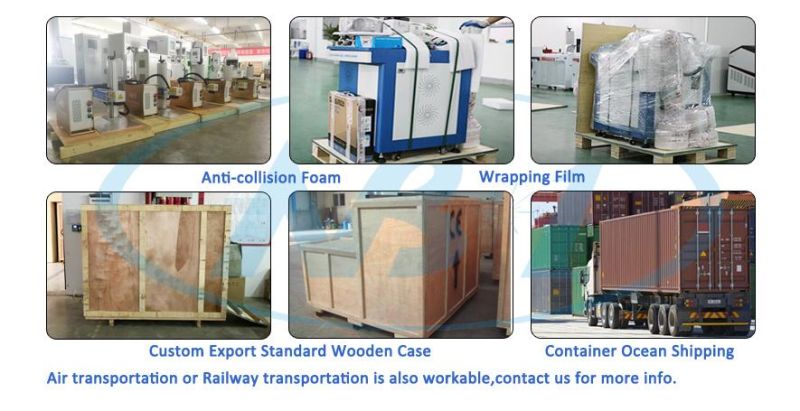

Packing & Shipping:
      - Packing :
          Anti-collision foam + wrapping film+ Export standard wooden case.

      - Shipping:

• Main transportation method: by sea.
• Other Option: by air or railway transportation.

FAQ:

Q: What's pneumatic marking ? And how pneumatic marking machine works?
A: Computer-controlled printing needle moves according to a certain trajectory in the X, Y two-dimensional space. The printing needle performs high-frequency impact motion under the action of compressed air, and leave a dense dot matrix mark with a certain concave and convex depth on the work pieces.

Q: How to operate the machine? Is training necessary?
A: The machine is mainly controlled by software and not complicated. Operation manual with pictures will be provided .Generally speaking, an operator, who is not familiar with fiber laser marking machine can still operate it very well.

Q: In case machine exists the problem, how to do after sales service?
A: One-year warranty of the whole machine. We will help to solve any problems in this period.

Q: Is it possible to add customized protection cover?
A: Yes, customized protection cover is acceptable.

Q: Any consumables for fiber laser marking machine?
A: No consumables. It's very economical and cost-effectient.
