CY-282A Integrated Oil Press with Glass Steel Filter
HANGZHOU PROSPERITY IMP. & EXP. CO., LTD.- Type：Efficient Fine Filter Oil Press
- Application：All
- Voltage：380V
- Appearance：Horizontal
- Press Materials：All Oil Seeds
- Press Series：Second
Base Info
- Model NO.：CY-282A
- Condition：New
- Customized：Customized
- Filtering Part：Glass Type Transparent Filtering
- Feature：Temperatue Can Be Adjusted
- Delivery Time：7days
- Power：5.5kw(380V,50Hz,3P)
- Capacity：100-130kg,h
- with filter：yes
- Transport Package：Wooden Box
- Specification：CE
- Trademark：VIC
- Origin：China
- HS Code：84792000
- Production Capacity：3000PCS,Year
Description

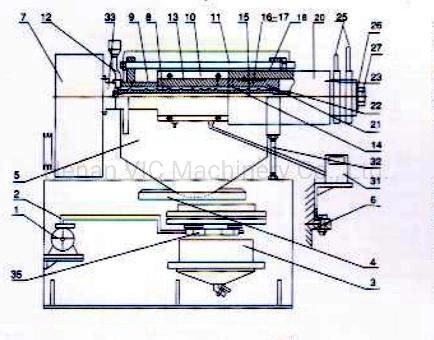

| 7 | Gearbox | 14 | 1# pressing ring | 21 | Cake output exit | 28 | Adjusting nut | ||
| 6 | Base | 13 | Pressing rube | 20 | Cake output ring | 27 | Bearing adjusting nut | ||
| 5 | Oil tray | 12 | Feeder head | 19 | Heating plate 2 | 26 | Bearing lock nut | 33 | Feed opening |
| 4 | Oil conveyor | 11 | Pull rod | 18 | Round ring frame | 25 | Handle | 32 | Bearing rod |
| 3 | Oil filter | 10 | Heating plate | 17 | Round ring 2# | 24 | Bearing | 31 | Meter box |
| 2 | Vacuum pump | 9 | Rods | 16 | Round ring 1# | 23 | Screw | 32 | Pressing screw nut |
| 1 | Small motor | 8 | Pressing screw | 15 | Main shaft | 22 | Slay-out head | 29 | Lock nut |
| No | Name | No | Name | No | Name | No | Name | No | Name |

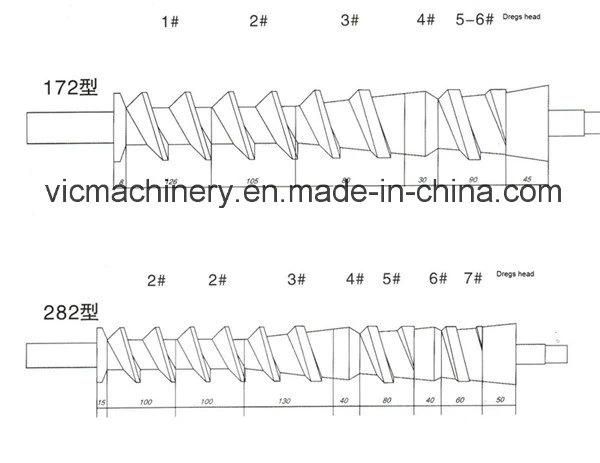

CY-A pressing screw

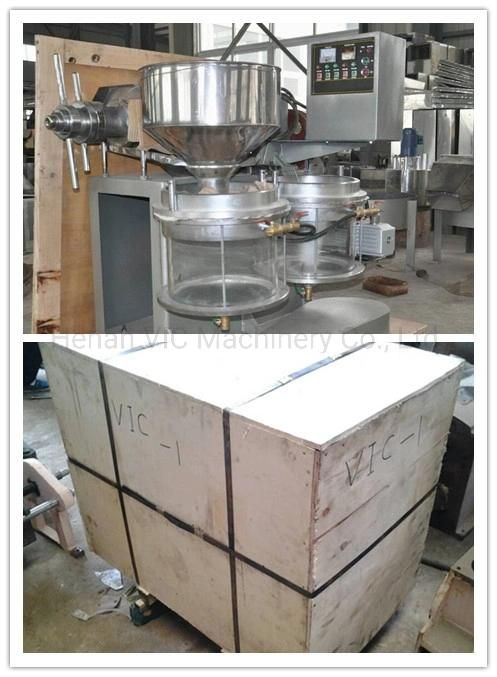

Pakcage picture
Other type CY-system oil press machine

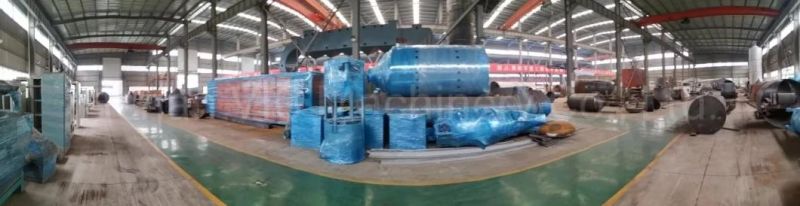

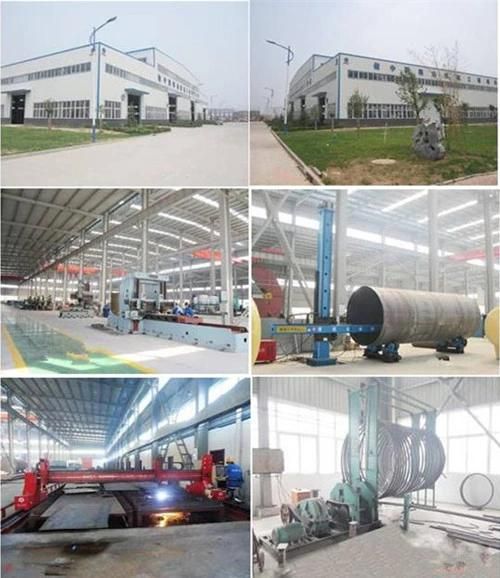

Factory view

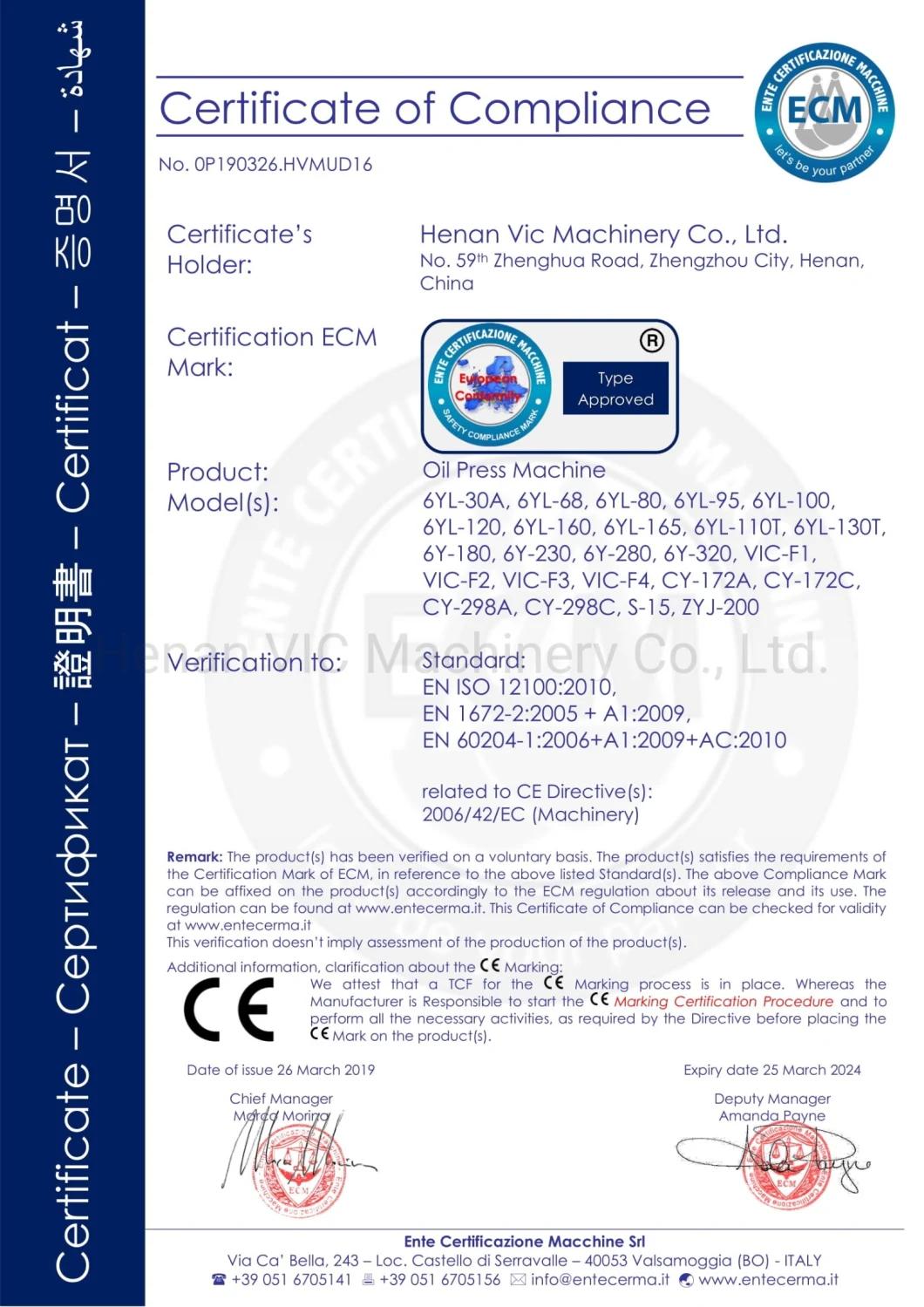

Company certification
