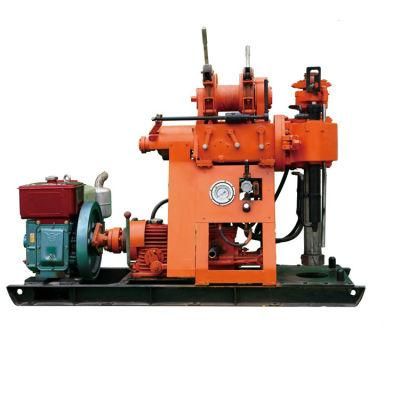

1.Overall parameters Drilling depth100mMaximum open hole caliber300mmEnd hole caliber75mmDiameter of drill rod50mmDrilling angle90~75Weight(not include power)520kgDimension2000*900*1400mm2. Vertical shaft Rotating speed142, 285, 570r/minFeeding stroke450mm3.Hoist Max. single line hoisting capacity1600KgDiameter of wire rope11mmVolume of winding drum27mHug floodgate caliber230mmHug floodgate belt width50mm4.Mud pump TypeHorizontal single urn twin-actionRate of flow95/77L/minMAX. pressure1.2MPaWorking pressure0.7MPaDiameter of water inlet tube42mmDiameter of water outlet tube32mm5.Power Diesel engine18HP, 2000r/minElectrical motor11KW, 1460r/minOur Services



1.Professional techinical support pre-sale, sale and after-sale .

2.Your problems can get feedback in 8 hours and soloved in 24 hours.

3.Machine can be customized as per your requirement.

4.One year quality warranty.

5.Training: operation manual and DVD operation video, overseas installation is also available.

6.Spare parts are available in our factory at cost price for former customers.
