Overview Product Description

Produce process :
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → stacker

Main Composition

ItemQuantity1.SJSZ-XXX conical twin screw extruder (Equipped with automatic feeding unit)One set2.Die and MoldOne set3.Vacuum calibration unitOne set4.Haul-off unitOne set5.Cutter UnitOne set6.StackerOne setOptional auxiliary machines for your choice 1.PrinterOne set2.MixerOne set3.CrusherOne set4.Milling machineOne set5.PVC pipe belling machineOne setProduct Parameters



Diameter(mm)16-40dual20-63dual20-6375-200160-315315-630Extruder modeSJZ51/105SJZ65/132SJZ51/105SJZ65/132SJZ80/156SJZ92/188Extruder power (kw)18.5AC37AC18.5AC37AC55AC110DCMax lineal speed (m/min)0.5-100.5-150.5-100.5-80.5-60.5-4Max capacity (kg/h)12025080-120180-250280-350500-600Installation area  24*2.8*2.0m30*2.8*2.2m35*3.0*2.4 m36*3.0*2.4 m Detailed Photos

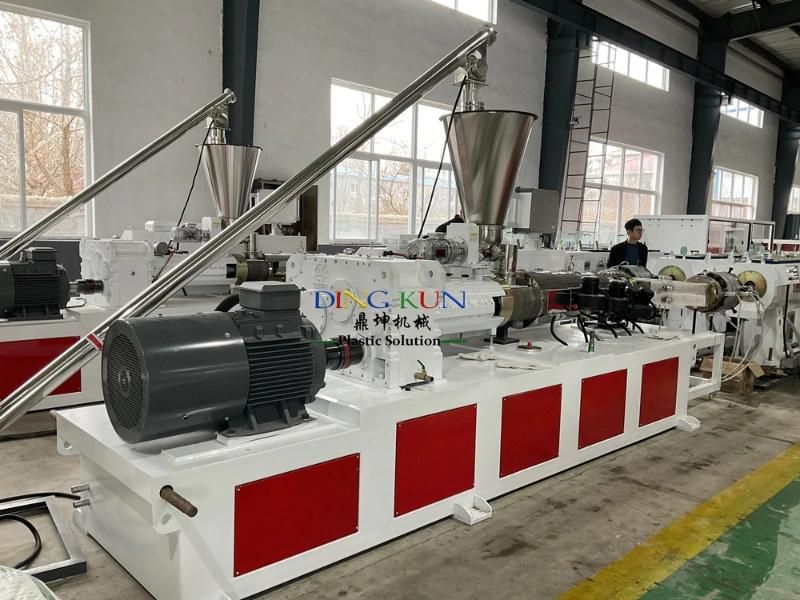

Model:SJZ80/156 Capacity: 300-400kgs/h  Motor power: 55kW Material of screw & Barrel: 38CrMoAl & Bimetallic

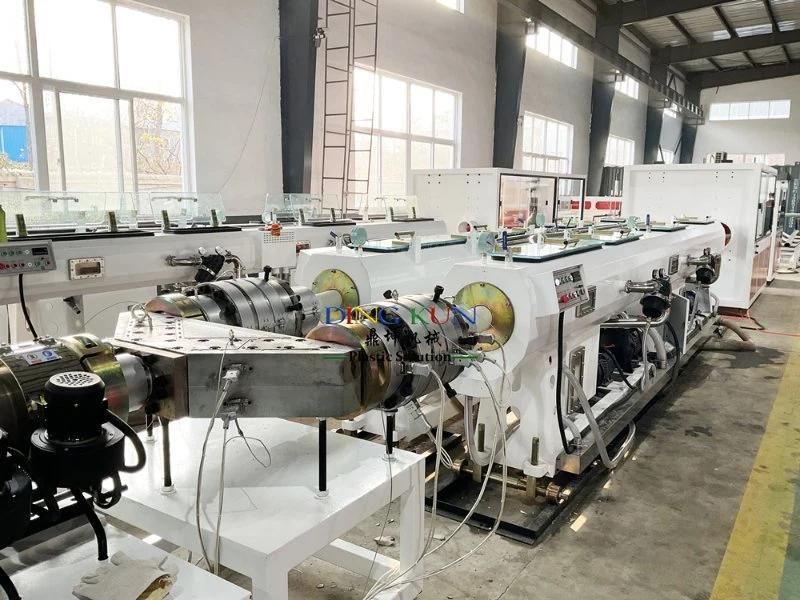

Die Head : Main materials of Body, bin and push: 40Cr, Surface polishing and CR-plating Calibrator: copper or stainless steel, water-ring type Inside flow channel Mirror polished Special chrome plated treatment: 20-30 um Ceramic heaters, high efficient and long life Spider structure for excellent plasticization

Vacuum Tank : Tank materials: 6-8mm 304 S. S.Materials Water temperature and level controlling technology; High pressure and stable water jet. Pressure protection design

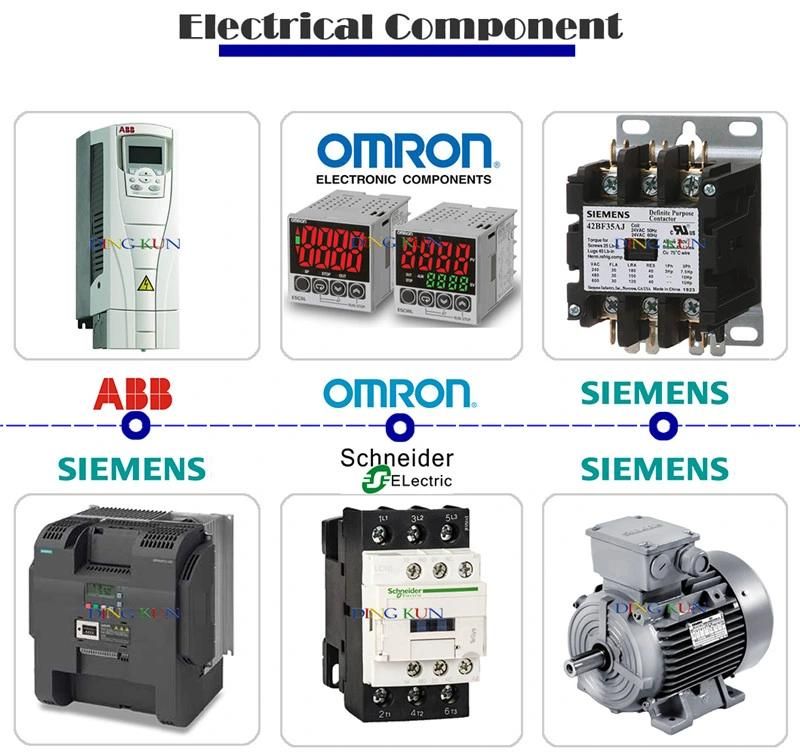

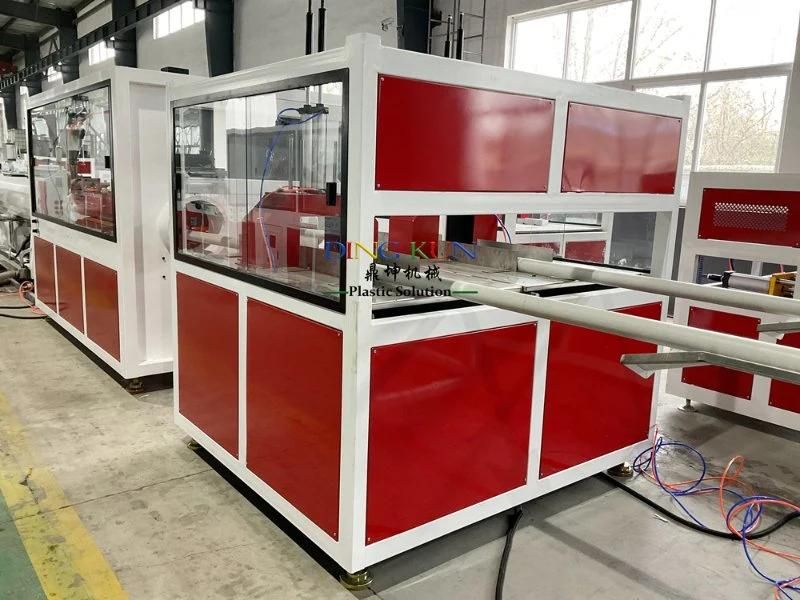

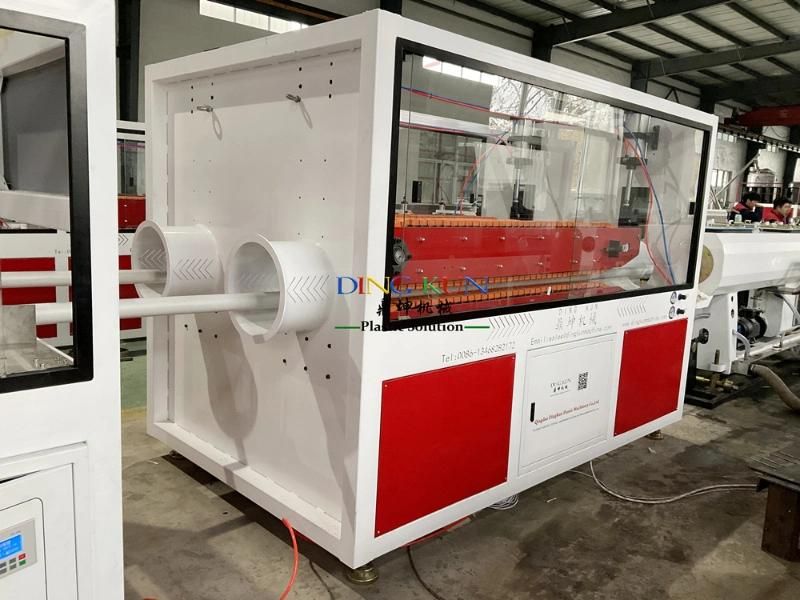

Haul off Machine : Haul-off speed range: 0.5-6m/min AC frequency motor with force cooling fan: Hard gear reducer Speed driving and control: ABB inverter

Cutter :Cutting length: Measured by encoder or travelling switch Frame structure: beautiful appearance, safe operation Italian hydraulic system: less leakage Adopts pulse system for dust removal: no dust accumulation

DINGKUN is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries.

1. Provide all the machines for the complete production according to customer's requirements.
2. Provide complete service for factory layout and other information to help customer to build the factory.
3. Provide the raw material to the customer if need.
4. Provide good service for machine installation and training, until the customers can run the machines and make stable production.
5. Provide after-sell service for all the life, except one year quality guarantee,
6. Provide good quality, good price and good service to customer. We are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
