• Model NO.：LS-YLP-20,30,50L
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：Ls-Ylp-20L
• Laser Power：20W;30W;50W
• Power Consumption：<500W
• Wavelength：1064nm
• Engraving Range：Max 400*400mm(Customized)
• Engraving Depth：1.2mm
• Minimum Line Width：0.012mm
• Minimum Character：0.1mm
• Repeated Accuracy：+-0.003mm
• Life of Laser Module：100000hrs
• Transport Package：Wooden Case
• Specification：980*800*1590
• Trademark：Hispeed or Customized
• Origin：China
• HS Code：8456100090
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. LS-YLP-20/30/50L Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model Ls-Ylp-20L Laser Power 20W;30W;50W Power Consumption <500W Wavelength 1064nm Engraving Range Max 400*400mm(Customized) Engraving Depth 1.2mm Minimum Line Width 0.012mm Minimum Character 0.1mm Repeated Accuracy +-0.003mm Life of Laser Module 100000hrs Transport Package Wooden Case Specification 980*800*1590 Trademark Hispeed or Customized Origin China HS Code 8456100090 Production Capacity 100 Sets / Month

Product Description

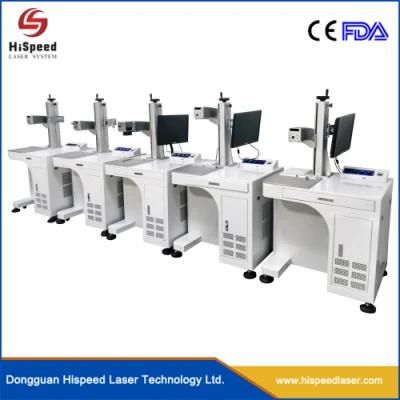

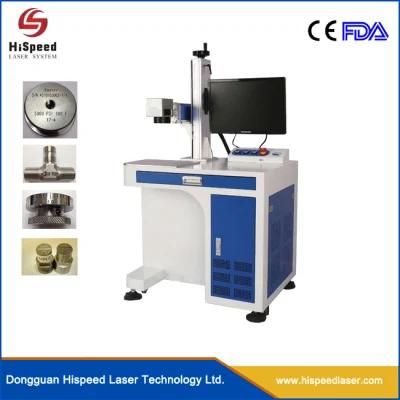

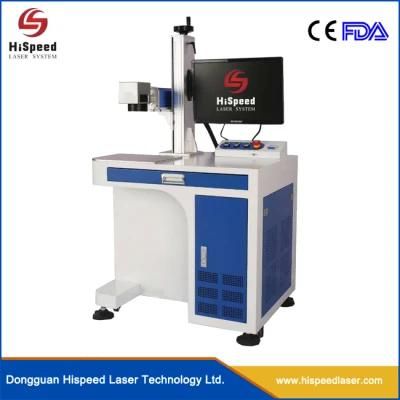

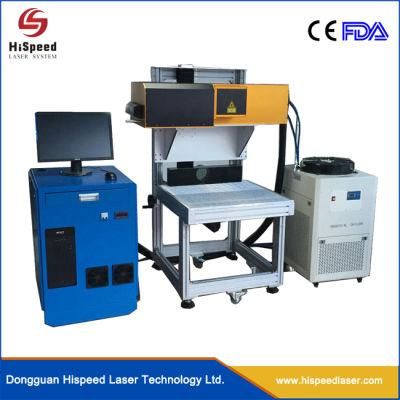

Hispeed Fiber Laser Marking Machine Name Plate Engraving Machine 20W


 Introduction of Laser Marking Machine:

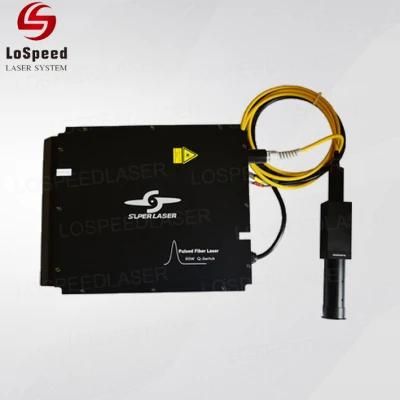

 Our Fiber laser marking machine can work with most metal marking and engraving applications,such as Alloy,Stainless Steel,Brass,Aluminum,Silver,Steel,Iron etc, and can also mark on many non-metal materials such as ABS,PVC,Makrolon, Label,etc. Built-in with YLP type laser source,which is with not only high effciency,stable performance,but also long life,and requires considerable less power and less servicing and maintenance,life time is up to 80,000 - 100,000 hours.






Advantage:

1. One Fiber marker can work for more than 10 years with low power comsumables, Minimal Maintenance .
2. High Speed, Deep Marking, Higher Accuracy.
3. No need to adjust the laser path, Use Integrated Air Cooling.
4.Capable to prevent dust and water ,small volume,compact and solid.

Technical Parameters:

Model	YLP-20J	YLP-30J
Power	20W	30W
Wavelength	1064nm	1064nm
Beam Quality	M2<1.3	M2<1.3
Output Power	10%-100%(continuously to be adjusted)	10%-100%(continuously to be adjusted)
Output Frequency	20KHz-100KHz(continuously to be adjusted)	20KHz-100KHz(continuously to be adjusted)
Power Stability(8h)	<±1%rms	<±1%rms
Focus Spot Diameter	<0.01mm	<0.01mm
Engraving Range	≤400*400mm(customized)	≤400*400mm(customized)
Engraving Depth	1.2mm	1.2mm
Engraving Speed	800 standard characters/second	800 standard characters/second
Minimum Line Width	0.012mm	0.012mm
Minimum Character	0.1mm	0.1mm
Repeated Accuracy	±0.003mm	±0.003mm
System Operation	Windows XP/2000/98	Windows XP/2000/98
Cooling Mode	Air Cooling	Air Cooling
Environment Temperature	10ºC~35ºC	10ºC~35ºC
Environment Humidity	20%-80%	20%-80%
Power Requirement	220V/Singlephase/50Hz/<400W	220V/Single phase/50Hz/<400W
Life of Laser Module	100000Hrs	100000Hrs
Host Size	800mmx650mmx1435mm	800mmx650mmx1435mm

Applicable Materials:


Electronic Components :	Resistance, capacitance, chips, printed circuit boards, computer keyboard.
Apparatus And Meter:	Panel signs, precision equipment ,etc.,
Instrument:	Panel signs nameplates, precision equipment ,etc.,
Hardware Tools :	Knives, tools, measuring tool, cutting tool, etc.,
Automobile Parts :	Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.,
Mechanical Parts :	Bearings, gears, standard parts, motors, etc.,
Daily Necessities :	Handicrafts, zipper, key holder, sanitary ware, etc.,
Jewelry Rings:	Jewelry, gold, silver,etc.
Food, drinking packing:	Plastic packings,etc.



Packaging & Shipping





FAQ:

Q:What material can be marked with a laser ?
A:Aluminum, Stainless Steel,Metal, Plastic ,Labels.

Q:What's the max working area you can provide?
A:we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand.

Q:How can I know your machine works well or disigned for my product?
A:Before delivery, we do test the machine working condition for you, or you can send us samples of your product and we test it on machine.

3.With our marking machines your options are never limited as all our machines are available in two versions so you can pick the best marking option to seamlessly fit into your production line


Looking forward to your inquiry!
