Premier Magnet Holder for Core Bit Retipping
GUANGDONG QIAOYI PLASTIC CO., LTD.- Type：Core Drill
- Usage：Masonry Drilling, Segment Retipping
- Certification：GB,T 19001-2016,ISO 9001:2015
- Good Partner：Good Partner with Drill Bit
- More Useful：Collect Right Do Good Job

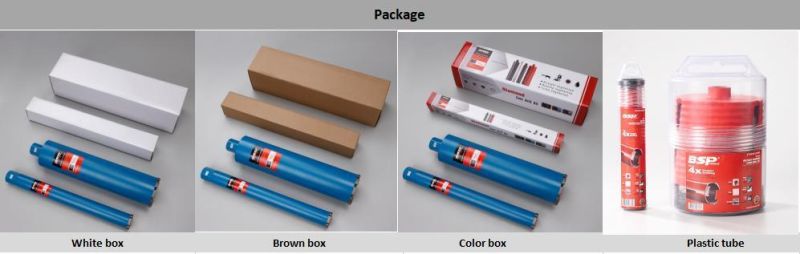

- Transport Package：Color Box,White Paper Box, Brown Paper Box
Base Info
- Model NO.：Magnet holder for core bit retipping
- Specification：Dia 25mm-250mm
- Trademark：BSP TOOLS
- Origin：China
- Production Capacity：10000,Year
Description
DiameterSeg
Nr. Seg.Size Segment
thickness Steel core
thickness (Inch) (mm) (mm) 1" D25 3 15×3.5x9mm 3.5mm 2.0mm 1-1/4" D32 4 15×3.5x9mm 3.5mm 2.0mm 1-1/2" D38 5 20×3.5x9mm 3.5mm 2.0mm 1-3/4" D44 5 20×3.5x9mm 3.5mm 2.0mm 2" D52 5 24×3.5x10mm 3.5mm 2.0mm 2-1/4" D58 5 24×3.5x10mm 3.5mm 2.0mm 2-1/2" D63 6 24×3.5x10mm 3.5mm 2.0mm 3" D76 7 24×3.5x10mm 3.5mm 2.0mm 3-1/2" D89 8 24×3.5x10mm 3.5mm 2.0mm 4" D102 9 24×4.0x10mm 4.0mm 2.5mm 4-1/4" D108 10 24×4.0x10mm 4.0mm 2.5mm 4-1/2" D114 10 24×4.0x10mm 4.0mm 2.5mm 5" D127 11 24×4.0x10mm 4.0mm 2.5mm 5-1/2" D140 11 24×4.0x10mm 4.0mm 2.5mm 6" D152 12 24×4.0x10mm 4.0mm 2.5mm 6-1/2" D167 12 24×4.0x10mm 4.0mm 2.5mm 7" D180 14 24×4.5x10mm 4.5mm 3.0mm 8" D200 14 24×4.5x10mm 4.5mm 3.0mm 9" D230 15 24×4.5x10mm 4.5mm 3.0mm 10" D250 16 24×4.5x10mm 5.0mm 3.5mm
3.Product Feature And Application of the Magnet holder for core bit retipping
The retipping magnet are made of strong N35EH neodymium magnet with strong magnetism but also resistance for heat. In the meantime,the retipping magnet are perfect for position the drilling segment in precise side clearance. Also the inner side clearance can be adjust when you put the magnet in its' a,b,c,d position.
4.Product Details of the Magnet holder for core bit retipping
The rule of segments brazing:
Inner Side clearance = (Segment width- steel core width) x 0.4
Outer Side clearance = (Segment width - steel core width) x 0.4
Following is the reference for the segment size and steel core width for different diameter
5.Product Qualification of the Magnet holder for core bit retipping
Our Magnet holder for core bit retipping has ISO:9001 quality certificate
6.Deliver,Shipping And Serving of the Magnet holder for core bit retipping
The Magnet holder for core bit retipping samples can be sent within one week and bulk order can be finished within 25 days . Shipping by air or sea all is ok. We provide customer minimum 1 year warranty.
