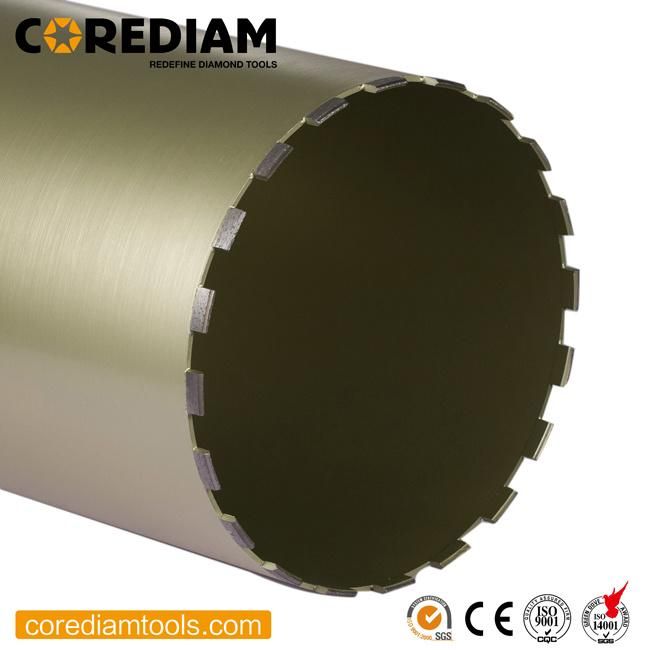

300mm Laser Welded Core Drill with Roof Segment/Core Bit/Diamond Tool
Pinghu Kaixin Plastic Industry Co., Ltd.- Type：Core Drill
- Usage：Masonry Drilling, Reinforced Conrete Drilling
- Certification：SGS
- Manufacturing Technology：Laser Welding
- Segment Height：10mm
- Transport Package：Carton, Case, Pallet
Base Info
- Model NO.：CDDD
- Specification：300x12x450mm
- Trademark：COREDIAM
- Origin：China
- HS Code：82071910
- Production Capacity：2000 Pieces Per Month
Description
Basic Info.
Model NO. CDDD Specification 300x12x450mm Trademark COREDIAM Origin China HS Code 82071910 Production Capacity 2000 Pieces Per MonthProduct Description

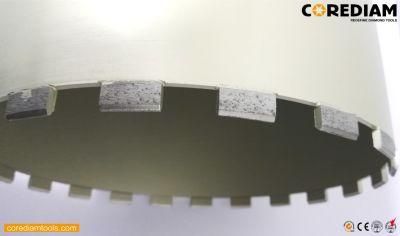

1. introductionThis type of core drill is laser welded, it can be widely used in drilling concrete, reinforced concrete, masonry with superior efficiency. The segment sharp is roof type segments. It can be installed on Stand Core Driller, Hand-Held Drillers. The diameter is 300mm.
2. Features
Manufacturer technology: laser welded
Suitable: wet drilling concrete, reinforced concrete, masonry with superior efficiency.
Advantage: very good sharpness achieve fast drilling, especially very fast when cutting steels meanwhile, wet core drill have a reasonable lifespan.
3.Specification
| Item No. | Diameter | Segment Height | Arbor | Effective Length |
| CWDA02545010 | 25mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA03245010 | 32mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA03645010 | 36mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA04245010 | 42mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA05245010 | 52mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA06245010 | 62mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA06645010 | 66mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA07245010 | 72mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA07645010 | 76mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA08245010 | 82mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA09245010 | 92mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA10245010 | 102mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA11245010 | 112mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA12745010 | 127mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA13245010 | 132mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA15245010 | 152mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA16245010 | 162mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA17245010 | 172mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA18245010 | 182mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA20045010 | 200mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA25045010 | 250mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA30045010 | 300mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA35045010 | 350mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
4.Delivery time
2 weeks for samples after order confirmed.
3 weeks for batch order after payment confirmed.
5.Corediam service
We accept customized lengths and segments for wet core drills.
Also, we help to design the total solution of core drilling projects.

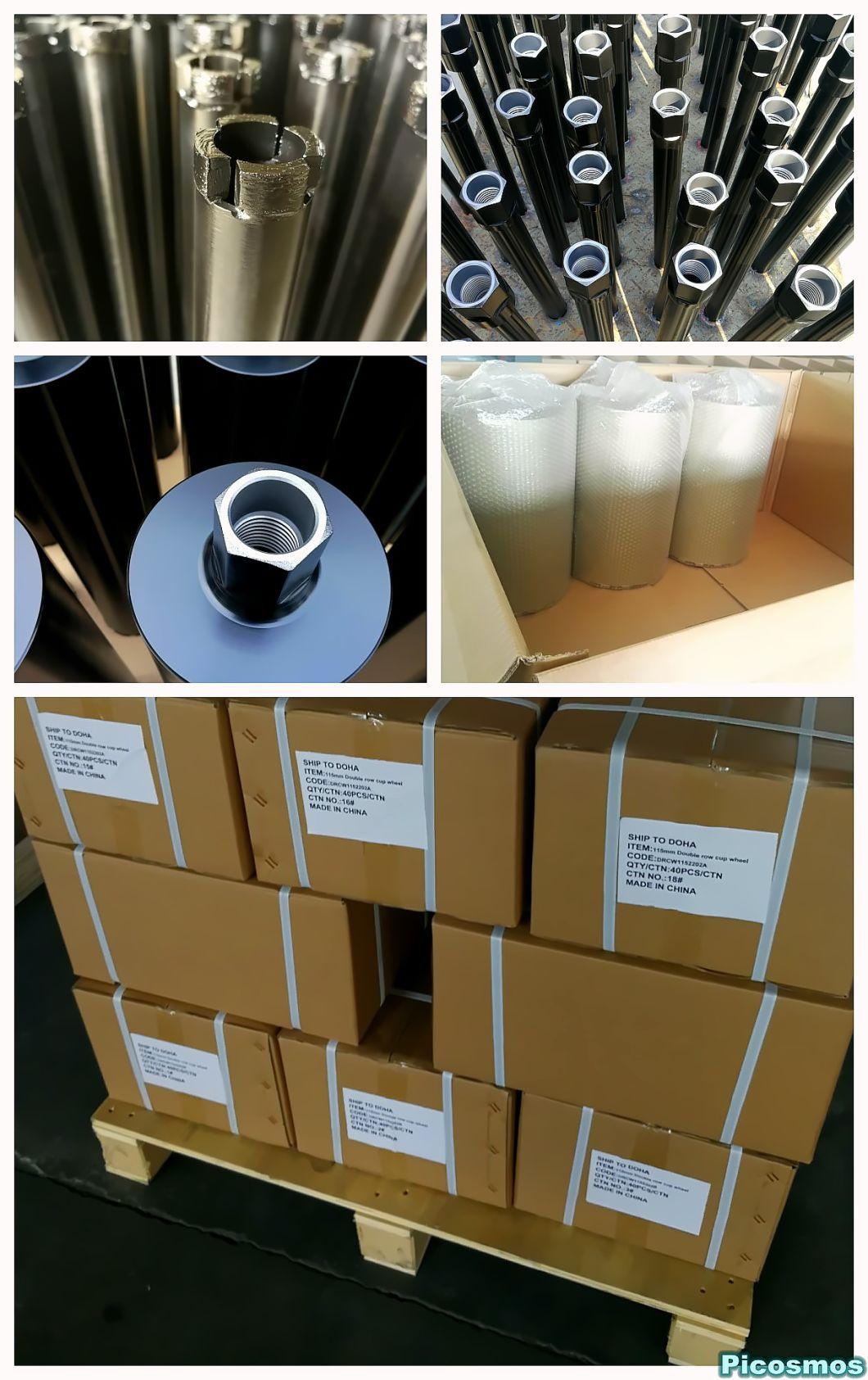

6. Packing and Delivery

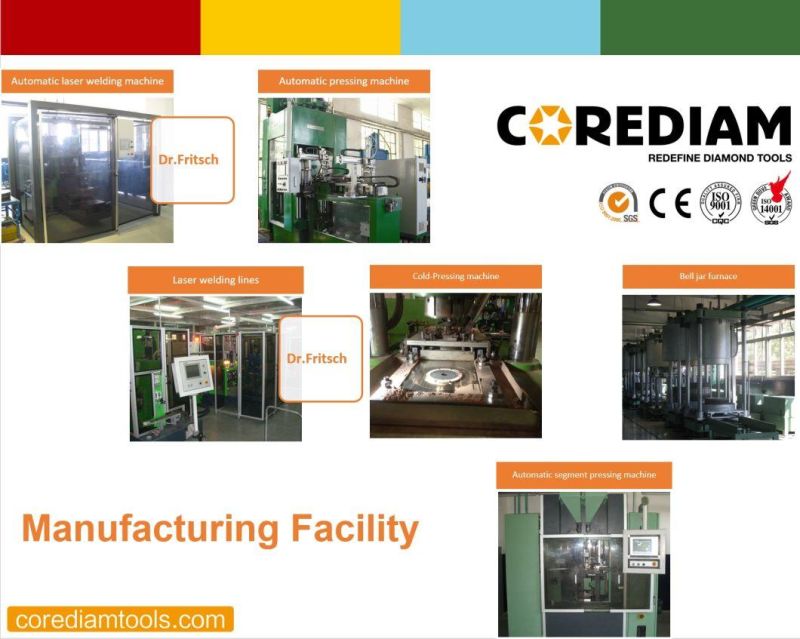

Manufacturing Facility
Core drill barrel quality control system
Corediam sales network
