Model

HF-150

Drill hole depth(m)

≤180

The hole diameter(mm)

350-1800

Spindle speed(r/min)

11

Spindle power(kw)

11

The spindle torque(N•m)

12000

Hoist lifting force(kg)

3000×6

Mud pump

Traffic(m³/h)

300

Power(kw)

22

Generating set

The rated voltage(V)

380

Rated current(A)

90

Rated speed(r/min)

1500

Rated power(kw)

50

Main power supporting power

4105-6105 Diesel

Overall dimensions(L x W x H)(mm)

9200×2500×3500

Single weight(kg)

12000

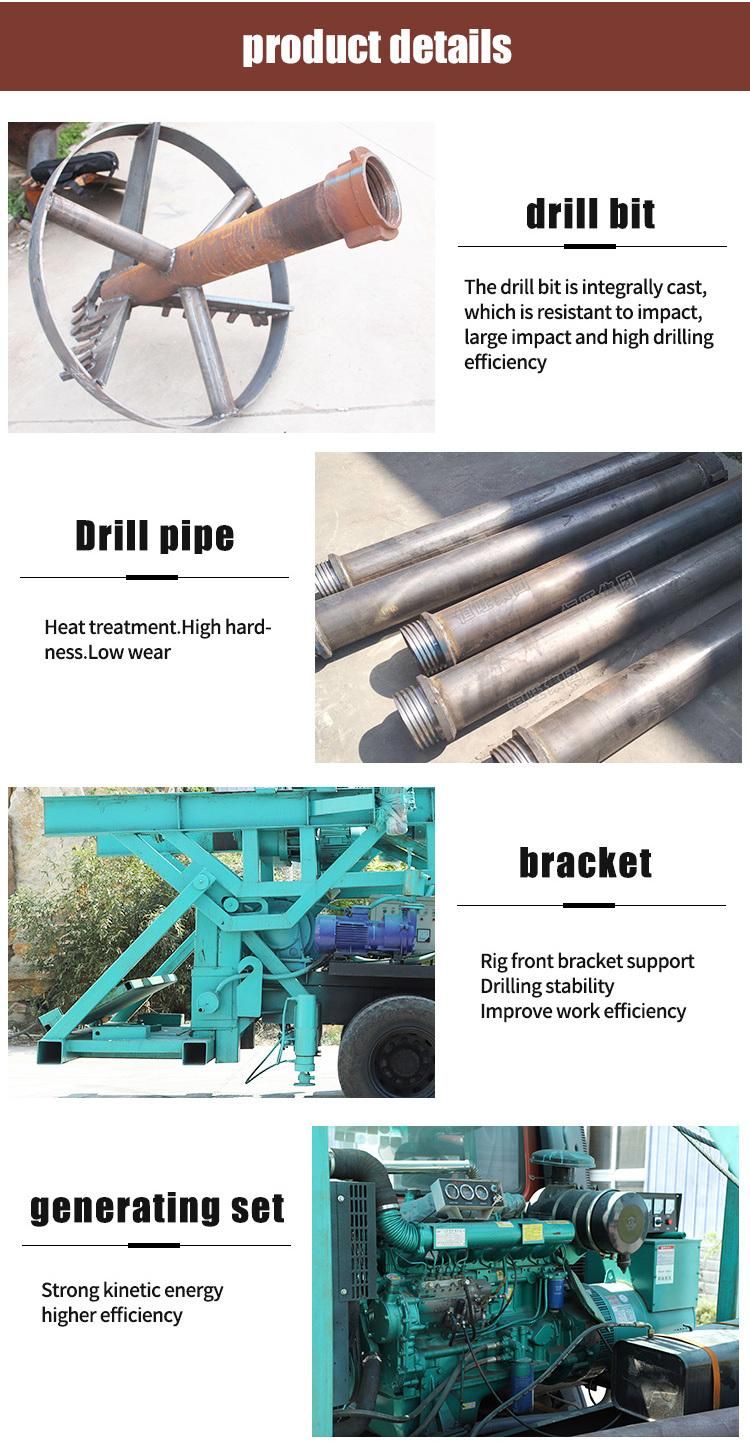

Details:

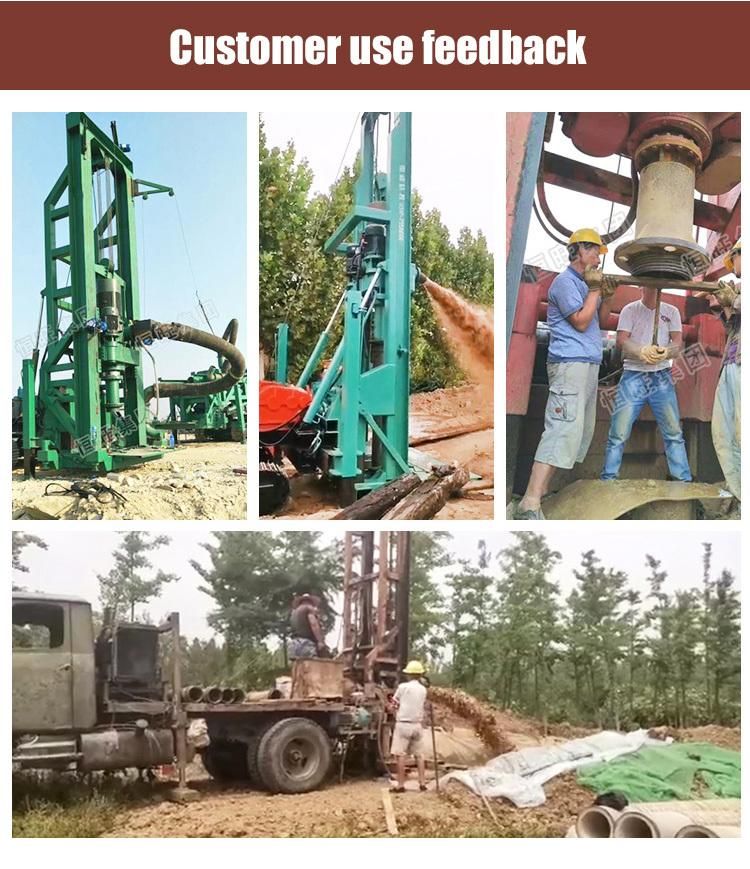

Customer feedback:

Welcome your enquiry: Hengwang drilling rig
