Stable Performance PVC Plastic Granule Extruding Machine
Wenzhou Handpack Machinery Co., Ltd.Base Info
Description
The Main/ First stage
Screw and barrel
Screw dia160mm, Length 2200mm, one set, based on 38CrMoALa material(HV >=950-1100)
Gearbox ZLYJ 280
Motor 55KW, the brand is Huadong, made in Shanghai, quite a good brand in China
Inverter 75KW, the brand is Painier, quite a good brand in china
Screen changer with hydraulic pump, 280mmx280mm
The Auxiliary/ Second stageScrew and barrel
Screw dia130mm, L/d 10: 1, one set, based on 38CrMoALa material(HV>=950-1100)
Gearbox ZLYJ 200
Motor 18.5KW, the brand is Huadong, made in Shanghai, quite a good brand in China
Inverter 18.5KW, the brand is Painier, quite a good brand in china
Screen changer with hydraulic pump, 280mmx280mmThe other parts:
Cutting machine 5kw, one piece, (the knife is made in alloy ) the knife is 200mm width, with 24 pieces with adjusted speed.
Water tank, one piece, in stainless

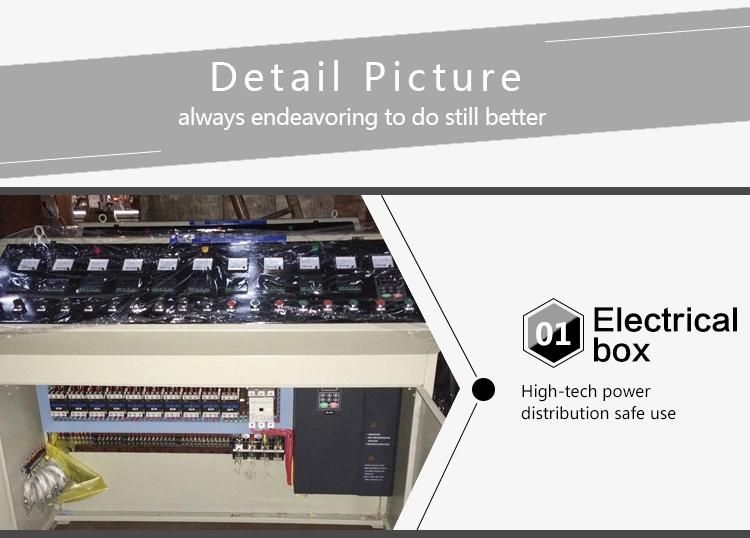

Electrical box, one piece, the brand is Chint, famous brand in china
Container, one piece










Screw and barrel
Screw dia160mm, Length 2200mm, one set, based on 38CrMoALa material(HV >=950-1100)
Gearbox ZLYJ 280
Motor 55KW, the brand is Huadong, made in Shanghai, quite a good brand in China
Inverter 75KW, the brand is Painier, quite a good brand in china
Screen changer with hydraulic pump, 280mmx280mm
The Auxiliary/ Second stageScrew and barrel
Screw dia130mm, L/d 10: 1, one set, based on 38CrMoALa material(HV>=950-1100)
Gearbox ZLYJ 200
Motor 18.5KW, the brand is Huadong, made in Shanghai, quite a good brand in China
Inverter 18.5KW, the brand is Painier, quite a good brand in china
Screen changer with hydraulic pump, 280mmx280mmThe other parts:
Cutting machine 5kw, one piece, (the knife is made in alloy ) the knife is 200mm width, with 24 pieces with adjusted speed.
Water tank, one piece, in stainless
Electrical box, one piece, the brand is Chint, famous brand in china
Container, one piece
