Basic Info.

Model NO. drilling rig machine for water Drilling Way Impactor Type Crawler Transport Package Container Specification 5050*2100*2800mm Trademark YUGONG Origin Henan, China HS Code 8433901000 Production Capacity 100sets/Month

Product Description

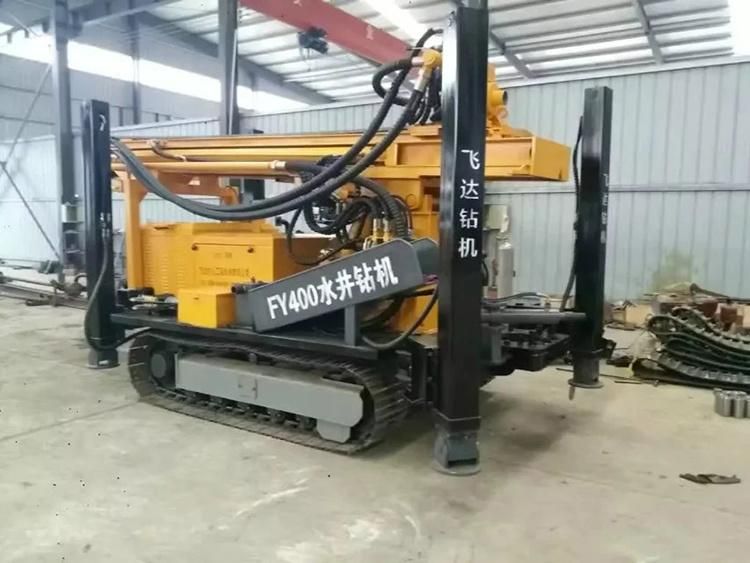

Multifunctional Hydraulic Drilling Rig Machine for Water

Application: widely applied in industrial and civil water well drilling, geothermal well drilling, with large diameter, deep hole, fast speed, flexiable operatoin, high efficiency and other advantages.



Main Parameters
Weight: 10T
Dimension: 5050*2100*2800mm
Hope Dia.: 140-350mm
Hole Depth: 400m
Feed Stroke: 6600mm
Walking Speed: 2.5km/h
Min. Distance above the Ground: 250mm
Working Pressure: 1.7-3.5Mpa
Air Consumption: 17-35m³/min
Main Motor Power: 95kw
Rotary Speed: 45-115rpm
Rotary Torque: 8500-10000N.m
