Portable Crawler DTH Air Hammer Rock Water Well Drilling Rig with Mud Pump Integrated
Ruian Shengxiang Packaging Machinery Co., Ltd.Base Info
Description
FYX-180 Multi-function crawler hydraulic water well drilling rig technical figuresDrilling depth 180m Drilling diameter Φ130-Φ254mm Working air pressure 1.7-2.5MPa Air consumption 15-27m3/min Drilling pipe diameter Φ76, Φ89 Length of drill pipe 3m One push length 3000mm Tramming speed 2.5km/h Climbing ability (Max.) 30° Ground clearance (Min.) 250mm Rotation speed 48-70 rpm Rotation torque 4200-5600 N.m Power 55 Kw Weight 4.5 T Dimension 3800x1500x2350mm

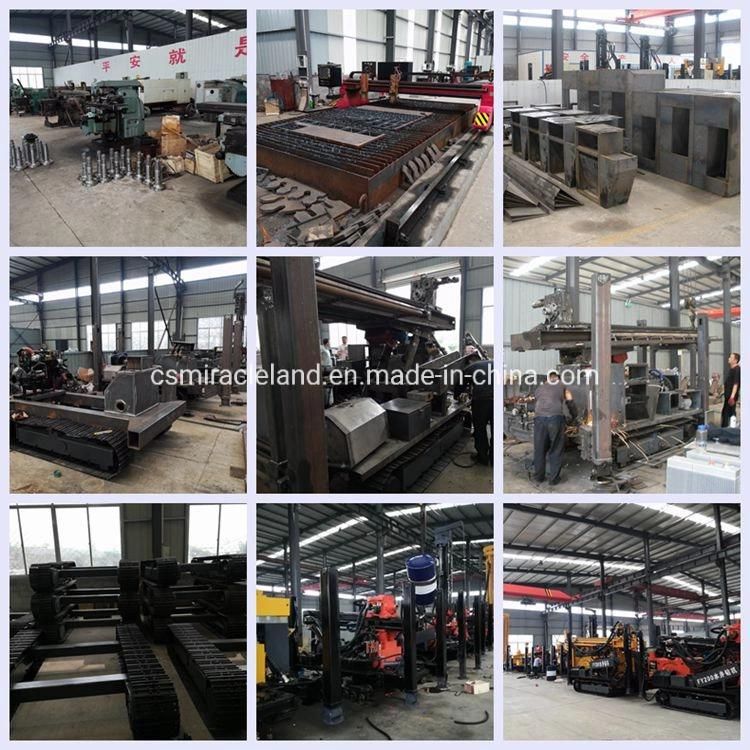

Production Flow:

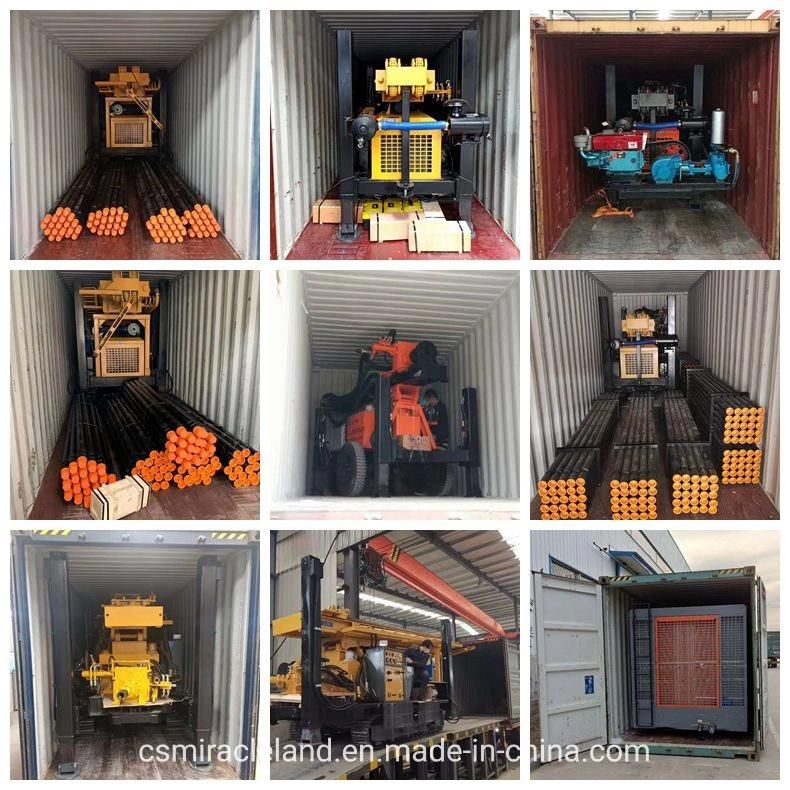

Packaging & Shipping:
Contact Us:
Production Flow:
Packaging & Shipping:
Contact Us:
