• Model NO.：CTSA
• Trademark：Corediam
• Origin：China
• HS Code：82023910
• Production Capacity：1000PCS Per Week

Basic Info.

Model NO. CTSA Trademark Corediam Origin China HS Code 82023910 Production Capacity 1000PCS Per Week

Product Description

1. Product Introduction

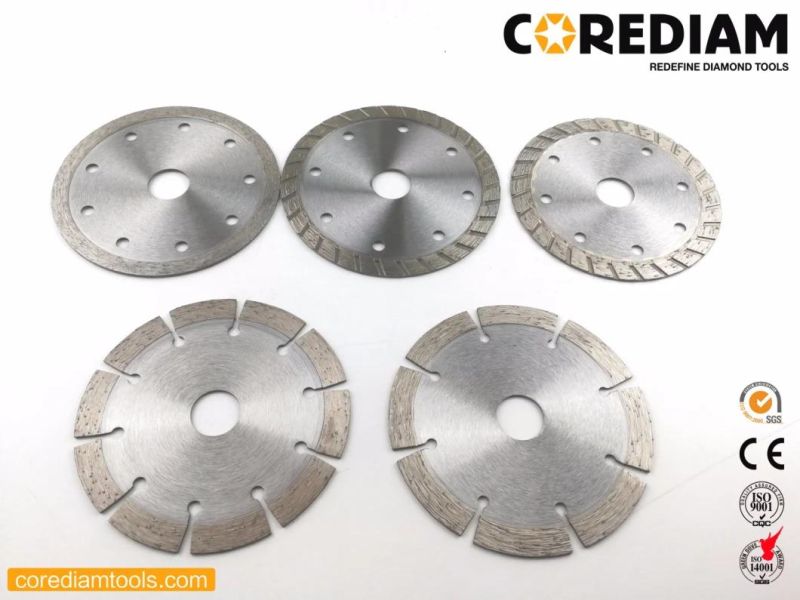

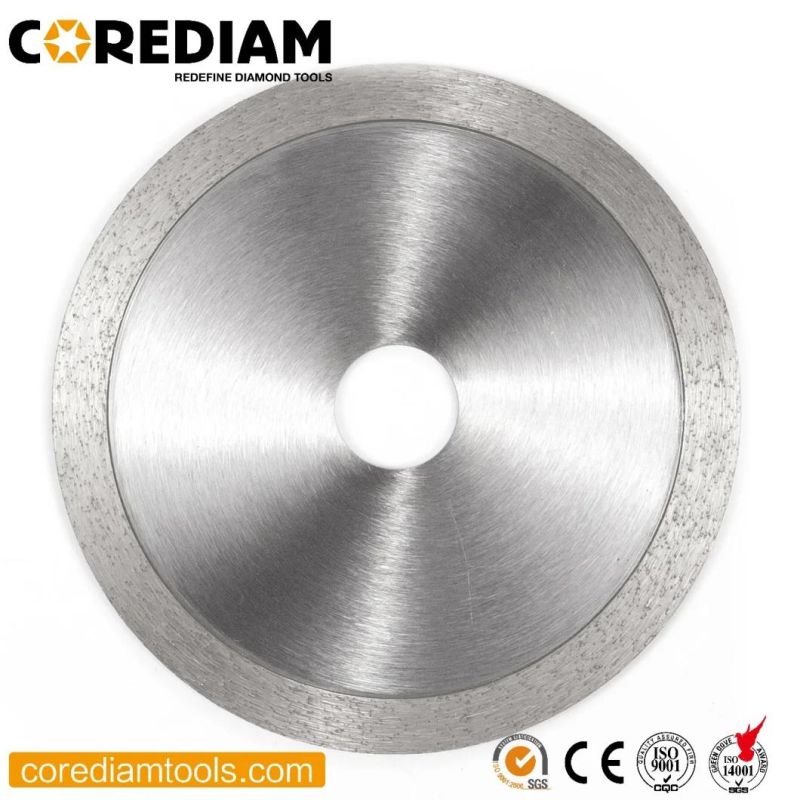

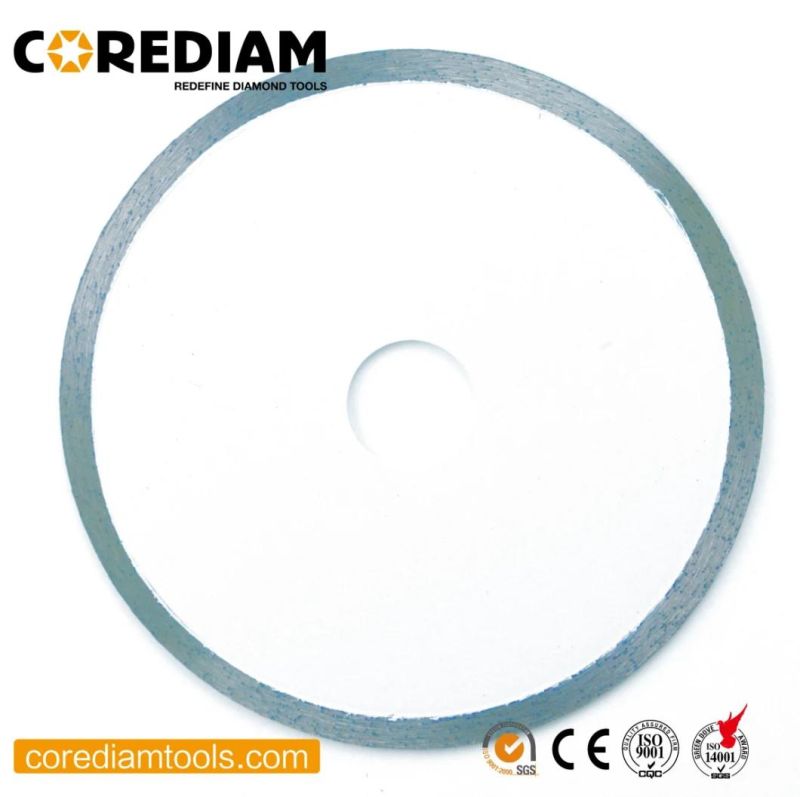

Diamond tile saw blade  is sinter hot-pressed, in this state we make the segmented saw blade have high strength and also improve its cutting performance. Tile saw blade can be installed on angle grinder, table saw, circular saw, using for wet cutting tile, ceramic tile and porcelain. Sintered diamond saw blade have good cutting performance, fast cutting speed, and long life.



2. Features of Concrete diamond saw blade

1). sinter hot-pressing technology.
2). Wet Use.
3). Maximizing the value with good performance.
4). Smooth cutting, no chipping
5). Long cutting life



3. Specification

Item No.	Diameter	Segment Height	Segment Width	Arbor
CTSA105	105mm	7/10mm	1.7mm	22.23mm
CTSA115	115mm	7/10mm	1.7mm	22.23mm
CTSA125	125mm	7/10mm	1.7mm	22.23mm
CTSA150	150mm	7/10mm	1.7mm	22.23mm
CTSA180	180mm	7/10mm	1.7mm	22.23mm
CTSA200	200mm	7/10mm	1.7mm	22.23mm
CTSA230	230mm	7/10mm	1.7mm	22.23mm
CTSA250	250mm	7/10mm	1.7mm	22.23mm
CTSA300	300mm	7/10mm	2.2mm	25.4/50/60mm
CTSA350	350mm	7/10mm	2.4mm	25.4/50/60mm
CTSA400	400mm	7/10mm	2.6mm	25.4/50/60mm

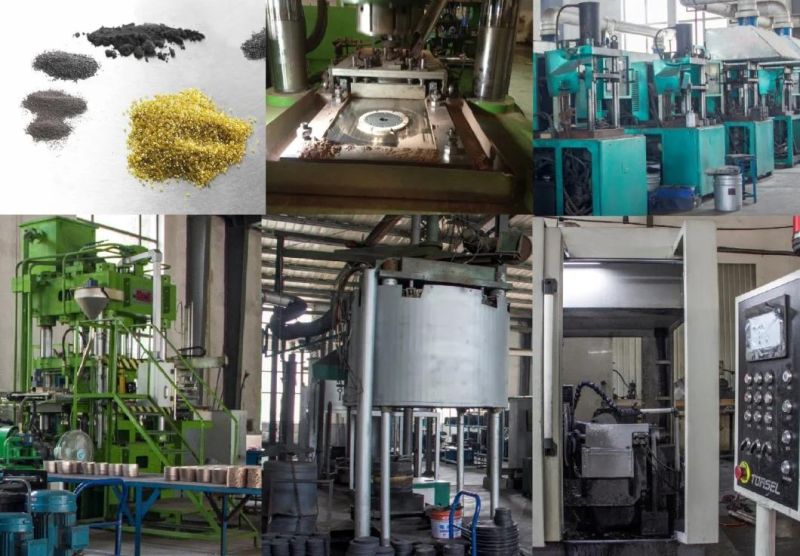

4. Production process

Raw material→ powder mixing→steel core→cold press→sintering→surface treatment→packaging→dispatch



5. Delivery time

For sample test, we can finish preparation within 2 weeks
Our leading time will be about 2-3 weeks for the batch order.



6. Corediam Introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
