Basic Info.

Model NO. DH-90mm Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Speciality High Speed Motor Germany-Siemens Inverter Germany-Siemens Bearing Japan-NSK Control System Sychronization Electric Element Siemens and Schneider Maintance 1 Year Transport Package Wood Package Specification BV Trademark DH Origin Jiangsu, China HS Code 8477900000

Product Description

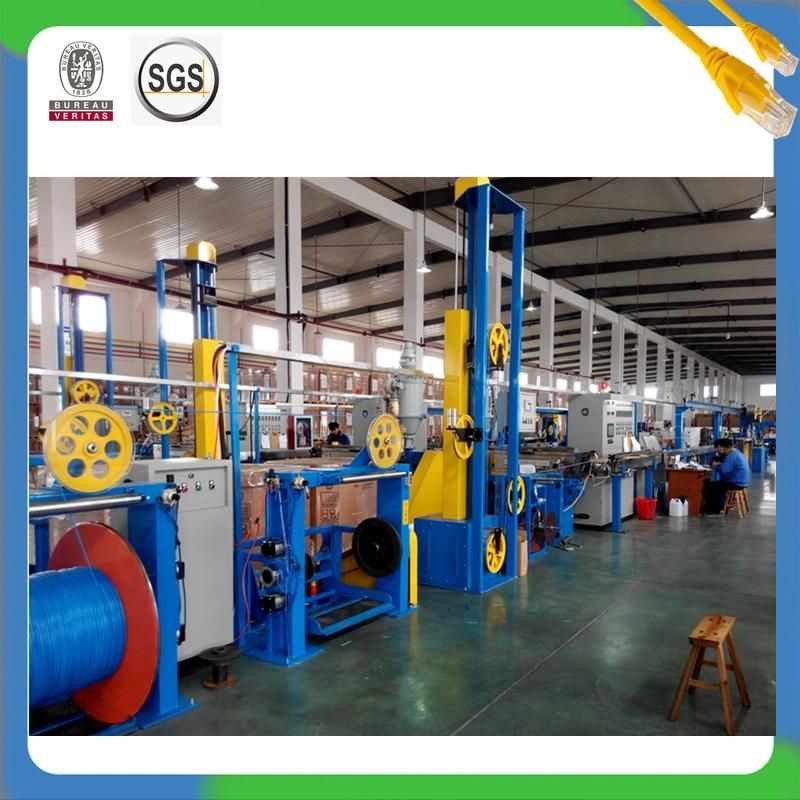

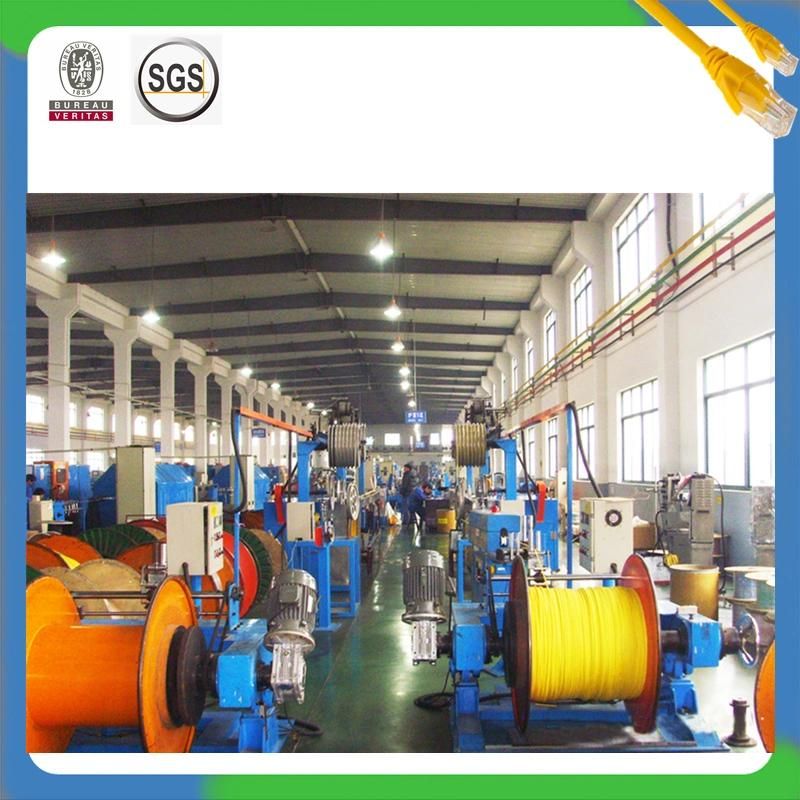

90 Jacket Sheath Extruison Machine Sheathing Machine for Ethernet Cable



Application

It is applicable for electronic wire, power wire, data wire, control wire and high frequency sheath (Jacket) extruding.

Performance and Feature

1. Optimization design of the new type screw, with large outputs, plasticizing completely, rapid change color, etc;
2. Extruding finish plastic's concebtricity could be reach to more than 93%, outer diameter error range is ±0.01;
3. Using SCR power controller or solid-state relay, equip with RKC temperature controlled meter, the temperature difference of machine body is ±1ºC;
4. Design with human interface opearting system, wire diameter automaticlly tracking feedback, it is easily for operating, more efficiency.



Technical Parameter

Pay-off type	Shaftless type
Pay-off bobbin	PN630-400
Core wire specification	4-16mm
L/D ratio	26:1
Extrusion output	270kg/h
Main motor power	60/75HP
Finished wire diameter	5-18mm
Temperatrue control	8 section
Cooling device	Single/ Double layer U type (8M)
Hauling power	7.5HP
Accumulator type	horizontal
Accumlating length	150
Outlet wire speed	Max 250m/min
Take-up type	Dual shaft / shaft
Take-up bobbin	PN8000-1250
Take-up power	7.5HP
