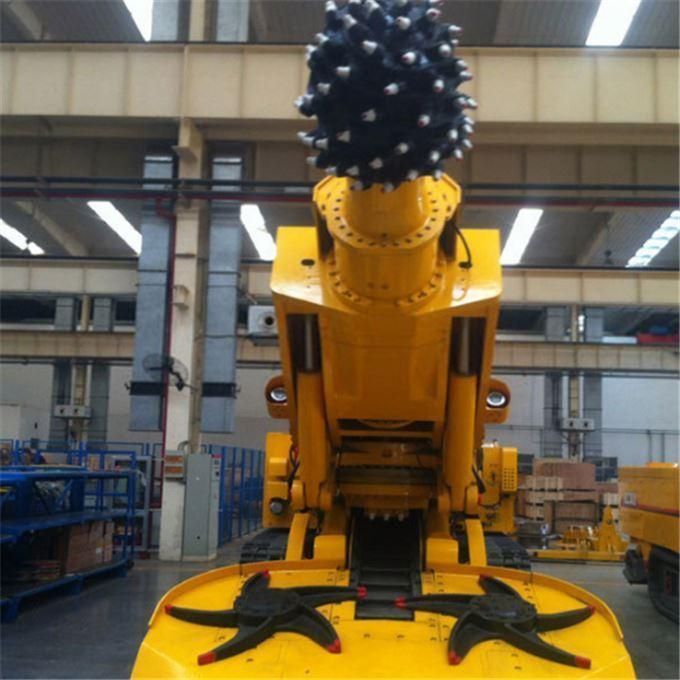

| Item | Unit | XTR4/230 |
| Weight | t | 58 |
| Dimension | Length | mm | 13470 |
| Width | spading device | mm | 2200 |
| body | mm | 2100 |
| height | The highest point of cutting head for laying horizontally | mm | 2200 |
| body | mm | 1965 |
| undercut max | mm | 200 |
| Ground Clearance | mm | 290 |
| Orientation cutting cross section | height | mm | 4600 |
| width | mm | 5100 |
| Max and economic cutting hardness | MPa | <=90/60 |
| Walking speed | m/min | 6.5 |
| Max cutting power | kW | 230/135 |
| Power of Pump Station Motor | kW | 110 |
| Supply Voltage | V | AC1140 |
| Power supply frequency | Hz | 50 |
| Loading ability | m3/min | 3 |
| Pressure of the spraying system | MPa | External spraying:1.5 Internal spraying:3 |
