• Model NO.：CCSS
• Customerzied：Customized
• Transport Package：Carton, Pallet
• Specification：350x10x22.23mm
• Trademark：Corediam
• Origin：China
• HS Code：82023910
• Production Capacity：1000PCS,Day

Basic Info.

Model NO. CCSS Customerzied Customized Transport Package Carton, Pallet Specification 350x10x22.23mm Trademark Corediam Origin China HS Code 82023910 Production Capacity 1000PCS/Day

Product Description

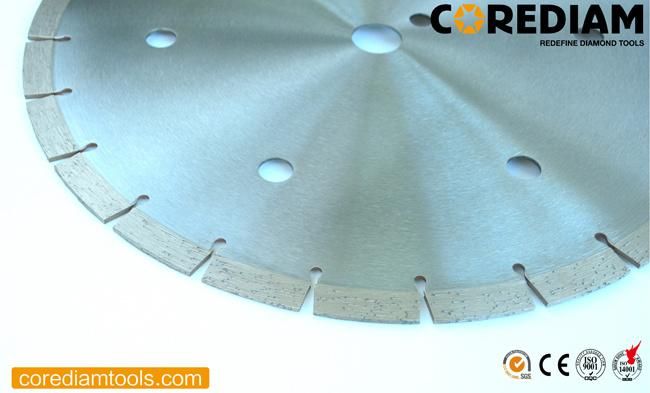

1.Concrete blade Introduction
The blade is a sinter hot-pressed dry blade. The diameter is 350mm, the segment height is 10mm, the arbor size is 25.4mm. We can also supply arbor size 20mm. This kind blade is perfect for those contractors who need to cut a wide variety of different materials. These materials include brick, block, slate, masonry, concrete, or quarry. It can be used for both dry and wet cutting. You can install these blades on angle grinders, circular saws, handheld saw, and table saw. We can supply OEM service.

2. Concrete blade feature:
- Suitable for wet and dry cutting.
- Light and easily-carried.
- It has smooth fast cutting speed and long cutting life.
- Diameter ranges from 4-inch to 16-inch.
- Different grade to choose.
- It won't be out of sharp after using for a long time.

3. Concrete blade specification

Item No.	Diameter	Segment Height	Segment Width	Arbor
CCSS10510	105mm	10mm	2.0mm	22.23mm
CCSS11510	115mm	10mm	2.0mm	22.23mm
CCSS12510	125mm	10mm	2.0mm	22.23mm
CCSS15010	150mm	10mm	2.0mm	22.23mm
CCSS18010	180mm	10mm	2.3mm	22.23mm
CCSS23010	230mm	10mm	2.5mm	22.23mm
CCSS30010	300mm	10mm	3.2mm	20/25.4mm
CCSS35010	350mm	10mm	3.2mm	25.4mm
CCSS40010	400mm	10mm	3.2mm	25.4mm

OEM service offered.


4. Delivery time
Sample delivery: If we have stock, the delivery time is within one week after we got your sample payment. If we don't have stock, the delivery time will depend on the sample productionFor batch order, delivery time is usually 3-4 weeks after order confirmation and payment.

5. Concrete Blade Manufacturing Technique
Raw material→ powder mixing→steel core→cold press→sintering→surface treatment→packaging→dispatch

6. Corediam Introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.

7.Corediam quality control system.



8. Corediam testing process
