• Model NO.：RL-HC
• Structure：Thin-Film Type
• Material：Carbon Steel
• OEM：Support
• Color：Yellow,Black, Other
• Bucket Weight：110kg-2700kg
• Transport Package：Plywood Pallet
• Specification：3cbms
• Trademark：Ruilan
• Origin：China
• HS Code：840122190
• Production Capacity：50000pieces,Year

Basic Info.

Model NO. RL-HC Structure Thin-Film Type Material Carbon Steel OEM Support Color Yellow,Black, Other Bucket Weight 110kg-2700kg Transport Package Plywood Pallet Specification 3cbms Trademark Ruilan Origin China HS Code 840122190 Production Capacity 50000pieces/Year

Product Description

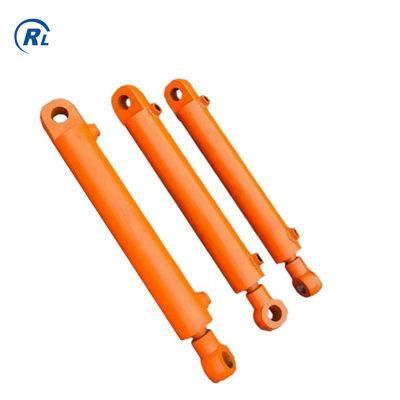

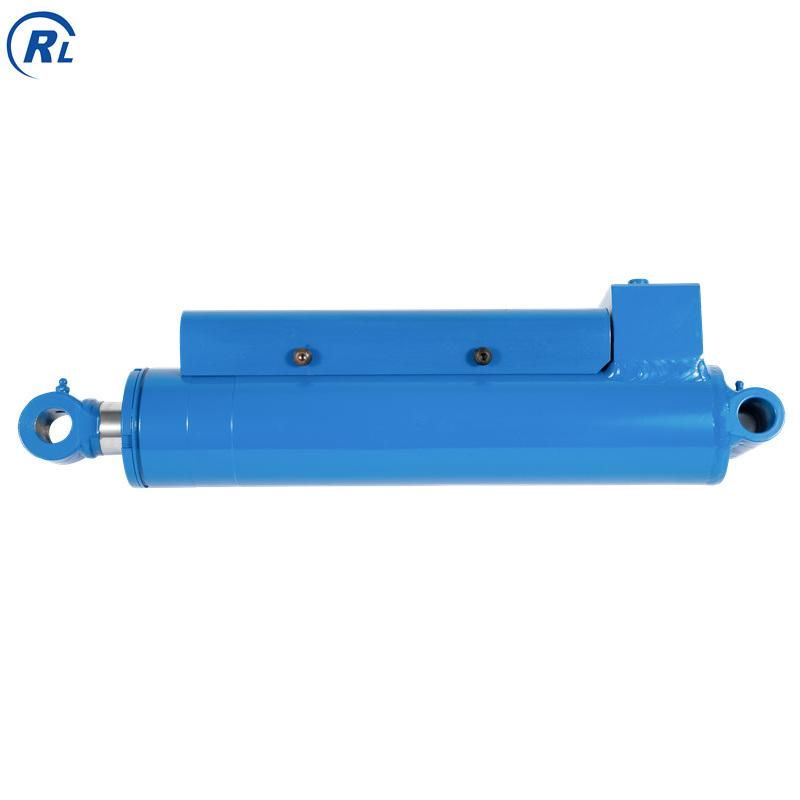

Cylinder Photo

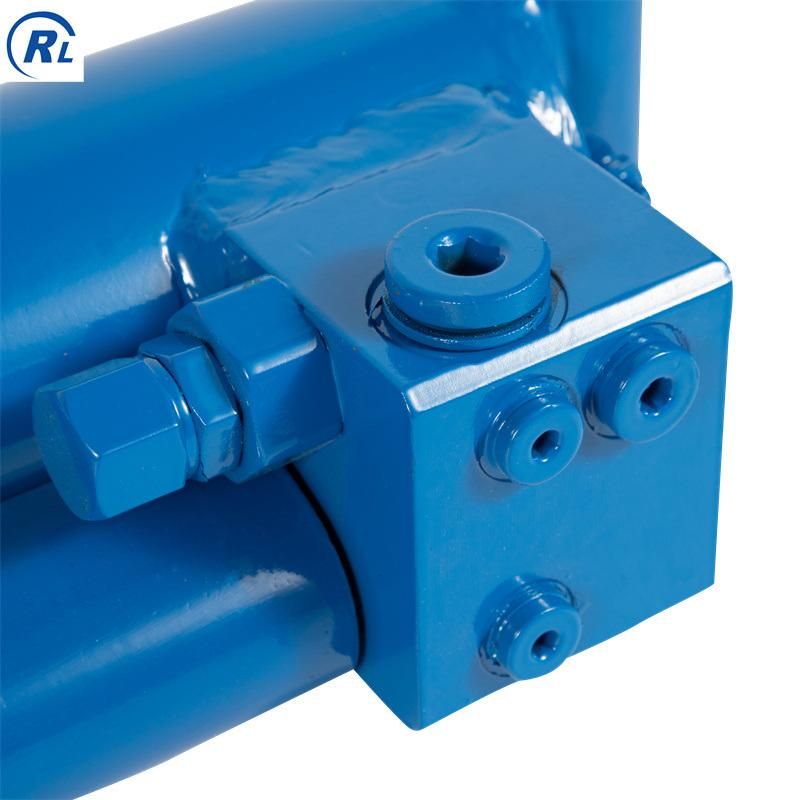

Hydraulic cylinder details

Multi-stage telescopic hydraulic cylinders supply a long stroke, it can also afford a big lifting force. Single and double acting multi-stage telescoping hydraulic cylinders for many applications including material handling, waste/recycling compaction, harvesting and others.

Custom-made 4 stages telescopic long stroke hydraulic cylinders, which are produced according to the drawings provided by the customer.

We can meet your special requirements for hydraulic cylinders.The cylinders could be customized from  2 stages to 7 stages.

This type hydraulic cylinder mainly used in the dump vehicles and equipments.

Material:

Piston: 45# steel

Tube: 20# steel

Piston rod: chrome plated 45# steel

Cylinder cap: 20# steel

Cylinder base:   20# steel

Seal ring: famous Chinese brand or international brand

Max.Cylinder Bore: 300mm

Max.Piston Rod Dia.:  280mm

Max.Retract Length: 3500mm

Max .Stroke:Single stage cylinder 6500mm
Multi-stage cylinder 12000mm

Max.Working Pressure:35Mpa

Min.Working Pressure:10Mpa

Working Pressure of Heavy-duty Cylinder:  40Mpa
We have all the main essential components for hydraulic cylinders with exceptional attention and precision (from metal processing to assembly and painting). The cylinders are built using a large modern park of equipments where performed such processes as: turning, milling and welding. Painting is performed on the modern industrial paint equipment which is in accordance with requirements for protective coating. In production we use raw materials such as tubes, chrome plated bars and sealing components directly from industry leading suppliers.

Telescopic cylinders are also referred to as telescoping cylinders and multi-stage telescopic cylinders.

Multi Stage Hydraulic Cylinder Applictions:dump truck, dumper lorry, tipping truck, tipper

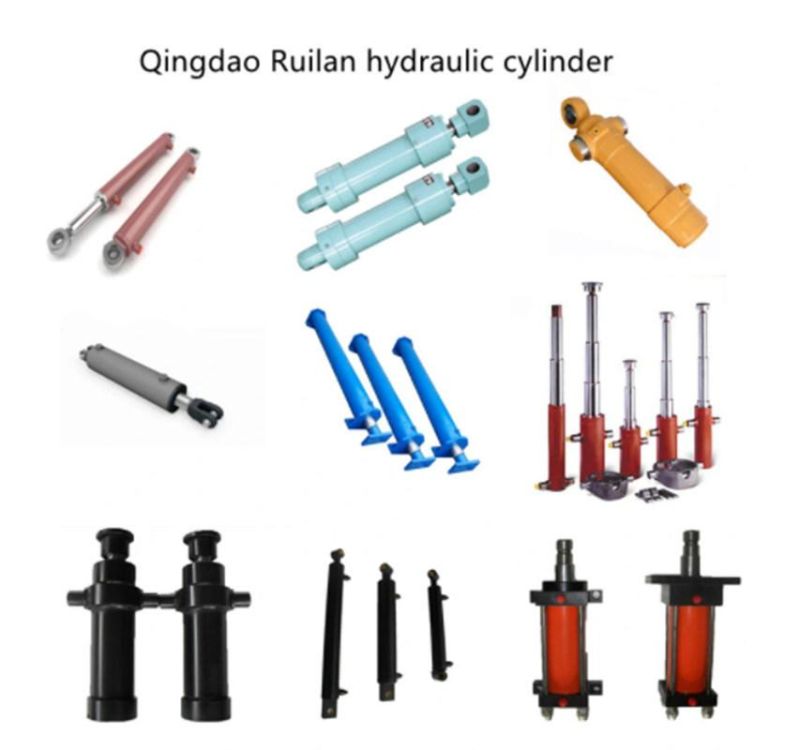

Other cylinders photos

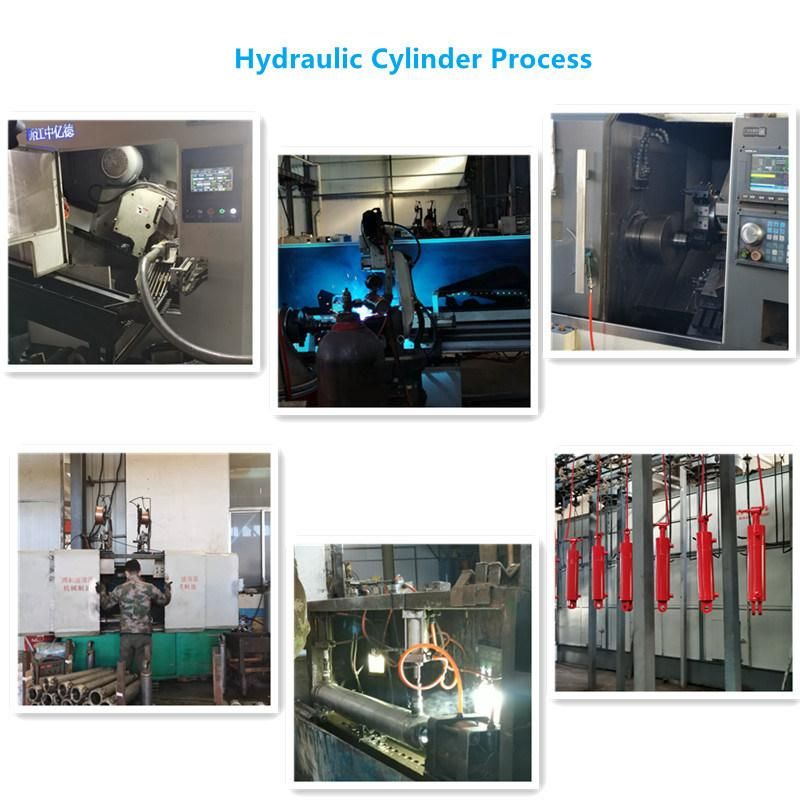

Cylinder Process


Cylinder apply

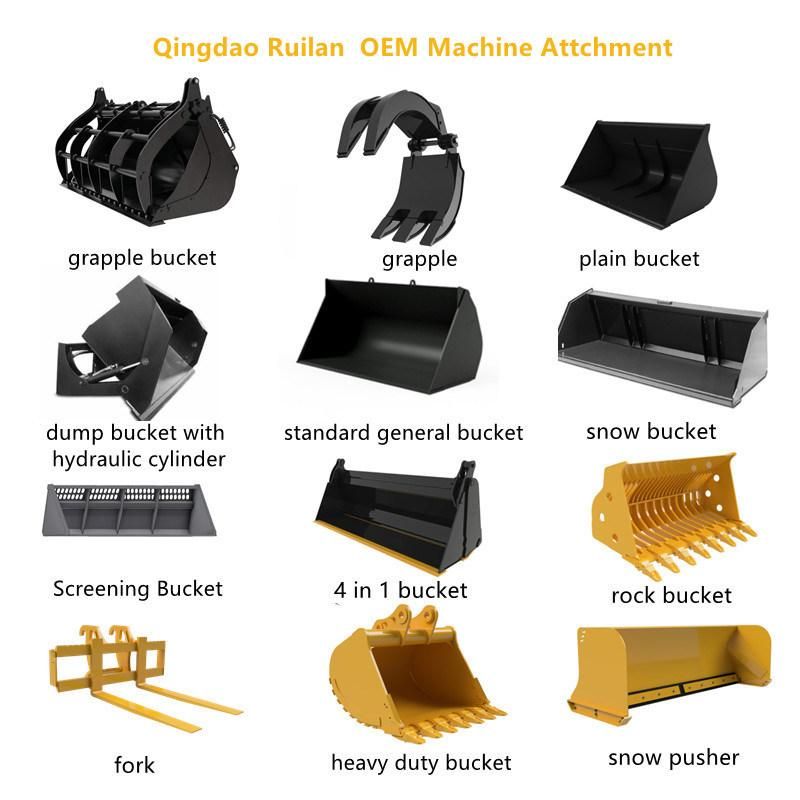

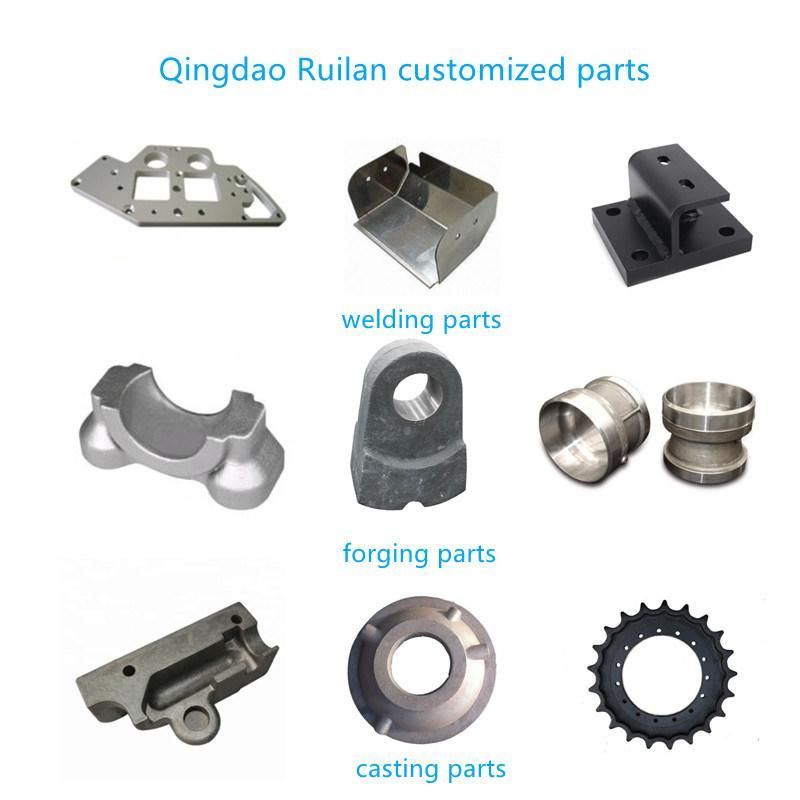

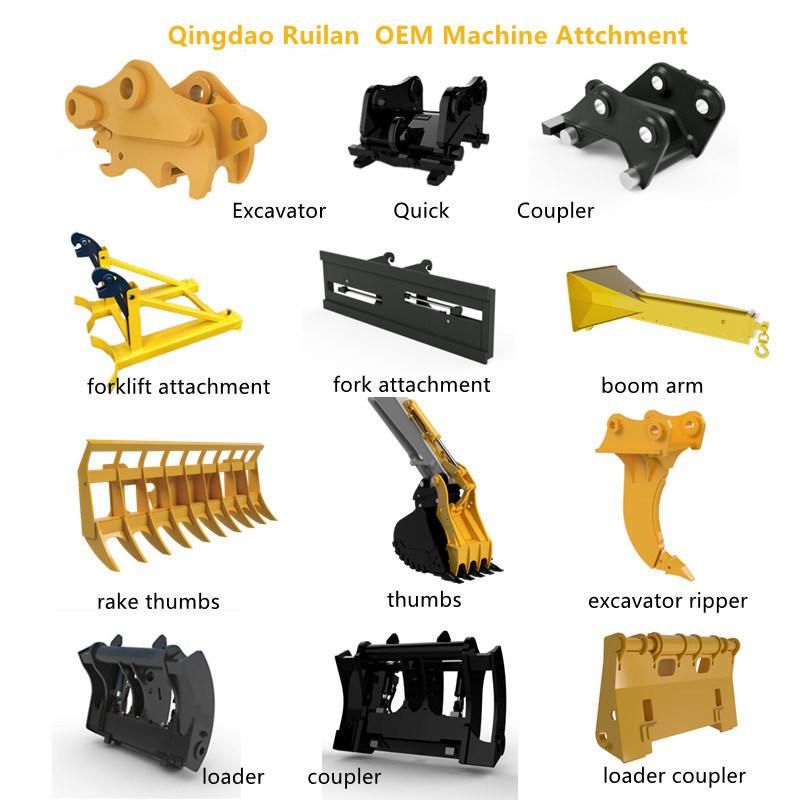

Company Other Products Photos

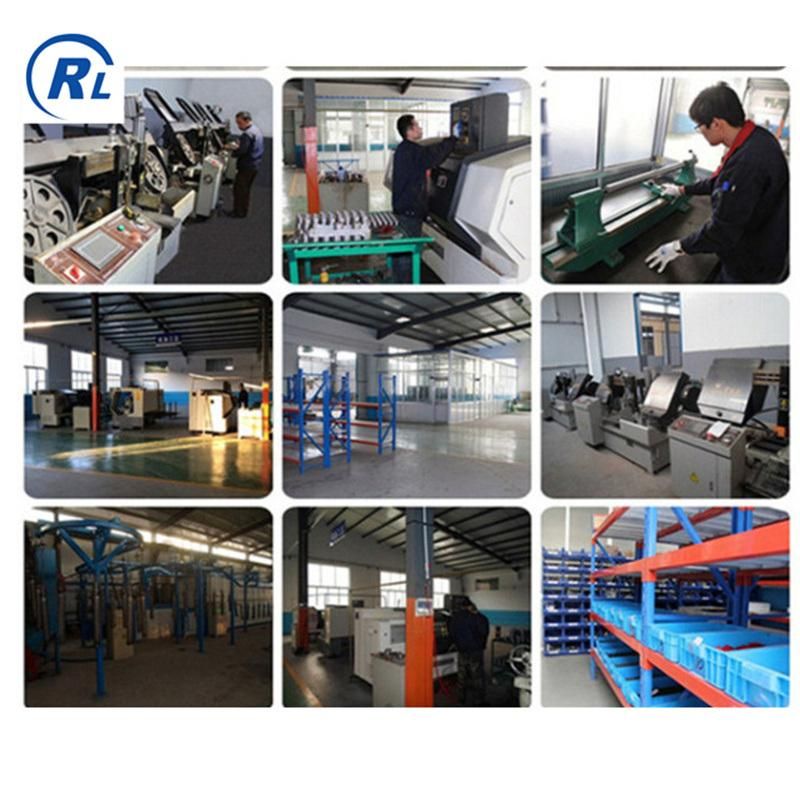

About Us

Qingdao Ruilan is specialized in producing and designing hydraulic Cylinders of all sizes and types,and we costumize welding casting forging parts , agricultural machinery parts, machine attachment and so on, Ruilan customize you want! . Ruilan has been serving customers for 15 years.  Ruilan commite  to quality, quick response, professional design, on time delivery, and competitive prices.
