Basic Info.

Model NO. HSD Specification EN253, EN448, EN728, ISO1133, ISO8501-1. ISO9001 Trademark HSD Origin Qingdao China HS Code 84778000 Production Capacity 1000unit/Year

Product Description

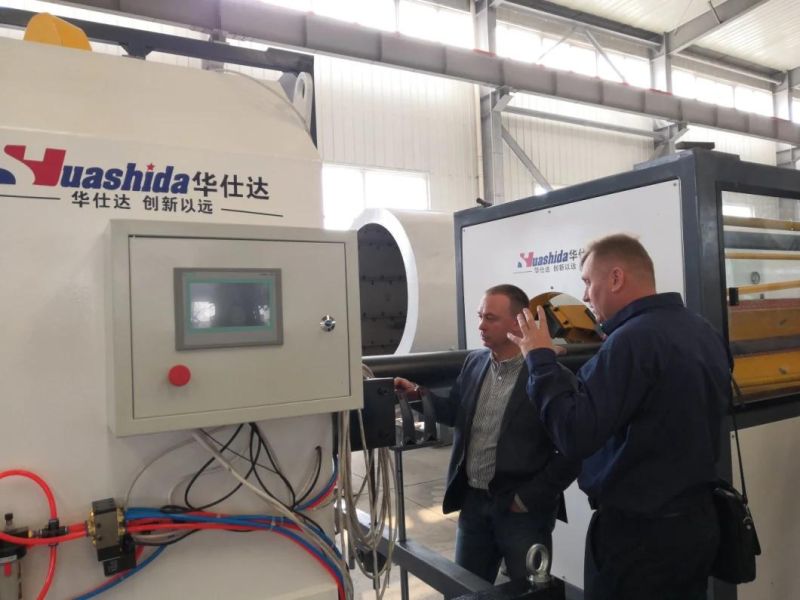

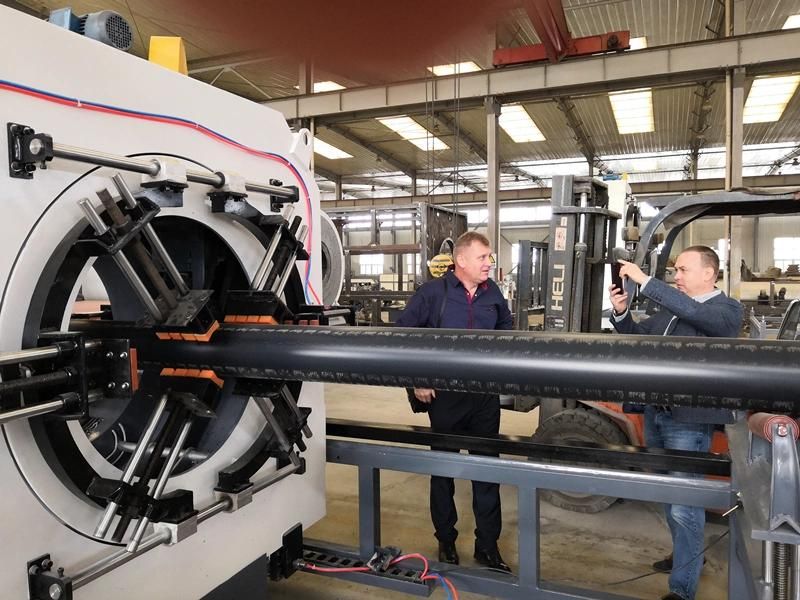

Plastic PVC/PE/PP Pipe Cutting Machine Planetary Cutter

1. The Planetary Cutter Machine for plastic pipes is auxiliary to plastic extruder, used for automatic production line PVC PE PC pipes, profiles and so on.
2. Imported inverter, PLC program controller controls all mechanical drives.
3. It can product movements of motors, electrical appliances.
4. It can balance weight in cutting, and make it more stable.
5. Its applicability is wide and its usages are convent.


Pre-Insulated Pipe Casing HDPE Pipe Extrusion Line-Vacuum Calibration
The line is an integration design composed by extrusion, vacuum calibrating, cooling, pulling, cutting, stacker. Great performance in automatic operation, extrusion capacity, steady and service life etc. Especially compared with the line use internal pressure method, vacuum calibrating method is much better than it for stiffness, pressure resistance and surface smooth.

Vacuum calibrating method pre-insulated pipe outside casing extrusion line is the most advanced and popular machinery in the world.

Name	HSD250	HSD315	HSD400	HSD630
Cutting pipe Dia. (mm)	60-250	110-315	160-400	400-630
Saw Spec. (mm)	110*2*40T	125*2*40T	125*2*40T	150*2.2*60T
Milling cutter Spec. (mm)	80*75*25	90*75*30	90*75*35	Special
Central height (mm)	1000	1000	1000-1200	1200-1500
Product linear speed (M/min)	4	3	2.5	1.5
Cutting pipe thickness (mm)	15	20	25	30
Dimension (mm)	2500*1160*1540	3000*1260*1580	3000*1360*1540	3000*1360*1740
Weight (mm)	1200	1400	2000	2000
