• Model NO.：FFC
• Condition：New
• Customized：Non-Customized
• Model：FFC
• Name：Disc Flour Mill
• Rotary Speed：3000rpm
• Rotator Diameter：450mm
• Blade Qty：5
• Sieve Size：0.6, 1.2, 3.6mm
• Dimension：1150*755*1425mm
• Motor：11kw
• Capacity：650kg,H
• Weight：224kg
• Transport Package：Wood Case
• Specification：1150*755*1425mm
• Trademark：NO
• Origin：China
• HS Code：87000
• Production Capacity：5000

Basic Info.

Model NO. FFC Condition New Customized Non-Customized Model FFC Name Disc Flour Mill Rotary Speed 3000rpm Rotator Diameter 450mm Blade Qty 5 Sieve Size 0.6, 1.2, 3.6mm Dimension 1150*755*1425mm Motor 11kw Capacity 650kg/H Weight 224kg Transport Package Wood Case Specification 1150*755*1425mm Trademark NO Origin China HS Code 87000 Production Capacity 5000

Product Description

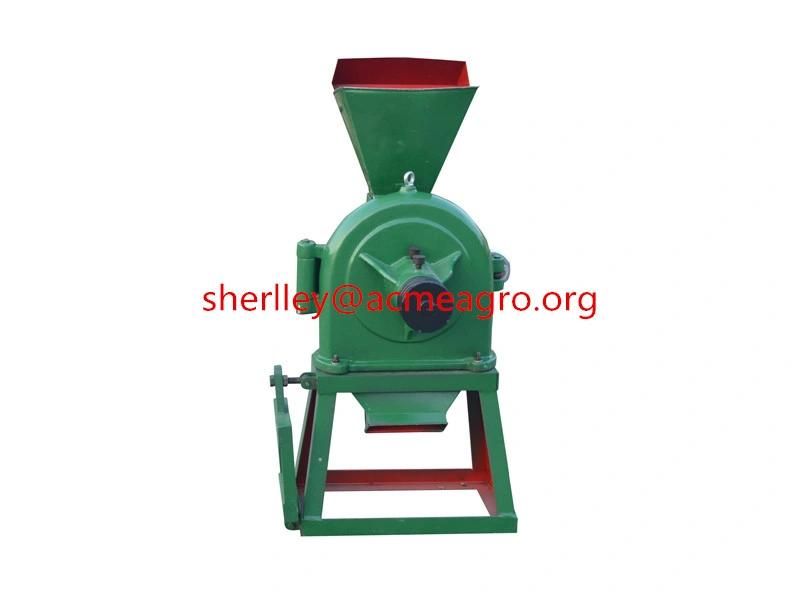

Food Machine Flour Mill FFC

Application of disc mill machine:

Our FFC series disk mill has multiple functions. At present, four types are available, ie. Models FFC -45, FFC-37, FFC-23 and FFC-15.
This disc mill machine is also popular in chemical industry, paper-making and medical industry can be used to crush various kinds of chemical raw materials, exercise beating in paper making and process Chinese herbal medicine. And can also be used to crush fresh fruit, fresh sweet potato and soaked soybeans, which contain a great deal of moisture content.

Technical parameters of disc mill machine:

Model	FFC-15	FFC-23	FFC-37	FFC-45
Rotary speed	9000rpm	5800rpm	3600rpm	3000rpm
Rotator diameter	150mm	230mm	370mm	450mm
Blade QTY	3	4	4	5
Knuckle gear QTY	8	8	8	12
Circles of square gear	1	2	2	2
pitch	9	19	16.5	16.5
Sieve size	0.6, 1.2mm	0.6, 1.2, 3.6mm	0.6, 1.2, 3.6mm	0.6, 1.2, 3.6mm
Motor	1.1kw	3kw	7.5kw	11kw
Dimension	565*305*610mm	800*500*1000mm	1050*680*1325mm	1150*755*1425mm
Capacity	55kg/h	180kg/h	450kg/h	650kg/h
Weight	18kg	65kg	158kg	224kg
