Basic Info.

Model NO. 500 type Drilling Way Compound Type Crawler Model 500 Max. Drill Depth 400m Drill Diameter 110-450mm Diesel Engine 93kw (Cummins) Working Air Pressure 1.05-3.45MPa Air Consumption 16-85m³/Min Drill Rod Length 3m Usage Water Well Power Type Diesel Transport Package Standard Exporting Packing Specification / Trademark GLORYTEK Origin Beijing, China

Product Description

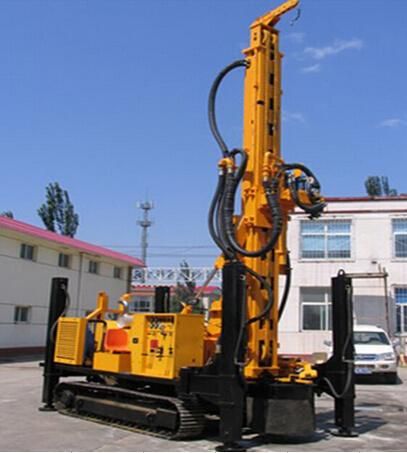

500 type Top-driving full-hydraulic water well drill rig



1.Technical Parameter

Model:500

Max. drill depth:400m

Drill diameter:110-450mm

Working air pressure:1.05-3.45MPa(Provide air compressor technical parameter if pneumatic hammer is in use)

Air consumption:16-85 m³/min(Provide air compressor technical parameter if pneumatic hammer is in use)

Drill rod length:3m

Drill rod diameter:89mm;108mm; 114mm;140mm;

Reverse drill rod:108mm;127mm(Optional)

Axial pressure:  5t

Lifting force:  20t

Slow lifting speed:4.2m/min

Slow feed speed:5.2m/min

Fast lifting speed:30m/min

Fast feed speed:37m/min

Rotation torque:8500Nm;4250Nm

Rotation speed:0-90r/min;0-180r/min

High landing leg travel distance:1400mm(Optional)

Penetration rate:10-25m/h(Down hole drilling with hammer)

Travel speed:2.5Km/h

Grade ability:21°

Weight:11.5 t

Whole dimension:6.5×2.1×2.8m

Application formation: Unconsolidated layer or bedding rock

Drill method: Mud or downhole hammer drilling

Hammer: Intermediate or high air pressure series
