Small Injection Molding Machine Price
Xiangtan Huaxing Material Co., Ltd.Base Info
Description
DataMax. clamping force KN 950 Max. opening distance mm 340 Space between tie bars mm 360×360 Mold height(min-max) mm 135-380 Max. daylight mm 720 Ejector force KN 25.4 Ejector stroke mm 85 Ejector quantity 5 Screw diameter mm 30 35 40 Screw L/D ratio L/D 24.5 21 18.4 Theoretical shot volume cm3 113 154 201 Plasticizing weight(PS) g 103 140 183 Injection pressure Mpa 249 183 140 Theoretical injection rate(PS) g 67.5 91.8 120 Plasticizing capacity(PS) g/s 8.3 12.5 18 Screw torque N.m 510 Max. screw rotate speed r/min 260 Injection stroke mm 160 Pump motor power KW 11 Pump pressure Mpa 16 Heating power KW 7.3 Heating zone 4 Size(L×W×H) m 4.25×1.2×1.8 Net weight t 3.2 International designation 950-280

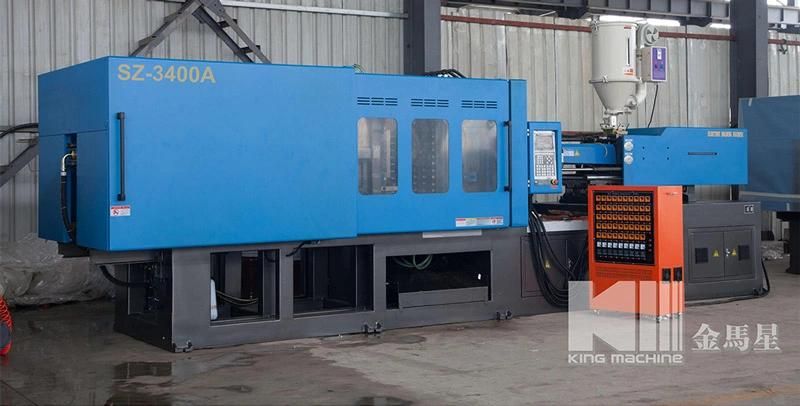

High Efficiency Energy Saving Injection Molding Machine adopts proportional pressure and flow control, the pressure and the speed can be adjusted, stable movement curve and gentle shock, the computer is imported from Industry family.The LCD displaying screen with high clarity has Chinese and English language to use.Close-loop PID temperature control with the advantage of high precision.The operating table of the injection moulding machine have two safety, one is machine safety, another is electrical safety, that ensures the operators's safety.

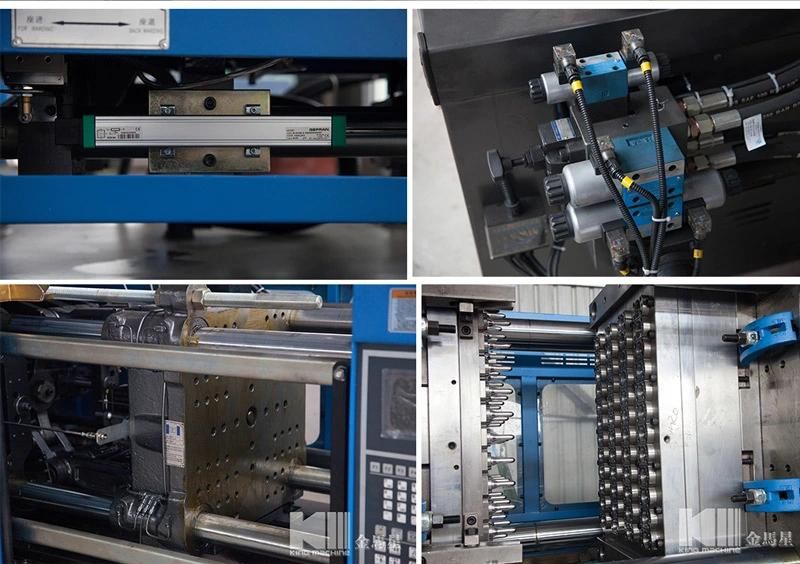

Features:
1) LCD computer control with big display screen
2) Hydraulic double proportional valve
3) Hard chrome plated high tensile strength steel tie bars
4) Generous space for fitting large moulds
5) Large opening stroke
6) Two position transducers to control Clamping and Injection
7) Four stages of injecting, independent velocity and pressure control
8) Hydraulic mould height adjustment device
9) Screw cold-start prevention device
10) Melt decompression control
11) Screw back pressure control
12) Multiple hydraulic ejection
13) Differential high speed clamping
14) Centralized lubrication system
15) Low pressure mould protection device
16) Mechanical safety interlock
17) Double electrical safety interlock
18) Oil return filter
19) Oil tank with inner stainless steel container.
DataMax. clamping force KN 4800 Max. opening distance mm 770 Space between tie bars(V×H) mm 760×760 Mould height(min-max) mm 280-790 Max. daylight mm 1560 Ejector force KN 113.4 Ejector stroke mm 195 Ejector quantity 13 Screw diameter mm 70 75 80 Screw L/D ratio L/D 22.6 21 19.7 Theoretical shot volume cm3 1346 1545 1758 Plasticising weight(PS) g 1225 1406 1600 Injection pressure Mpa 201 175 154 Theoretical injection rate(PS) g 370 423 484 Plasticising capacity(PS) g/s 60.4 71.4 83.7 Screw torque N.m 3490 Max. screw rotate speed r/min 150 Injection stroke mm 350 Carriage push force KN 120.6 Pump motor power KW 45 Pump pressure Mpa 16 Heating power KW 28 Heating zone 5 Size(L×W×H) m 7.5×2.1×2.45 Net weight t 20 International designation 4800-2710

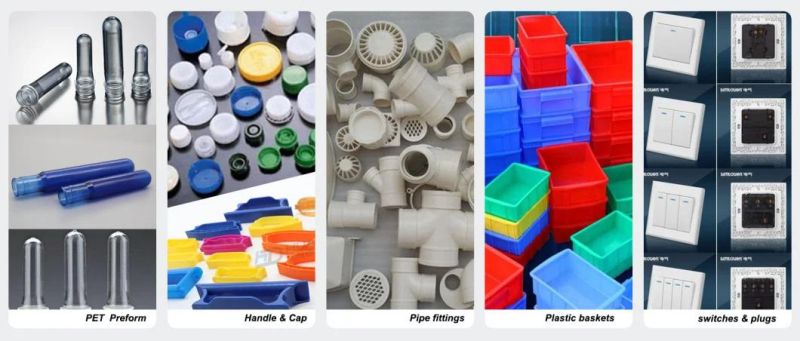

Injection Molding Machine can have a molding complex, the size is accurate or plastic with metal insert of the fine and close texture, are widely used in national defense, electrical, automotive, transportation, building materials, packaging, agriculture, Medical, Household, Appliance sectors and People's Daily life. Today with the rapid development of plastic industry, injection molding machine no matter in quantity or variety occupies an important position.
Compnay introduction :
Zhangjiagang king machine Co., Ltd .was founded at 1995,and starting with beverage machinery.It is located at Zhangjiagang city Nanfeng industrial town,We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry .
Our Main products including: Pure/mineral water and purified water producing line, carbonated beverage producing line, 3 gallons& 5gallons producing line. Flat and tube UHT device, and CIP system. All the products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect
Our Services:
1. Well-trained & experienced staff are to answer all your inquiries in English and Chinese
2. 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
3. 12 Months guarantee and life-long technical support.
4. Your business relationship with us will be confidential to any third party.
5. Good after-sale service offered, please get back to us if you got any questions.
