Handheld Laser Engraver for Metal
Xiamen Teyate Aluminum Co., Ltd.- Laser Visibility：Invisible
- Applicable Material：Metal
- Cooling System：Air Cooling
- Technical Class：Pulse Laser
- Laser Wavelength：Fiber Laser
- Laser Classification：Solid Laser
Base Info
- Model NO.：CKD-PLMD-20,30,50
- Type：Optical Fiber Laser Marking Machine
- Marking Method：Scanning Marking
- Function：Marking, Engraving and Cutting
- Laser Power：Optional: 20W,30W,50W
- Application Material：Metal and Some Non-Metal
- Marking Speed：Optional: 1-2000,1-4000,1-7000
- Shipping Date：3-5 Work Days After Payment
- Warranty：2 Years for Laser Source, 1 Year for Others
- Computer：Option, with or Without, English Lanuage
- Transport Package：Wooden Box
- Specification：CE passed, Europe, Asia, America Standard
- Trademark：CKD LASER
- Origin：Shenzhen, China
- HS Code：8486204900
- Production Capacity：200 Set,Month
Description
Computer language: English as basic, you can choose your language after receiving.Marking SoftwareEzCadLanguage: English, Chinese, Korean, Japanese Control BoardBJJCZOriginal newest version GalvonameterDigital scaneheadSpeed: 1-2000/1-4000/1-7000/1-10000 CDwithstandard attchment, every type withwith marking software insideTraining videowithsend traning video link after receiving machine Focusing toolewithone LED on machine or two LED on galvanometerhelp you find right focus easily, standard attchment, every type with
TECH PARAMETERS
ADVANTAGE
* Multi material mark, metal and non-metal.
* Muil funstion, can mark series number, logo, bar code, QR and so on.
* Fast speed, improve work effeciency.
* Easier foucs by focus holder.
* Moving marking by trigger, marking big material is easy.

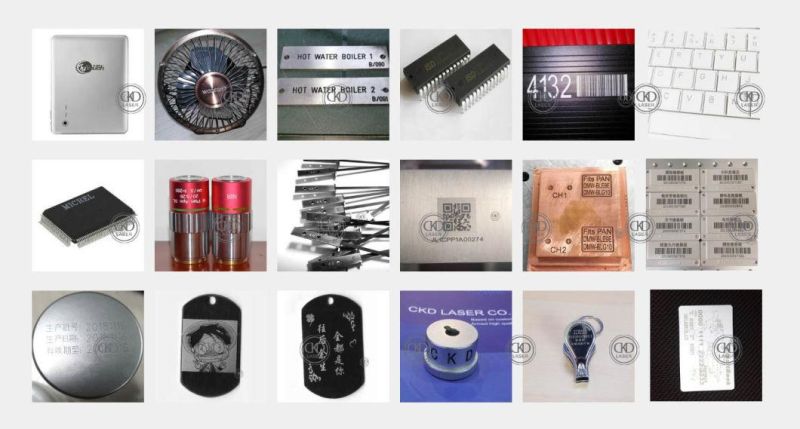

MARKING SAMPLES SHOW
PACKING & SHIPPING
* SAFETY PROTECTIVE INNER PACKING
* WOODEN BOX OUTSIDE PACKING
* Shipping by air, by sea, by car, by train and by combined transport, send to all over the world
CONTACT US / ONLINE SERVICE:
Please send your inquiry or place order with certain configuration directly by following dialog box, we will reply you immediately.
Please tell us your application if you need configuration suggestion
TECH PARAMETERS
| Parameters | Unit | Data | Data | Data |
| Type | CKD-PLMD-20 | CKD-PLMD-30 | CKD-PLMD-30 | |
| Laser Average Output Power | W | 21±1 | 31±1 | 51±1 |
| Laser Type | Fiber Laser | Fiber Laser | Fiber Laser | |
| Central Wavelength | nm | 1064 | 1064 | 1064 |
| Repetition Frequency | KHz | 20-80 | 30-80 | 50-100 |
| Beam Quality | M2 | <1.6 | <1.6 | <1.6 |
| Focus Spot Diameter | mm | <0.01 | <0.01 | <0.01 |
| Max. Power of Single Pulse | mj | 1±0.05@20KHz | 1±0.05@30KHz | 1±0.05@30KHz |
| Life-span of Fiber Laser Module | hrs | ≥100,000 | ≥100,000 | ≥100,000 |
| Marking Speed of Single Line | mm/s | <9000 | <9000 | <9000 |
| Temperature of Operation Environment | ºC | 0-40 | 0-40 | 0-40 |
| Cooling Mode | Air Cooling | Air Cooling | Air Cooling | |
| Control board and software | EzCad2 | EzCad2 | EzCad2 | |
| Computer Operation System | Windows 7/8/10 | Windows 7/8/10 | Windows 7/8/10 | |
| Computer Requested | Choosable | Choosable | Choosable | |
| Power Source Requirement | 90-240V/50-60Hz/2KVA | 90-240V/50-60Hz/2KVA | 90-240V/50-60Hz/2KVA |
ADVANTAGE
* Multi material mark, metal and non-metal.
* Muil funstion, can mark series number, logo, bar code, QR and so on.
* Fast speed, improve work effeciency.
* Easier foucs by focus holder.
* Moving marking by trigger, marking big material is easy.
MARKING SAMPLES SHOW
PACKING & SHIPPING
* SAFETY PROTECTIVE INNER PACKING
* WOODEN BOX OUTSIDE PACKING
* Shipping by air, by sea, by car, by train and by combined transport, send to all over the world
CONTACT US / ONLINE SERVICE:
Please send your inquiry or place order with certain configuration directly by following dialog box, we will reply you immediately.
Please tell us your application if you need configuration suggestion
