Details for 90mm-1315mm DWC Double wall corrugated pipe machines

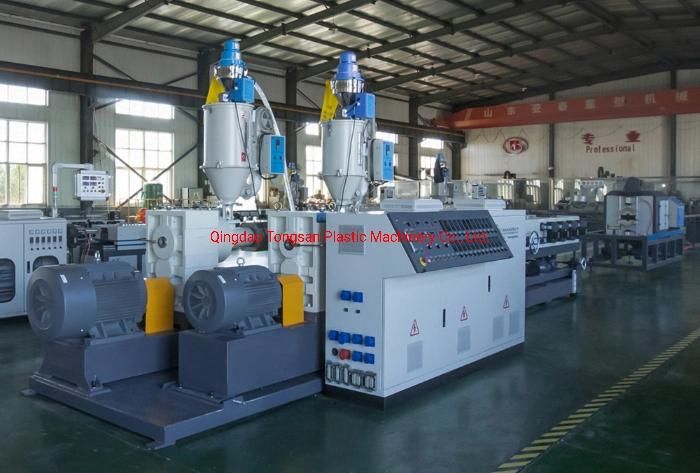

1,Extruder for Double wall corrugated DWC pipe machine
Quantity: two sets,
Application: one is for outer wall,another is for inner wall.
Model: SJ90/30, SJ75/30
Extruder type: single screw extruder
Feeding: auto feeding with drying

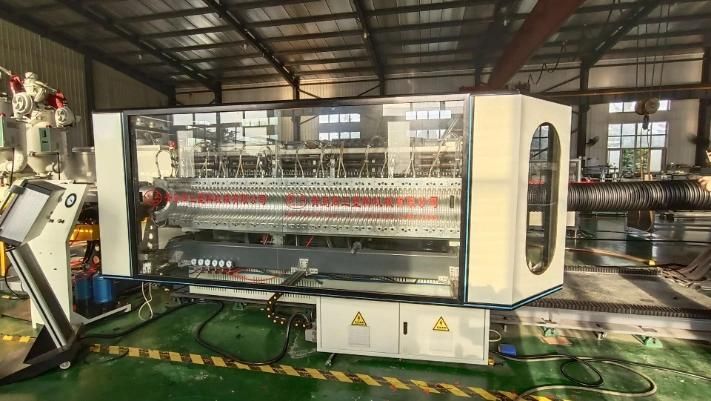

2,Forming machine for DWC double wall corrugated pipe machine:

vacuum cooling type, speed 2-6m/min, o for 90-315mm
Slide rail: Equipped with silde rail processed under special way, and process high strength and good abrasion resistance.
Cooling systerm: High efficency cooling systerm could be gurantee the quality of forming.
Lubrication systerm: Equipped with centralized lubrication device, automatic quantitative lubrication.

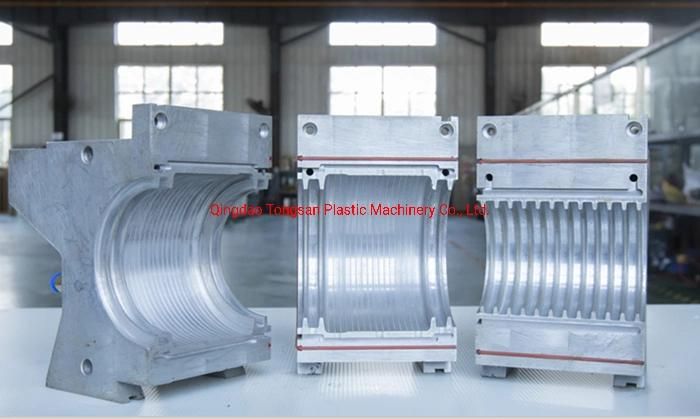

3,Mold for DWC double wall corrugated pipe machine

Based on the tube type requirements of the corrugated pipes, we have developed a vacuum forming system to ensure the production of various shaped pipes.Our single wall corrugated pipe machines can produce fixed length inlet pipes and drains for washing machines, and can produce shrinkable pipes with joints ,round and flat  prestressed  plastic corrugated pipes,etc.

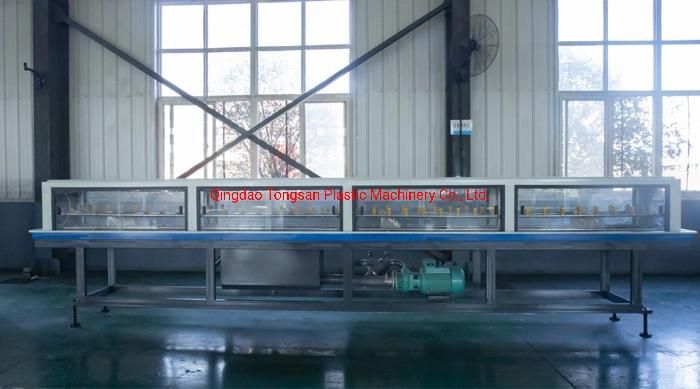

 4,Water cooling tank
Better cooling effect in order to improve the production speed
5,Automatic chipless cutting machine

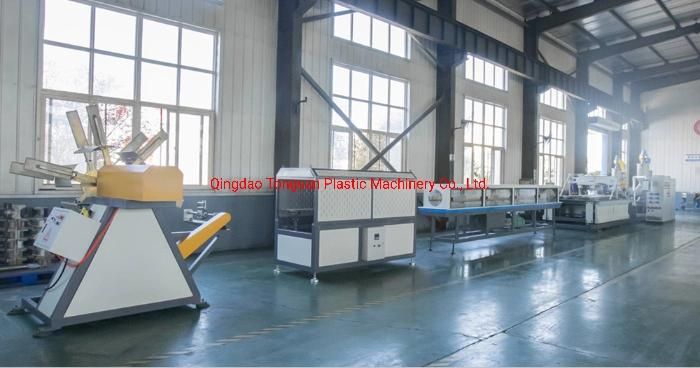

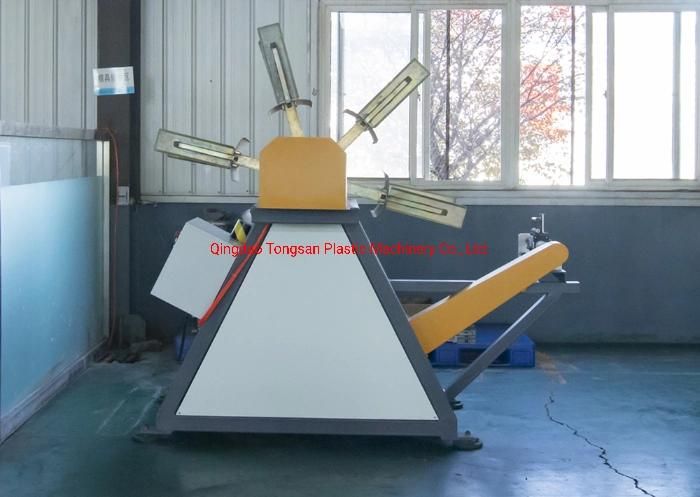

6,Automatic winder device
We can provide the whole line for corrugated pipe making machine.Such as ,the automatic corrugated pipe winding machine which adopt polishing rod wire traverse for winding displacement.The automatic cutting machine is  a  special cuter for the car harness single wall corrugated pipes.The automatic tapping machine is special used for car harness and electrical wire protective conduit.The automatic shrinkable device for the single wall corrugated drain pipe.
We provide dies, heater,thermocouple, high temperature plug ,guiders,  and other related necessary tools of very high quality and long time usable for producing of different types of single wall corrugated pipes.Machine operation related tools (complete set) for opening and closing of extruder screw, head & other related parts will have to be supplied along with the machine.


7,Electrical cabinet
You can choose the  PLC type controller
1,Main power will  be controlled by PLC
2,the equipment will adopt industrial computer or operation display (with touch screen facility) and programmable logic control (that is IPC+PLC mode) to realize the line's synchronized running and the independent operation including alarm system.
3,The production operation and the parameter set including zone temp setting and display will be carried out through the touch screen display.
4,The production state collection and progress control will be realized on PLC, such as the motor start-up and stop, the given signal, Current, the motor speed and so on.
5,The Display will communicate with PLC, which can realize the production operation, the warning display, the line's emergency and other functions.
6,PLC based Synchronising system for the  extruder and forming machine.
7,The display will be installed in the electrical cabinet, rationally and gracefully.
8,PLC (programmable logic control) will adopt high-quality Siemens series products
9,The machine will also adopt AC converters, air-switch, contactor and other main low-pressure products of Siemens products or other reputed suitable brand.
10,The machine will also adopt RKC, Japan temperature measuring unit or other suitable reputed brand.
11,The heat power control will have to be use by solid-state relays.
12,The power can be supplied from three-phase and five-wire syste

We have this machine in our stock now, please come and check our machine running.We will provide good quality, good service and good price for the complete turnkey project. Our machine testing running is free.
