Hydraulic Drifter Diesel Power Borehole Constructio Blasting Rig D100ya2-2

Wenzhou Daba Machinery Co., Ltd.

Base Info

Description

Bore diameter(mm)

90-130

Bore depth(m)

30

Walk speed(km/h)

2

Once promotion(mm)

2000

Grade ability (°)

30

Air pressure(Mpa)

0.7-1.4

Chassis ground clearance(mm)

260

Air consumption(m³/min)

7-15

Skid pitch(°)

100

Host Power (Kw)

33

Skid tilt swing (°)

L35,R10

For rock(F)

6-20

Skid compensation(mm)

900

Dimension(L*W*H)(mm)

4300*2130*2160

Weight(Kg)

2900

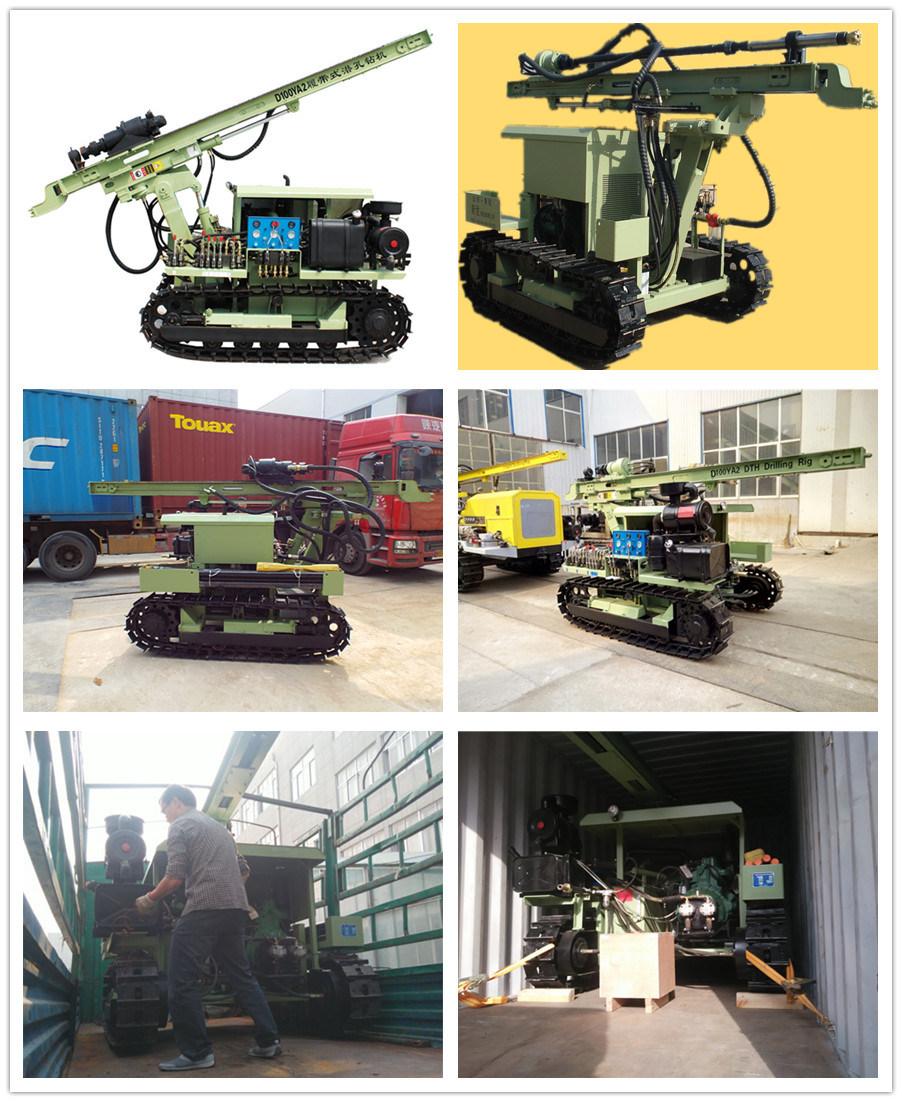

       D100YA2-2Fcrawler hydraulic drilling rig, adopts new type hydraulic rotary motor, hashigh rotary speed, large torque and low failure rate. This rig has low airconsumption, convenient for shifting holes, uses air filter and oil filtertotalthree-stage filters to reduceengine wearing , increase working life of the diesel engine. The rig structureis compact, the minimum moving radius is 2.8m, and the skid mast has compensationfunction. when drilling, the skid mast supported on the ground that guarantee gooddrilling stability.

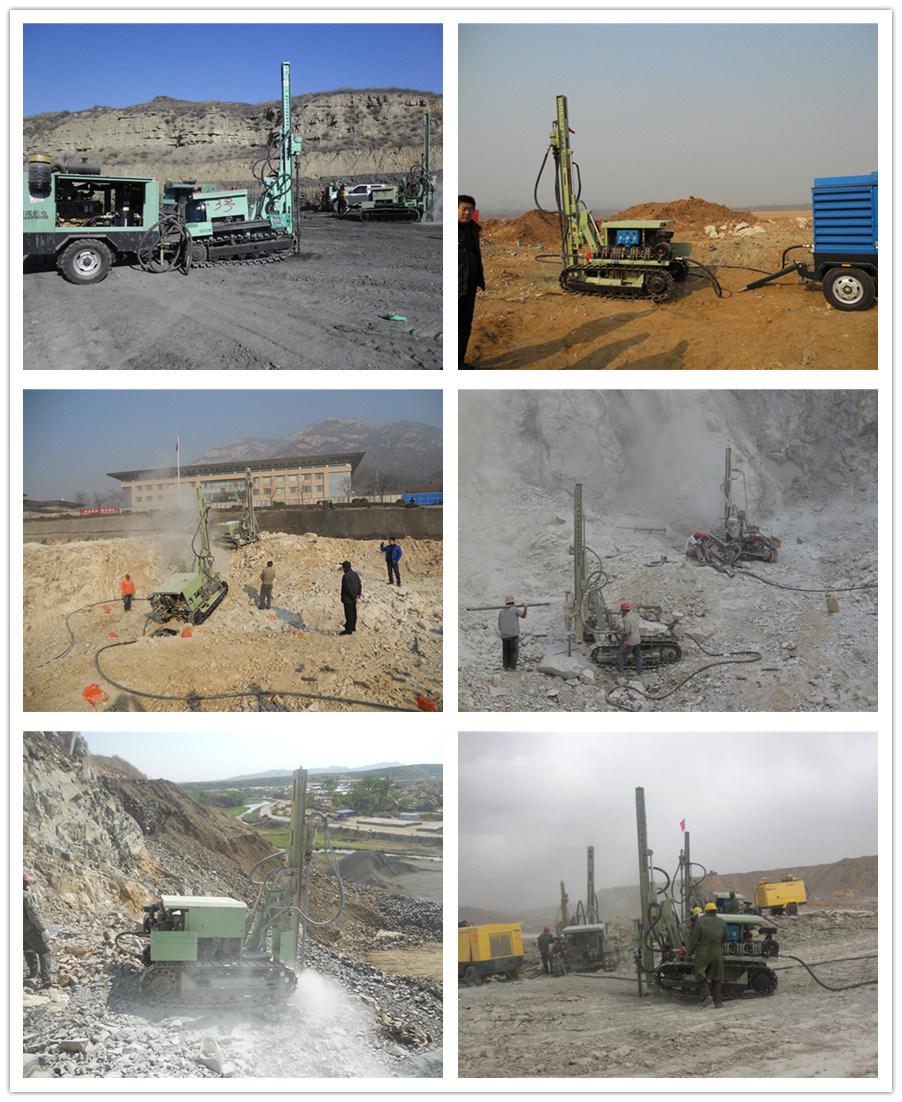

The drilling rig is mainly capable for open mining, water conservancy, power plants, roadbuilding and other rock blasting holes drilling .
