Basic Info.

Model NO. BRD Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized  Line Speed 25m/Min Application PP-R, PE-Rt, Pb Pipe. Original China Transport Package Wood Pallet and PE Film Specification PE Trademark BEIER MACHINERY Origin China HS Code 84772090

Product Description

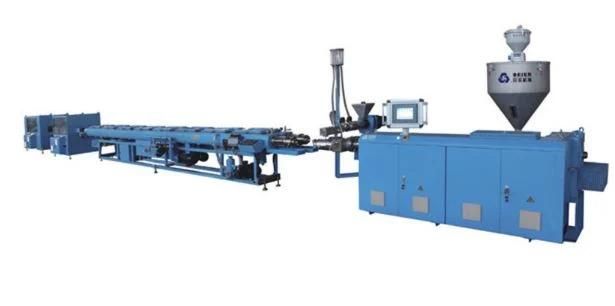

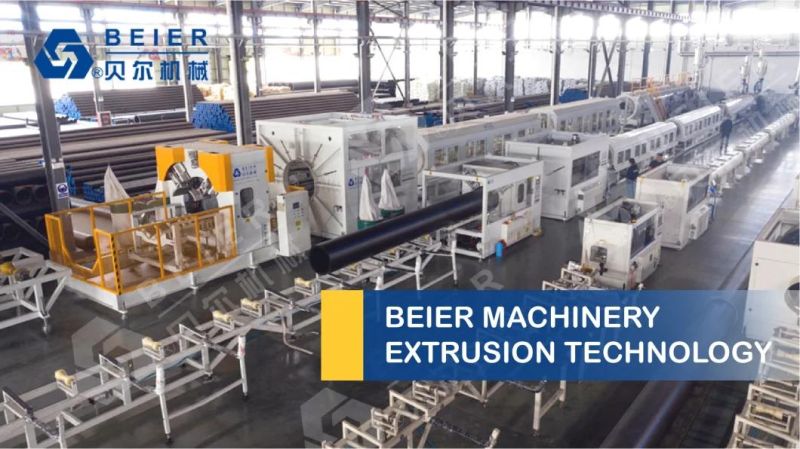

High speedφ20-63mm HDPE,PPR Pipe double-strand Extrusion Line

High efficiency PP-R, PE-RT, PB pipes are widely used in the uptown apartment and village cables protection, hot water supplying, house heating. This production line adopts high efficiency single screw extruder, equipped with the Siemens PLC controlling system. It can ensure the whole line automatic controlling of high capacity, stable extruding with the suitable changing of different units could realize the production job of PP-R, PE-RT, PB pipe.

The advantages are as following:

 a.    It's for high speed extruding PE, PPH, PPR, PPB, PERT and PB etc, line speed is up to 25m/min.

b.    L/D=38, double mixer and barrier screw, which can ensure 100% plasticization before going into die, with spiral groove on feeding part, it increases 30% of productivity.

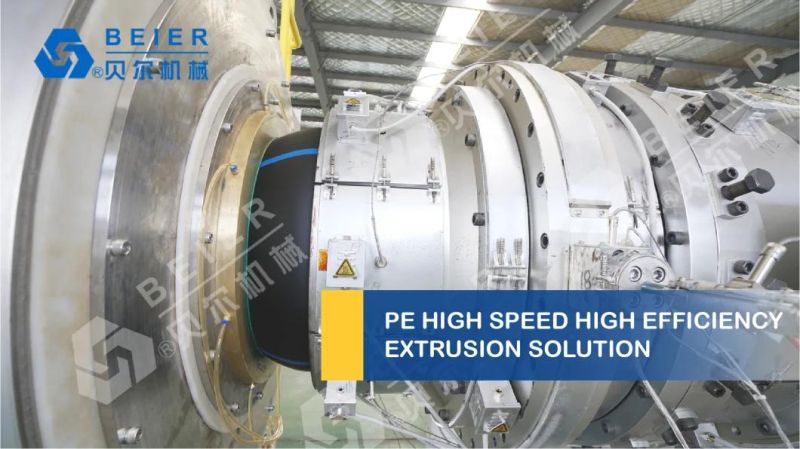

c.    Die with spiral mandrel, it ensures no delay in the flow channel which can improve pipe quality.

d.    Particular disc design on calibration sleeves which ensures high speed extrusion.

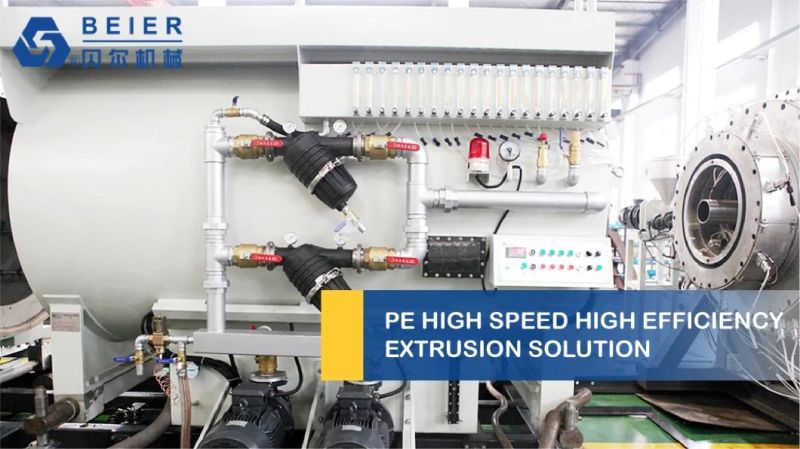

e.    Double-strand vacuum tank is controlled individually, which makes convenient operation as single one.

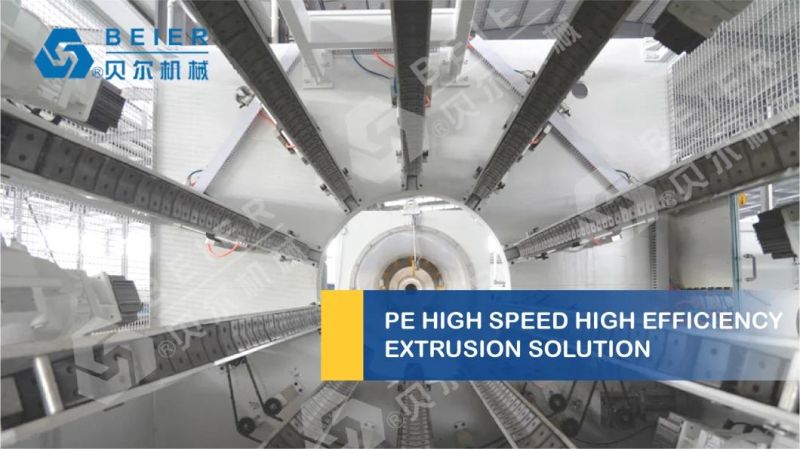

f.     Double haul-off is also controlled individually which makes convenient operation as single strand, additionally, with the upper caterpillar belt stop device, to ensure roundness of pipe.

g.    With individual designed of chipless cutter. Driven by motor and synchronous belts which ensures normal cutting during high speed running.

 Such production line has being working perfect at the moment in Russia, Poland, New Zealand, Australia, Philippines, Malaysia and many other countries.

Main Technical Parameter

Model	Pipe range(mm)	Extruder model	Extruder motor power(kw)	Max.Output(kg/h)
BRD-63	Φ20-63	BRD60/38	90	450
BRD-110	Φ20-110	BRD60/38	110	500
BRD-160	Φ40-160	BRD60/38	110	500
BRD-250	Φ50-250	BRD75/38	160	680
BRD-400	Φ160-400	BRD90/38	250	1000
BRD-630	Φ280-630	BRD90/38	280	1100
BRD-800	Φ315-800	BRD120/38	315	1300
BRD-1200	Φ500-1200	BRD120/38	355	1400
BRD-1600	Φ1000-1600	BRD90/3/&BRD90/38	250+250	2000
BRD-2000	Φ1000-2000	BRD90/3/&BRD90/38	280+280	2200

Technical Parameter

Model	Pipe range(mm)	Extruder model	Extruder Motor power(kw)	Max.output(kg/h)
BRD-63	Φ20-63	BRD60/38	90	450
BRD-110	Φ20-110	BRD60/38	110	500
BRD-160	Φ40-160	BRD60/38	110	500
BRD-250	Φ50-250	BRD75/38	160	680
BRD-400	Φ160-400	BRD90/38	250	1000
BRD-630	Φ280-630	BRD90/38	280	1100
BRD-800	Φ315-800	BRD120/38	315	1300
BRD-1200	Φ500-1200	BRD120/38	355	1400
BRD-1600	Φ1000-1600	BRD90/38&BRD90/38	250+250	2000
BRD-2000	Φ1000-2000	BRD90/38&BRD90/38	280+280	2200

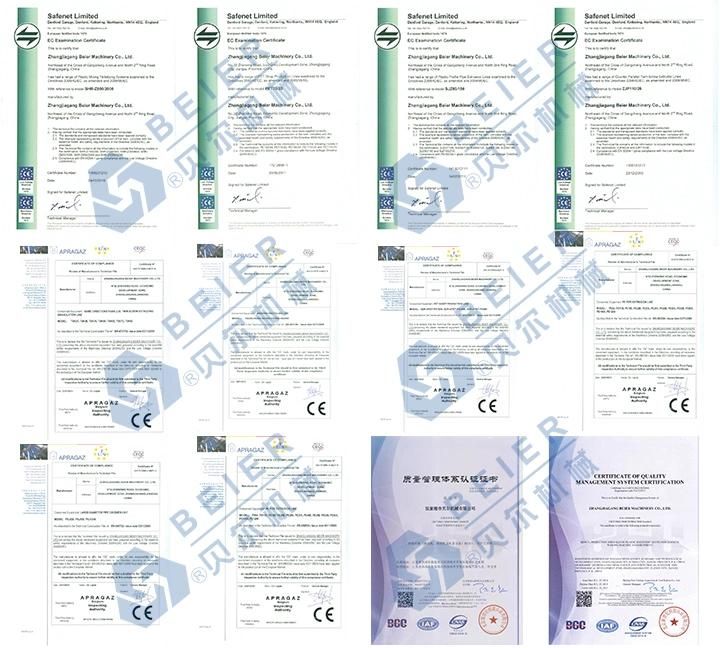

Our certification


About Jiangsu Beier Machinery:
Jiangsu Beier Machinery Co., Ltd is specialized on plastic extrusion and recycling machinery manufacturing.
We have top-ranking Research and Development technology system and rich experienced technician team.
Our vision is to offer you the best and the most appropriate plastic extrusion and recycling solution, to offer you the most reliable technically and commercial service support.

Pre-Sale and After-Sale Service:
1. Provide all the machines for the complete production according to customer's requirements.
2. Provide complete service for factory layout and other information to help customer to build the factory.
3. Provide the raw material to the customer if need.
4. Provide good service for machine installation and training, until the customers can run the machines and make stable production.
5. Provide after-sell service for all the life, except one year quality guarantee,
6. Provide good quality, good price and good service to customer. We are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
