Profile Extrusion PVC Profile Extrusion Line
Linyi Kunhong Tools Co., Ltd.Base Info
Description
Conical twin-crew extruder technical specification for Profile Extrusion PVC Profile Extrusion LineModel Screw Diameter(mm) Main Moter(kw) Output Capacity(kg/h) GSZ-45 45/100 15/18.5 60/80 GSZ-51 51/105 18.5/22 80/110 GSZ-55 55/110 22/30 120/150 GSZ-65 65/132 37/45 280/350 GSZ-80 80/156 55/77 380/450 GSZ-80A 80/173 75 500/650 GSZ-92 92/188 110/132 700/850 GSZ-95 95/196 132/160 1000 Downstream line technical specification Model Max.product width(mm) Total power(kw) Water Cooling(m³/h) GYF110 110 16 4 GYF240 240 21-32 7 GYF300 300 21-32 7 GYF400 400 21-32 7

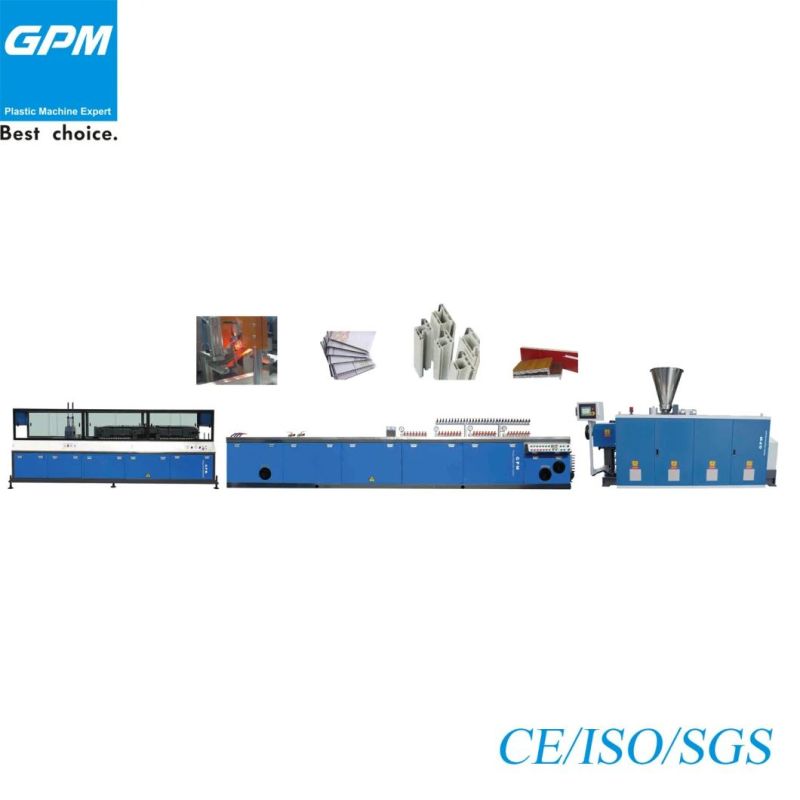

Product Display of Profile Extrusion PVC Profile Extrusion Line
Special configuration:

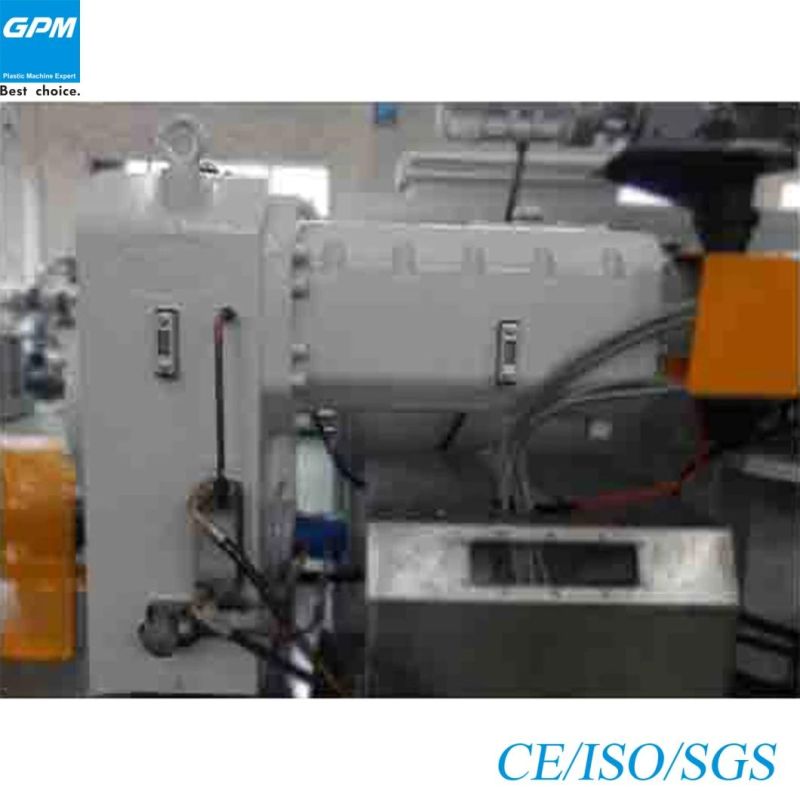

1. GearBox
High efficiency single screw extruder , high output.

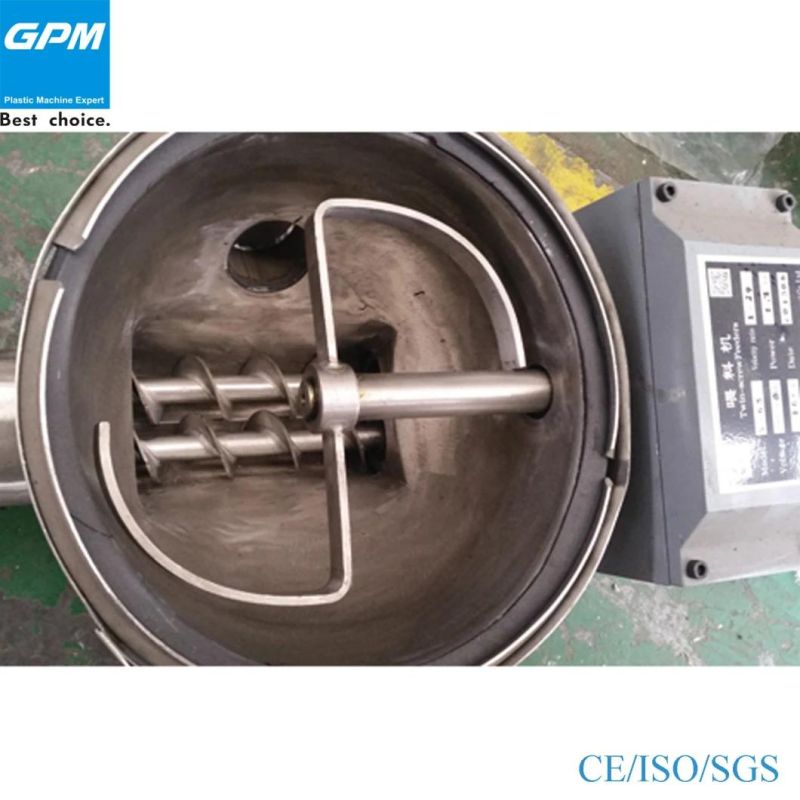

2.Feeding mechanism
Parallel twin-screw feeder, suitable for the feeding of powder and mixture .

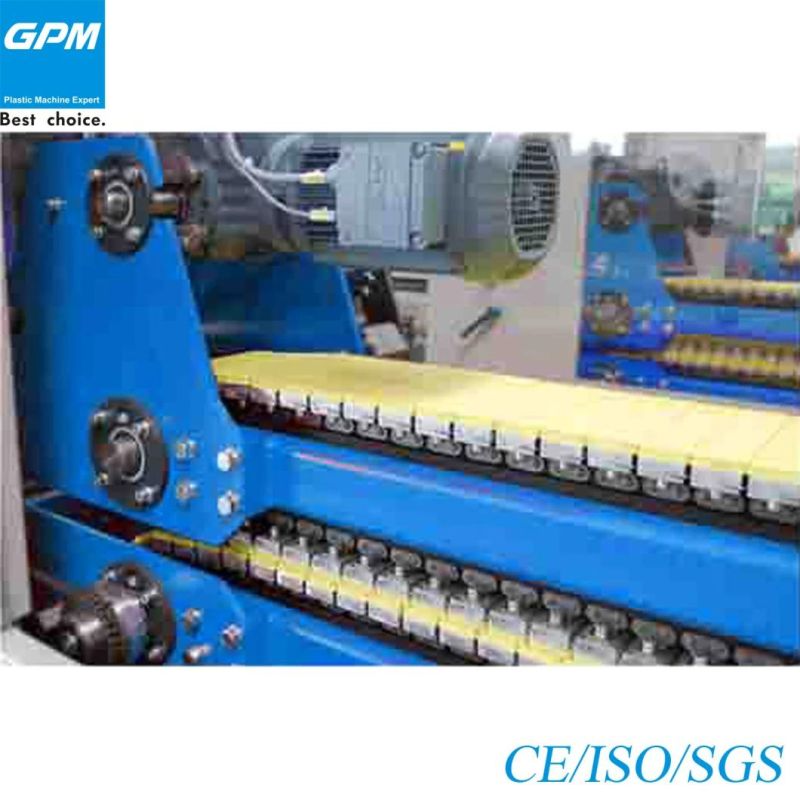

3.Haul-off
New-designed haul-off structure , strengthen the design of torque .

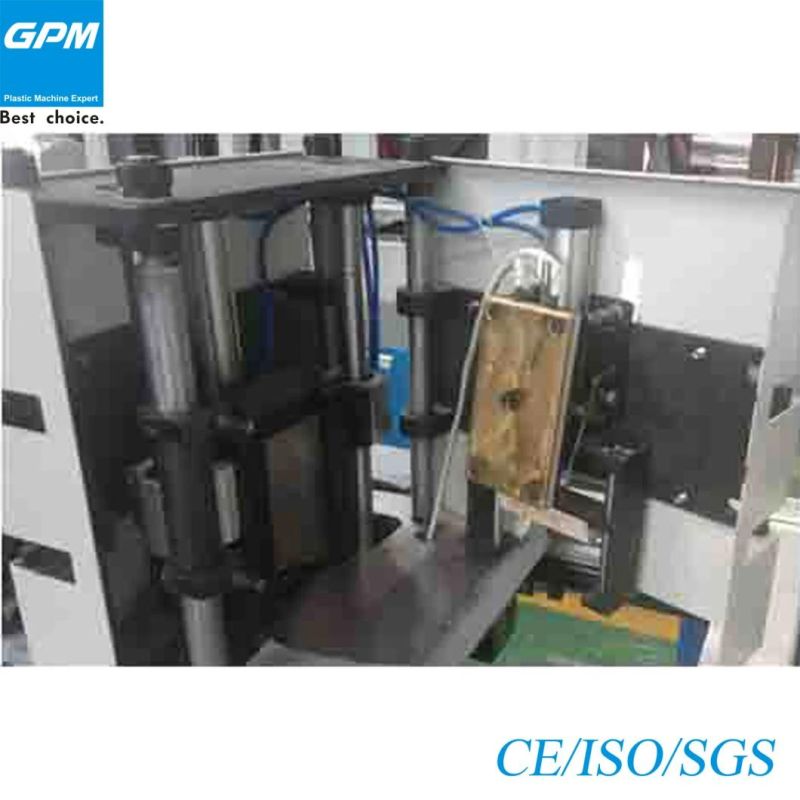

4.No-dust Cutter
High precision cutting, no dust and low noise.
Product Display of Profile Extrusion PVC Profile Extrusion Line
Special configuration:
1. GearBox
High efficiency single screw extruder , high output.
2.Feeding mechanism
Parallel twin-screw feeder, suitable for the feeding of powder and mixture .
3.Haul-off
New-designed haul-off structure , strengthen the design of torque .
4.No-dust Cutter
High precision cutting, no dust and low noise.
