Core Drill Rig Water Well Drilling Rig Xyx-3

Tangshan Jiasun Import and Export Co., Ltd.

Base Info

Description

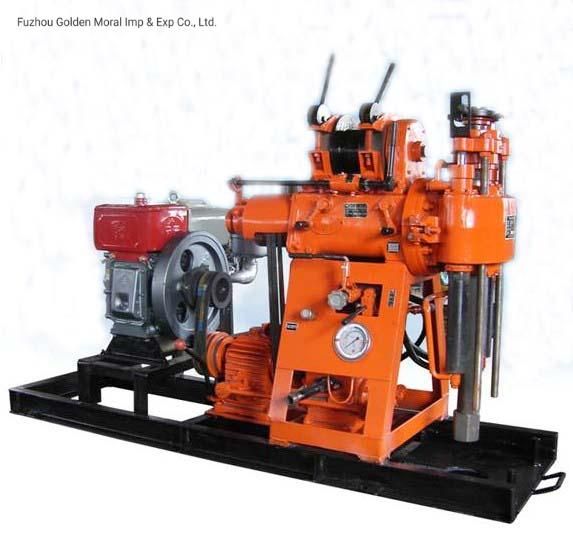

0.7MpaCore Drilling Rig XY-150:
Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.With hydro-automatic feeding device, and high drilling efficiency.Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.Close levers, convenient to operate, safe and reliable operations.Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.

Model	XY-150Y
Drilling depth	150m
Maximum open hole diameter	220mm
End hole caliber	75mm
Drill rod caliber	50mm
Drilling angle	90°~75°
Drill weight(No include power)	560kg

Core Drill Rig Water Well Drilling Rig Xyx-3

Core Drill Rig Water Well Drilling Rig Xyx-3

Core Drill Rig Water Well Drilling Rig Xyx-3

Core Drill Rig Water Well Drilling Rig Xyx-3

Category

PackagingPrinting

Tools & Hardware

Manufacturing & Processing Machinery

Lights & Lighting

Industrial Equipment & Components

Health & Medicine

Auto, Motorcycle Parts & Accessories

Recommended

Super Quality Manufacture Borehole Water Well Drilling Rigs
Unity machine parameterDrilling depth10-230mMaximum open hole caliber260mmEnd hole caliber75mmDrill rod caliber50mmDrilling angle90~75Drill weight (No include power)510 560kgUnity machine dimensions2.5×1×1.3 2.5×0.9×1.3mSpindlespindle speed142,285,570r/minSpindle stroke450mmH
Man Portable Borehole Core Drill Rig (YZJ-180)
HoistSingle rope lift force2500Single rope to enhance speed0.12-0.95m/sReel diameterφ140mmRope diameterφ12.5mmRope capacity35m
DTH Portable Borehole Rock Drilling Rig for Sale
1800KG
Hing-Cost Performance Hfp600 Man Portable Drilling Rig with CE Certificate
Overview Product DescriptionProduct ParametersWorking SiteCompany ProfileFAQ1. Are you a trading company or a manufacturer?We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc.
DTH Drilling Machine Pneumatic
ModelHole DiameterHole DepthWorking PressureAir ConsumptionRemark(mm)(m)(MPa)(m3/min)HQZ7060--80≥150.5-0.7≥3.53kwHQZ9080--100≥200.5-0.7≥64kwHQZ10080--100≥200.5-0.7≥64kwHQZ100B80--100≥200.5-0.7≥64kwHQZ120B80-100≥200.5-0.7≥65.5kwHQZ145B90-130≥500.7-1.4≥127.5kwHQZ155
200m Depth Soil Investing Mining Borehole Water Well Core Drilling Rig Machine
Drilling depth190mMaximum open hole caliber220mmEnd hole caliber7546mmDrill rod caliber5042mmDrilling angle90~75°Drilling rig weight (Exclude diesel engine)610kgUnity machine dimensions2.1*0.9*1.3mSpindleSpindle speed130,300,480,730,830,1045 r/minSpindle stroke450mmHoistMax. Lifting capacity wit

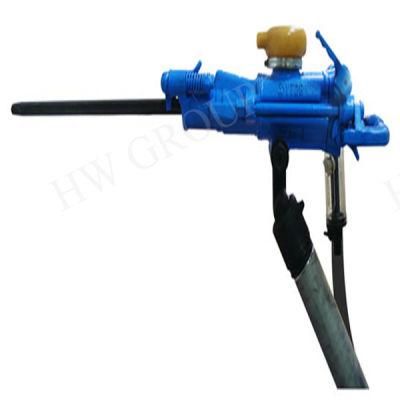

Yt28 Air Leg Hand Held Pneumatic Rock Drill
