• Model NO.：OMV hydraulics motor
• Type：Hydraulic Motor
• Usage：Hydraulic Oil
• Motor Flange Shape：Square and Rhombus Flange
• Application：Plastic Machine, Agriculture Machine
• Auxiliary Components：Oil Temperature Gauge
• Hydraulic Actuator：Hydraulic Motor
• Hydraulic Power Units：Vane Pump
• Warranty：One Year
• Motor Material：Cast Iron
• Processing：Forging & Cutting &Phosphating
• Motor Shafts：Straight, Splined and Tapered
• Transport Package：Industrail Plastic Bag+Carton
• Specification：CE, ISO9001
• Trademark：blince
• Origin：Guangdong
• HS Code：8412291000
• Production Capacity：6000

Basic Info.

Model NO. OMV hydraulics motor Type Hydraulic Motor Usage Hydraulic Oil Motor Flange Shape Square and Rhombus Flange Application Plastic Machine, Agriculture Machine Auxiliary Components Oil Temperature Gauge Hydraulic Actuator Hydraulic Motor Hydraulic Power Units Vane Pump Warranty One Year Motor Material Cast Iron Processing Forging & Cutting &Phosphating Motor Shafts Straight, Splined and Tapered Transport Package Industrail Plastic Bag+Carton Specification CE, ISO9001 Trademark blince Origin Guangdong HS Code 8412291000 Production Capacity 6000

Product Description

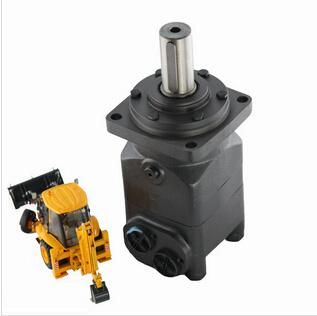

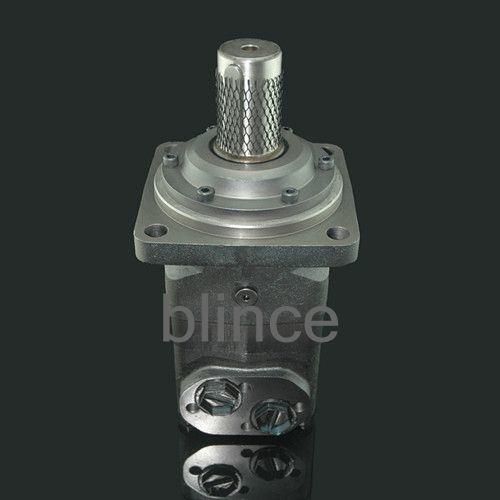

                  low speed large torque hydraulic motor(OMV315cc-1000cc)

OMV series motor adapt the advanced Geroler gear set designed with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.

Flange:
1) 4-Ø18 Square-flangeØ200, pilot Ø160×11
2) 4-Ø18 Wheel-flange Ø224,pilot Ø180×10

Drain shaft:
1) Shaft Ø50 , parallel key 14×9×70
2) Shaft Ø53.975, splined key 16-DP8/16
3) Shaft Ø53.975, splined key 16-DP8/16
4) Shaft Ø57.15, parallel key 12.7×12.7×57.15
5) Cone shaft Ø60, parallel key 16×10×32
6) Cone shaft Ø60, parallel key 14.308×14.308×50.8

Port and drain port:
1) G1 Manifold 4×M12, G1/4
2) M33×2 Manifold 4×M12, M14×1.5
3) 1-5/16-12UN, 9/16-18UNF
4) G1,G1/4
5) M33×2, M14×1.5
6) 1-5/16-12UN(18),7/16-20UNF(12)

2,Packing details of Blince OMP Hydraulic motors

                             1,sale packing contians carton or wood case
                             2,interior packing is high quality film

                             3,as your requests

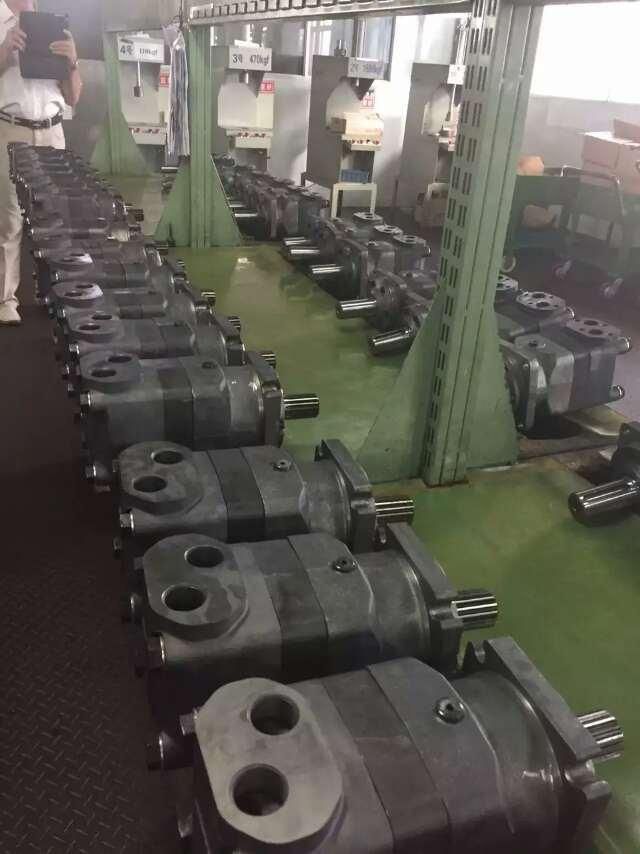

Blince factory :



Blince profssion supply all series hydraulic motor like OMM/OMP/OMPH/OMR/OMRS/OZ/OK/OMH/OMSY/OMT/OMV hydraulic orbit motor,hydraulic pump like ( PV2R series /V series / SQP series ) vane pumps. If you are interested  in any our blince hydraulic motor pls
contact me. Thanks!!
