• Model NO.：GG-DCL45
• Application：Ice Cream
• Customized：Customized
• Beautiful Appearance：High Efficiency
• Simple Operation：Easy to Maintainence
• Gas Consumption：140cube,24hours
• Capacity：4000-5000PCS,H
• Transport Package：Wooden Packing as Export Standard
• Specification：customered
• Trademark：GELGOOG
• Origin：China
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. GG-DCL45 Application Ice Cream Customized Customized Beautiful Appearance High Efficiency Simple Operation Easy to Maintainence Gas Consumption 140cube/24hours Capacity 4000-5000PCS/H Transport Package Wooden Packing as Export Standard Specification customered Trademark GELGOOG Origin China Production Capacity 100 Sets / Month

Product Description

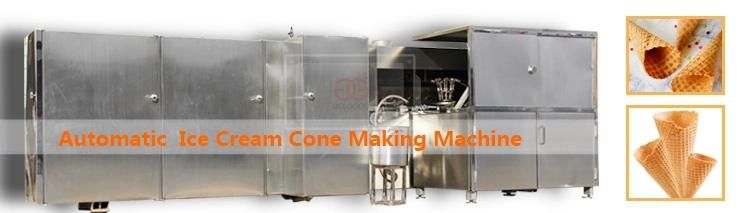

Introduction of Sugar Cone Making Machine

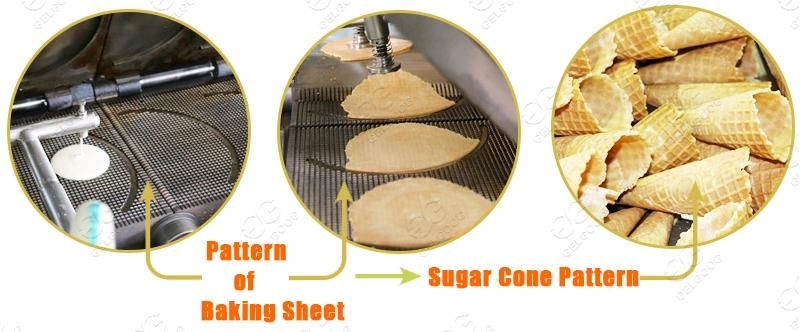

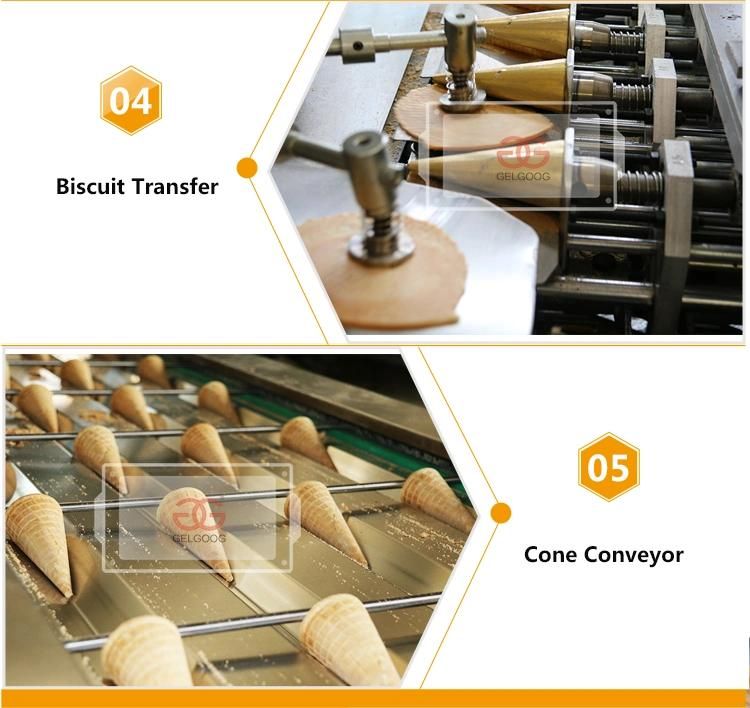

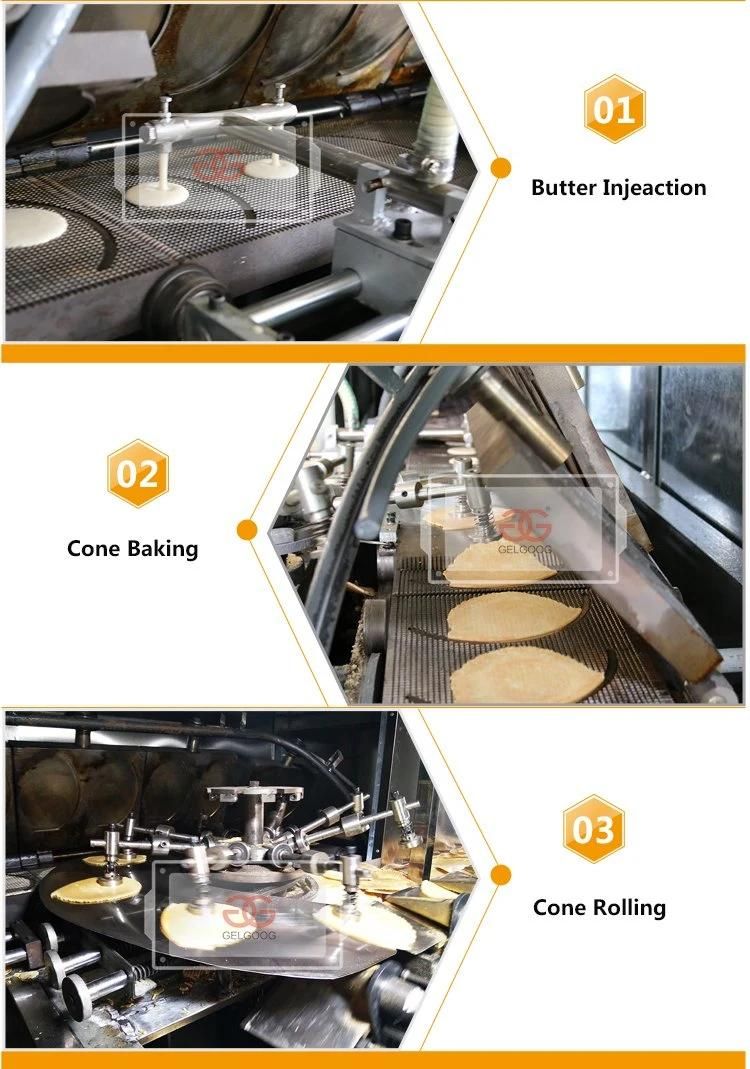

The automatic sugar cone production line is mainly used to make waffle and crispy ice cream cones. This production line is used to inject the batter into the baking plate, and then baked into thin biscuit sheet, and is automatically roll into ice cream cones. The cone made by this machine is crispy and refreshing. Our factory has different cone machines for wafer cups and waffle cones production.
Parameter of Sugar Cone Making Machine

Model	Voltage	Power	Capacity	Air consumption	Power consumption	Baking Pan Size	Size	Weight
GG-DCL35	380v 50hz	3kw	1500-2000pcs/h	6-8m³/h	3kw/h	260mm	6*0.8*1.85m	6T
GG-DCL37	380v 50hz	3kw	3500-4000pcs/h	6-8m³/h	3kw/h	260mm	7*0.8*1.85m	6T
GG-DCL45	380v 50hz	3kw	4000-5000pcs/h	6-8m³/h	3kw/h	260mm	8*0.8*1.85m	6T
GG-DCL55	380v 50hz	3kw	6000-7000pcs/h	6-8m³/h	3kw/h	260mm	9*0.8*1.85m	7T
GG-DCL65	380v 50hz	3kw	7000-8000pcs/h	6-8m³/h	3kw/h	260mm	12*0.8*1.85m	8T
GG-DCL75	380v 50hz	3kw	12000-15000pcs/h	8-10m³/h	3kw/h	260mm	11*1.9*1.85m	7T

Details of Sugar Cone Making Machine

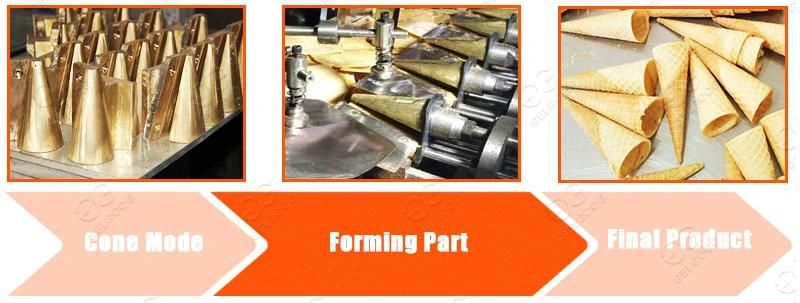

The automatic ice cream cone machine is suitable for making crispy ice cream cones with different shapes and sizes, the cone size we can customize for you just you provide your requirement. The machine can make many kinds of products, such as rollce ice cream cone, egg roll, crisp bowl, etc. If you need, that we can design and make other models and specifications according to the different requirements from the client.

Features of Sugar Cone Making Machine
1. The machine made with high quality stainless steel, the quality of the machines is guaranteed, the waffle cone is also health and safety.
2. The conveyor belt is aluminium alloy material, firm and reliable, has a long service life.
3. This type waffle cone producton line's capacity can achieve 3000-7500pcs per hour, the production ability is large.
4. The baking plate material of the automatic ice cream cone line is nodular cast iron, which is more durable and heats up quickly.
5. This machine is powerful and can be used to make different-sized sugar cones without the need for labor during the process.
Any question, Contact Me
