Raw material & formulationLDPE filmFinal product & Output capacityLDPE granules, 200kg/h

1.2 Work condition (Provided by customer):

Warehouse/WorkshopDimension (M*M*M): 12(L)×4(W)×3(H);
(Adjustable according to your factory structure).Crane: Machine positioningPower supply & Installation power 3-phase, 380V, 50 HzWire/cables: Wires/cables from power supply to control cabinet of this production line; all electrical cables from control cabinet to each machine.Cooling Water hose/pipe Water supply to machines and poolsLubrication oil: Exxon mobileCompressorSupply compressed airManpower 2 Persons (one for material input, one for granules packing)
 1.3 Energy consumptionInstallation power 160KW ( Actual consumption 110KW)Water supplyConsumption: 2 tons per hour recycling water (actual consumption is 0.5 ton/h).
Pressure: 0.6Mpa
Cooling water: 20ºC
 1.4 Main commercial terms Project LDPE film granulator machine Price FOB SHANGHAI USD 28,000Payment term 30% as down payment by T/T;
70% by T/T or L/C before delivery and after inspection;Delivery time 60 days since the date of receiving down payment Packing Plastic film winding, 1×20'GP Container Warranty period 12 months since date of bill of lading

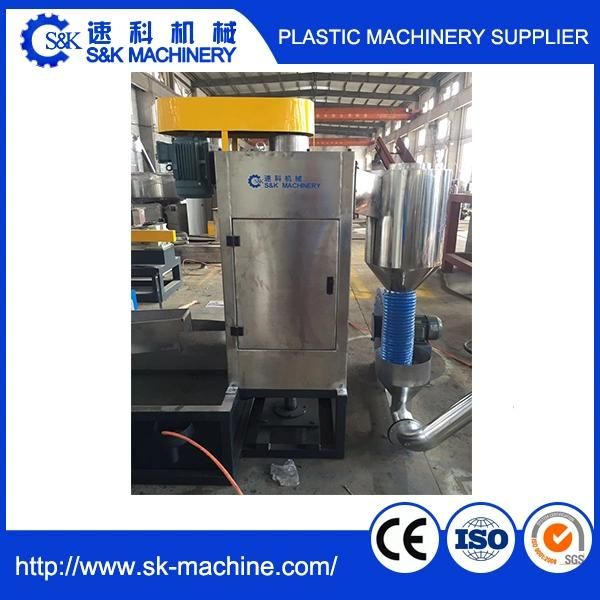

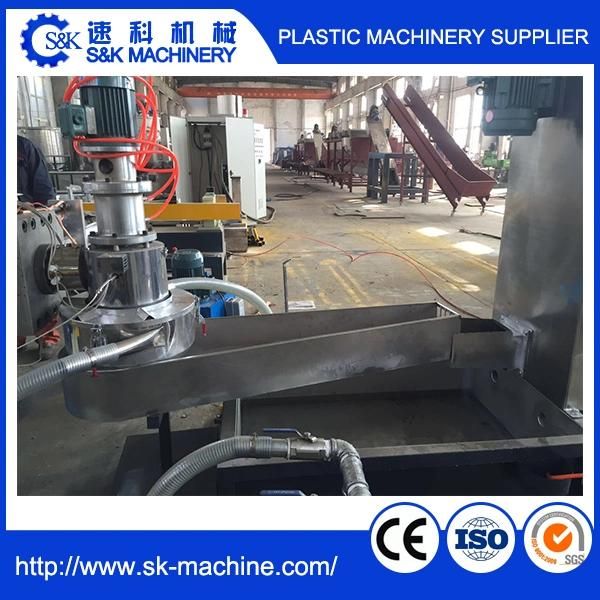

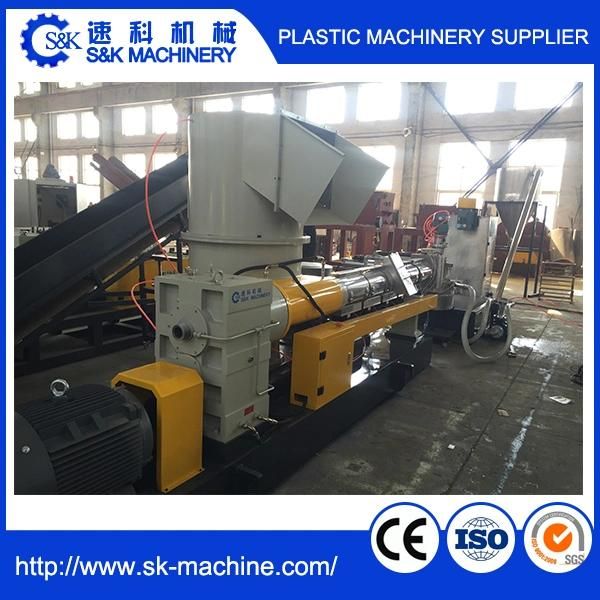

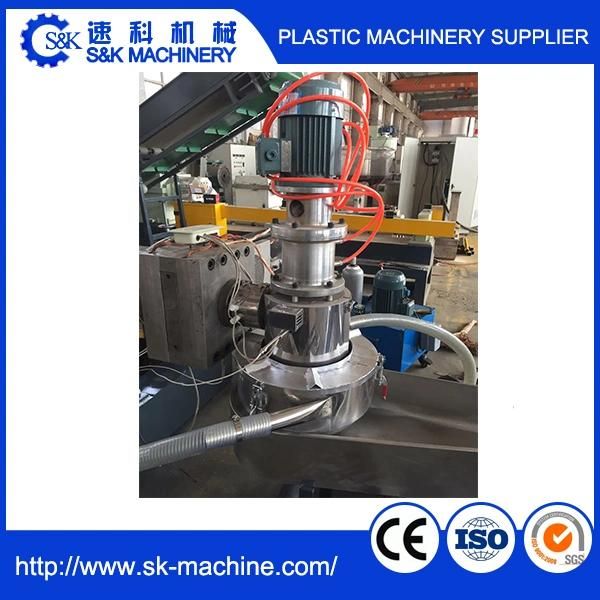

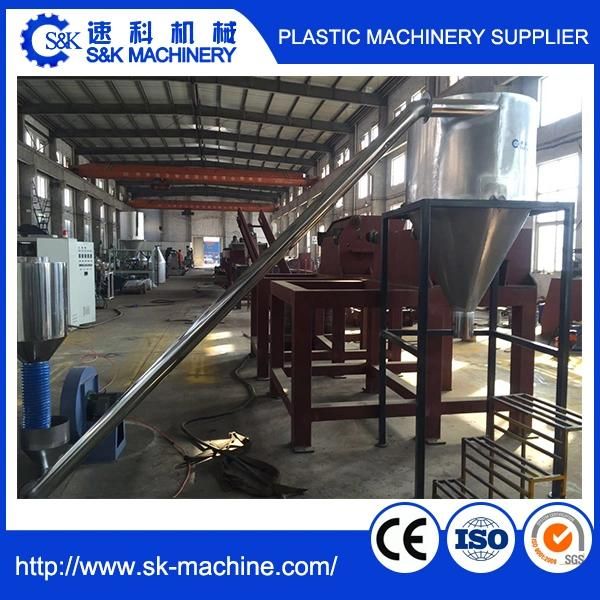

1.5 Machine list & QuotationNo.NameSpecificationQty.1Belt Conveyor1.5 KW1 pc.2Compactor37 KW1 pc.3SJ 85/33 Single Screw Extruder55 KW1 pc.4Hydraulic Screen Changer2.2 KW1 pc.5Vacuum System3 KW1 pc.6Water Ring Cutter2.2 KW1 pc.7Chute/1 pc.8Centrifugal Dewatering Machine4 KW1 pc.9Vibrating screen0.37 KW1 pc.10Air Conveyer3 KW1 pc.11Silo/1 pc.12Electric Control CabinetDelixi, CE Mark1 pc.







If you want higher capacity or other requirements of the granulator line, please tell us your demand and we will select the best model for you. We are always waiting for your inquiry.
