• Model NO.：HWJ
• Capacity：as Per Model
• Transport Package：Wooden Case
• Specification：CE; ISO9001
• Trademark：TG Machine
• Origin：China Shanghai
• HS Code：84382000

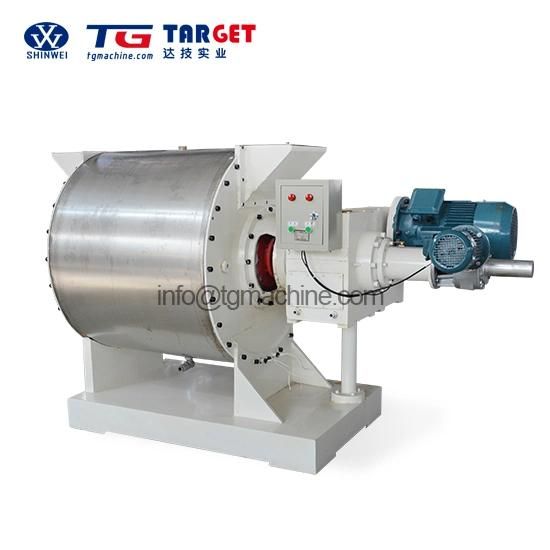

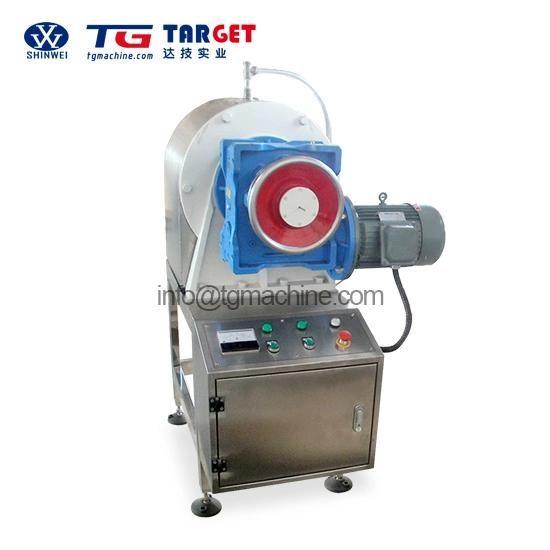

• Production Capacity：as Per Model Chocolate Conche Refiner

Maximum capacity(L)
20
100
500
1500
3000
Grinding Fineness (micron)
20~25
20~25
20~25
20~25
20~25
Main axle rotating speed (rpm)
93
48
33
28
35
Grinding time (h)
8~10
12~16
16~22
16~22
16~22
Mail motor power(kw)
1.5
5.5
15
22
45
Electrical heating power (kw)
0.6
2.5
5
6
12
weight(kg)
295
1050
2572
4850
7500
Outside dimensions(mm)
920×600× 1110
1200×1150× 1050
2000×1860× 1280
2918×1650× 1920
3450×2016× 2280


Packaging & Shipping
 Wooden Packing
1.Product production is completed, by the quality inspection department to check
2.After inspection qualified, clean for whole machine
3.Packing: a. Inside the machine put desiccant b. Add 6 cm thick foam plate around the machine, Then, winding stretch film for reinforcement, and combined with bubble wrap c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4.Container:according to different products for reinforcement
