• Model NO.：PEDB-400B

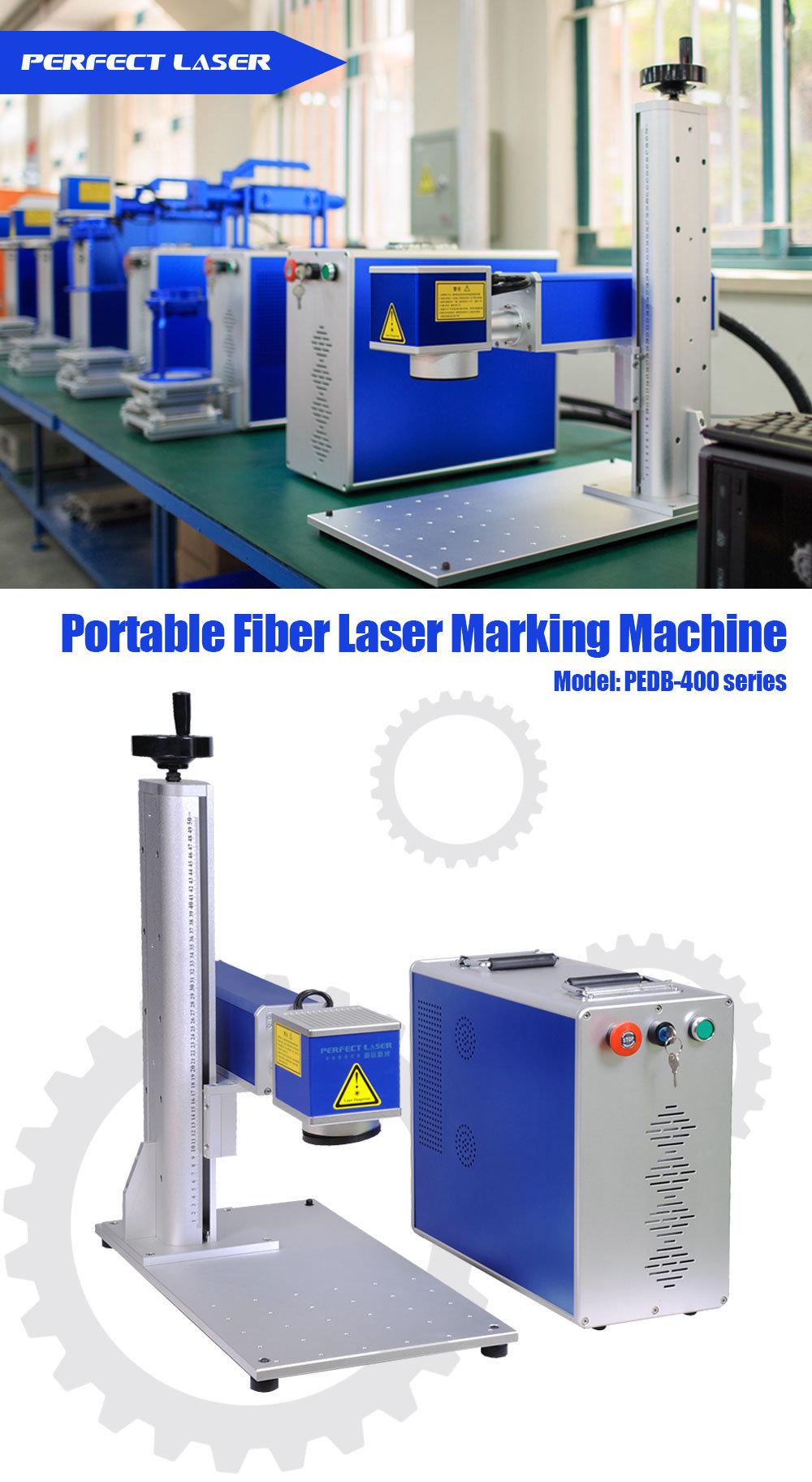

• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Engraving Machine Type：Fiber Laser Engraving Machine
• Laser Source：Ipg Raycus Max Mopa
• Power：10W 20W 30W 50W
• Drive Type：Stepper Drive
• Certification：FDA Ce ISO TUV SGS
• Working Size：110*110mm
• Optional Working Size：175*175mm 200*200mm
• Voltage：110-220V
• Condition：New
• Transport Package：Wooden Box
• Specification：ISO9001 & CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456100090
• Production Capacity：150 Units, Month

Laser SourseIPG SeriesPulsed, High Energy Ytterbium Fiber LasersMode of operation                           PulsedPolarization             randomQ-switched operationOutput power adjustment range10%-100%Nominal average output power W20WCentral emission wavelength1060-1070 nmEmission Bandwidth (FWHM)< 10 nmLong-term average power instability< 5%Pulse width, (FWHM)               100 nsLaser switching ON time         180 μ secLaser switching OFF time 180 μ secPulse Repetition Rate* kHz     20-80 kHzEnergy per pulse (PRR = 20 kHz)0.95 mJTypical beam quality, M2             < 1.8Output fiber delivery length   3mOperating voltage                         220VMax. Power consumption600W




 --------------------------------------------------------------------------------------
