No. 4 Finish Stainless Steel Mix Food Grade Ice Cream Process Tank Price
NINGBO HAISHU JUDIN PACKING PRODUCTS CO., LTD.- Name：No.4 Finish Stainless Steel Mix Food Grade Ice Cr
- Material：Food Grade Stainless Steel 304,316,316L
- Capacity：100L-30000L
- Heating：Electric ,Steam ,Gas ,LNG ,LPG
- Wall：Jacketed ,Double , Single
- Mixing Speed：36rpm, 48rpm,96rpm, 2900rpm
Base Info
- Model NO.：KQ
- Mixer：Follow Your Request
- Working Life：More Than 10years
- Tank Function：Heating, Fermenting, Mixing , Warm Keeping
- Voltage：Follow Your Request
- CIP：CIP Cleaning Tank
- Level Meter：Yes
- Spare Parts：Available
- MOQ：1set
- OEM：Yes
- Transport Package：Standard Export Wooden Box
- Specification：ISO
- Trademark：KQ
- Origin：Shanghai China
- HS Code：8479820090
- Production Capacity：100sets Per Month
Description
Basic Info.
Model NO. KQ Mixer Follow Your Request Working Life More Than 10years Tank Function Heating, Fermenting, Mixing , Warm Keeping Voltage Follow Your Request CIP CIP Cleaning Tank Level Meter Yes Spare Parts Available MOQ 1set OEM Yes Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai China HS Code 8479820090 Production Capacity 100sets Per MonthProduct Description

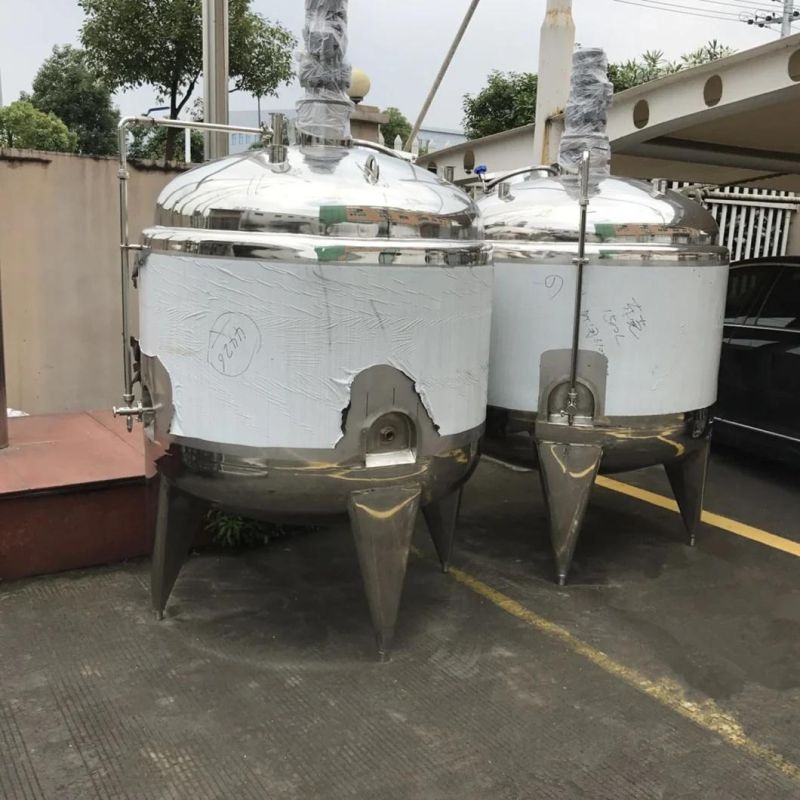

No.4 Finish Stainless Steel Mix Food Grade Ice Cream Process Tank Price
Shanghai Kaiquan Machine Valves Co.ltd offers the broadest range of tank heating solutions in the electric heatingindustry. .... jacketed vessel application is the heating of chocolate
ELECTRIC HEATING MILK BATCH PASTEURIZER
| TankCapacity(L) | 200, SS304 | 300, SS304 | 500, SS304 | 1000,SS304 |
| REV | 36r/min | 36r/min | 36r/min | 36r/min |
| Electric motor of the agitator | 0.55KW,380v,50hz | 0.75KW,380v,50hz | 0.75KW,380v,50hz | 1.1KW,380v,50hz |
| Electric heating tube power | 15KW,380v,50hz | 18KW,380v,50hz | 24KW,380v,50hz | 45KW,380v,50hz |
| Heating Area(M2) | 0.9 | 1.1 | 1.9 | 4.5 |
| Material Input/output(DN MM) | 38 | 38 | 38 | 50 |
| OUTSIDE DEMENSION(L*W*H)MM | 900*900*1600 | 1000*1000*1500 | 1100*1100*1700 | 1400*1400*1750 |
| GROSS WEIGHT(KGS) | 150 | 200 | 300 | 450 |
Other specifications can make to your order .
Accessories:
(1)Lid able to open on the top
(2) Charging/discharging hole at the bottom,
(3) Heat transfer oils (water) Inlet/outlet,
(4) Temperature probe,
(5) CIP cleaning ball,
(6) Heating tube, (7) Electric cabinet, (8) Reduction gears, (9) Rack & blender etc. (10)The electric motor(2.2KW, 380V, 50Hz)
Yogurt Pasteurizer Sterilizer Sterilization Tank
No.4 Finish Stainless Steel Mix Food Grade Ice Cream Process Tank Price .
