Basic Info.

Model NO. SLY400-T Drill Hole Depth 200 Meters Bit Type DTH Drill Bit/ Roller Bit Drilling Way Rotary Type Four Wheels Trailer Air Pressure 10.5-24.6 Bar Air Consumption 10-20 M3/Min Engine Power 45 Kw Weight 3450 Kg for Rock 6-20 F Transport Package Standard Shipping Packing Specification 5500MM*2100MM*2400MM Trademark LONGYE Origin China HS Code 8430419000 Production Capacity 300 Sets/ Year

Product Description

Our Advantages

We are factory with 22 years history, our machines exported more than 60 countries, occupy 60% market in China.We got ISO, CE certificate.


Product Introduction

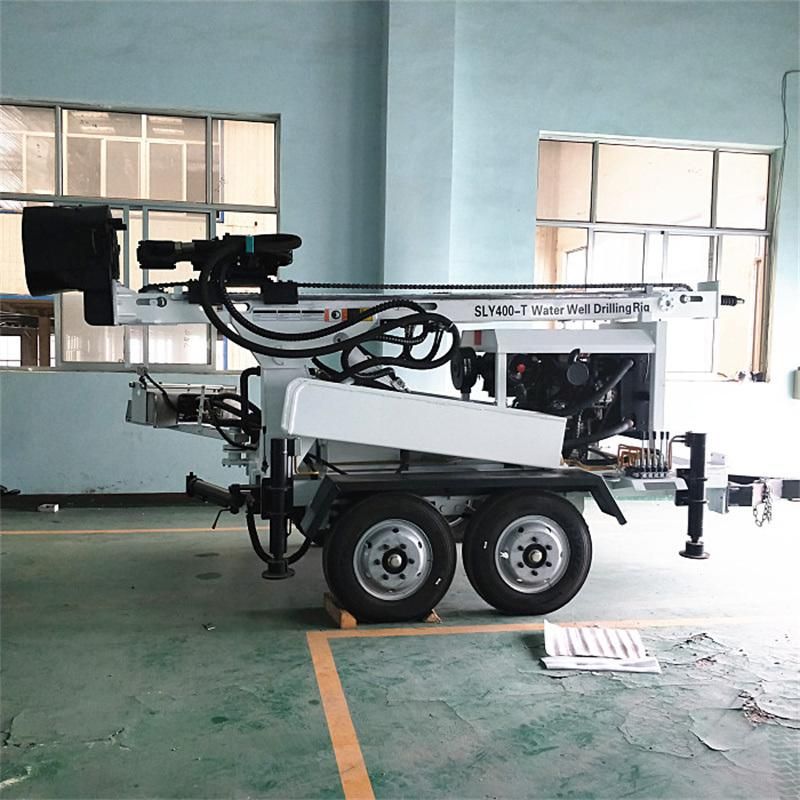

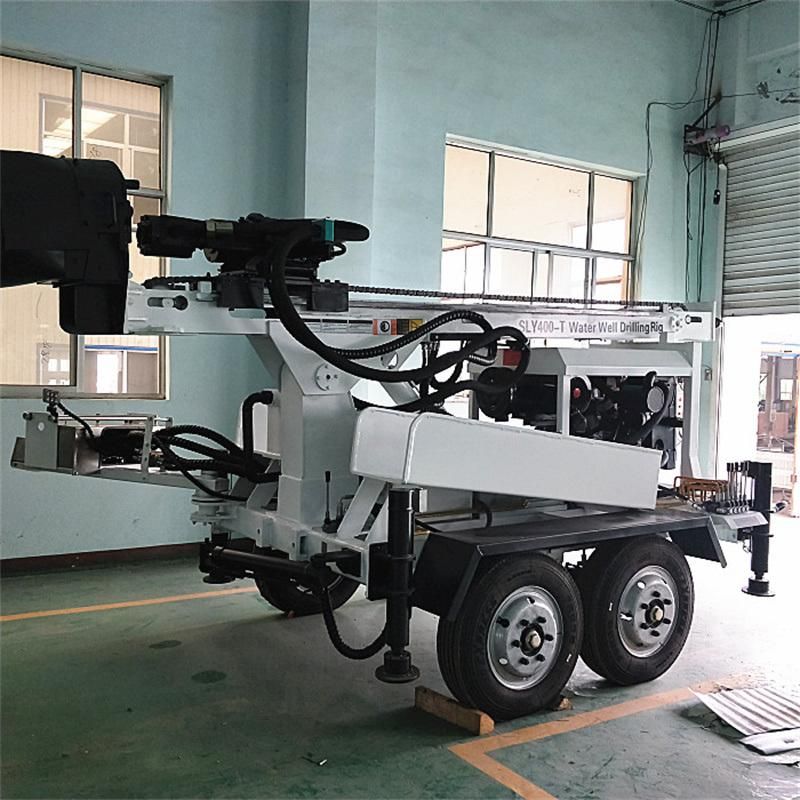

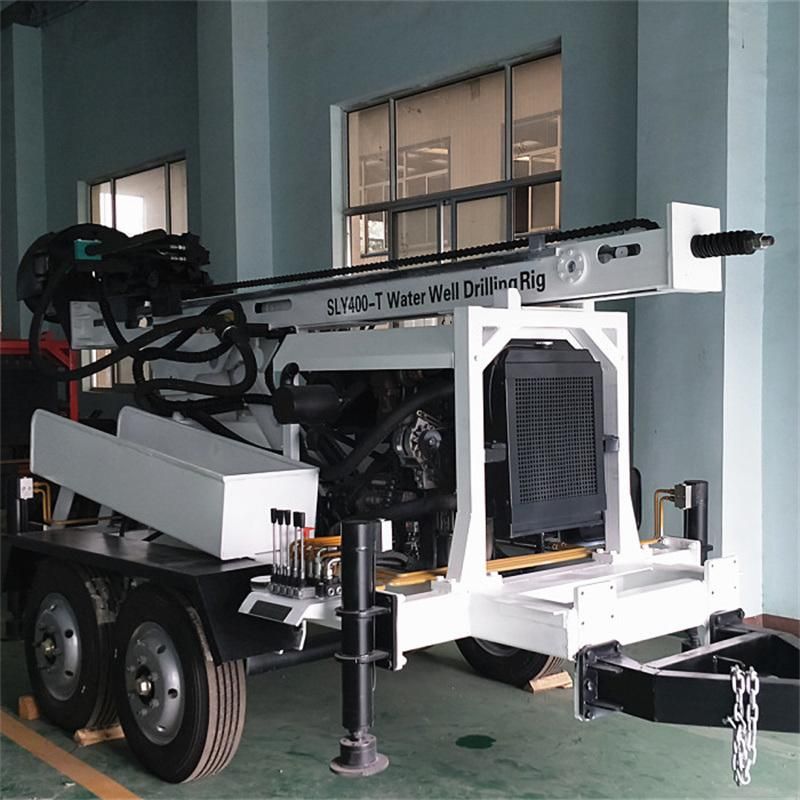

SLY400-T Water Well Drilling Rig
         SLY400-T Water Well Drilling Rig is lightweight, high efficient, multi-functional drilling rig, which can use air, foam or mud rotary for drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration holes , in particular in drilling geothermal heating hole, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.

Technical Parameters

Bore diameter(mm)	90---220
Bore depth(m)	200
Walk speed(km/h)	<20
For rock(F)	6-20
Air pressure(Mpa)	1.05-2.46
Air consumption(m³/min)	10-20
Once promotion(mm)	2000
Maximum height from the ground(mm)	320
Rotation Speed(r/min)	0-70
Rotation torque(NM)	2200
Dimension(L*W*H)(mm)	5500*2100*2400
Host power(Kw)	45
weight(Kg)	3450

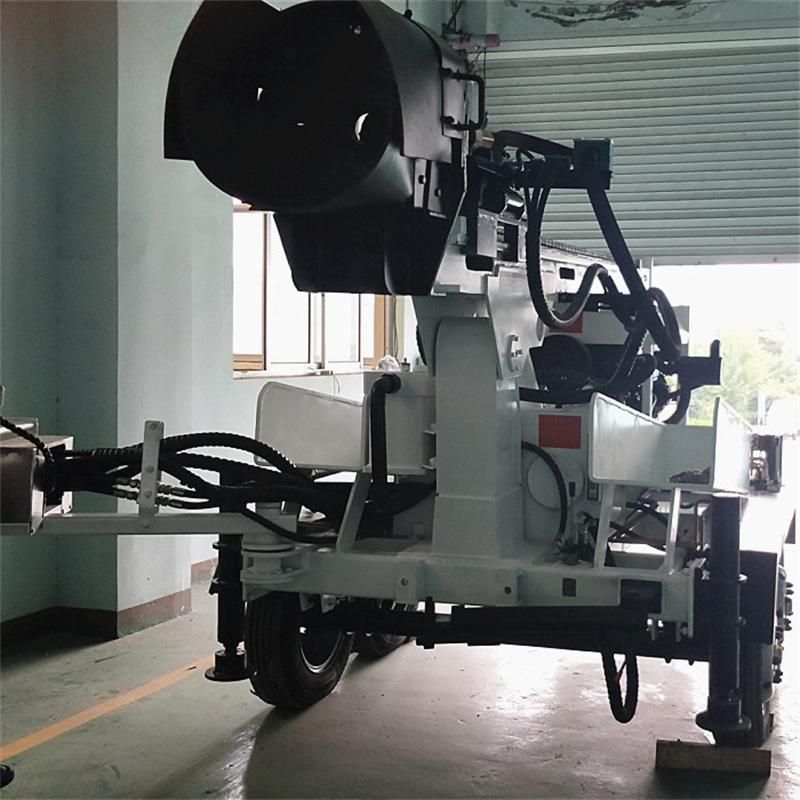

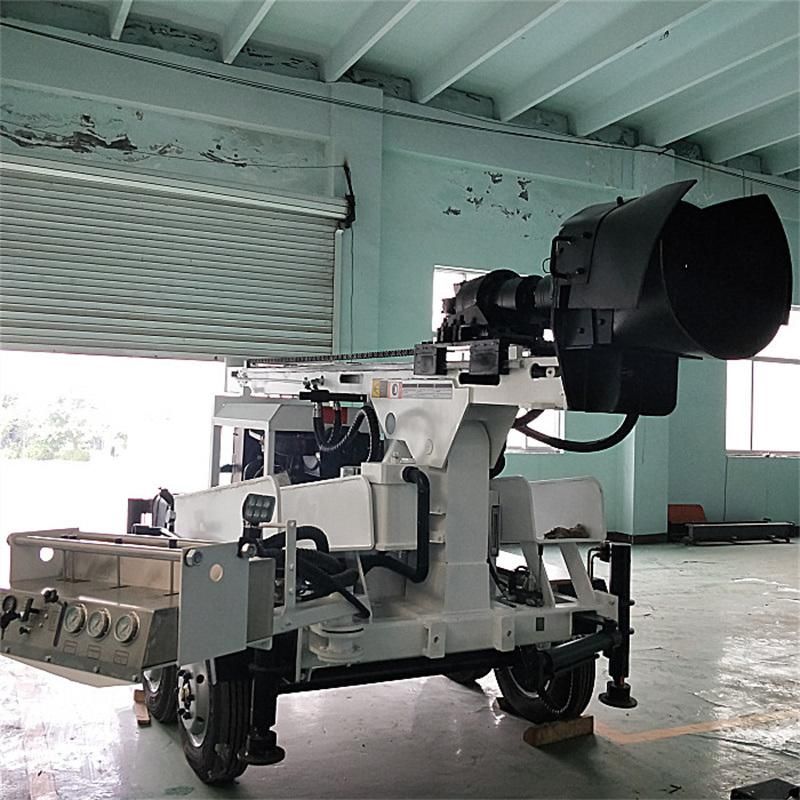

Product Display

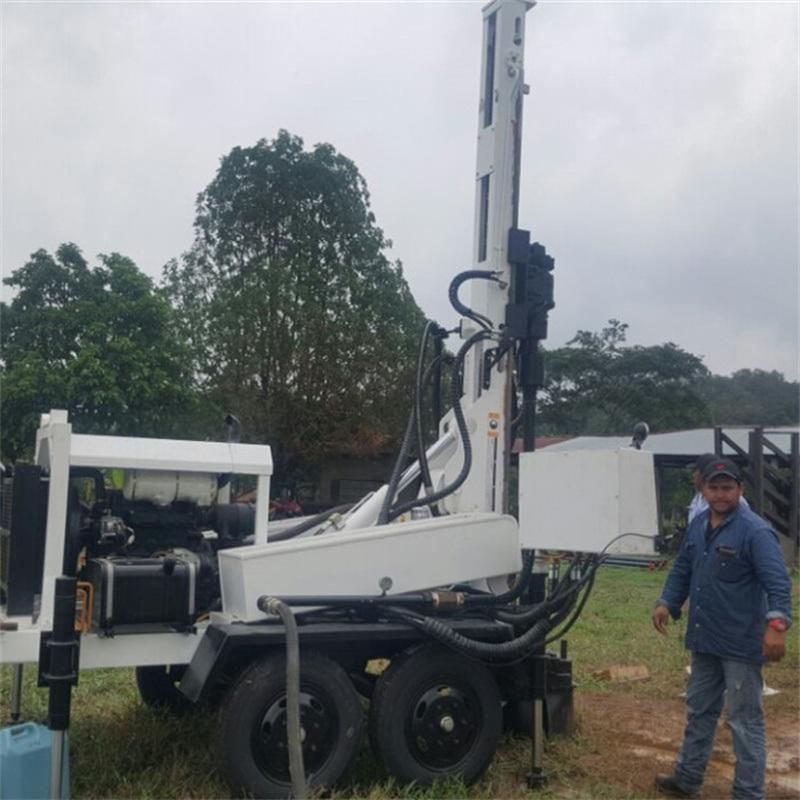

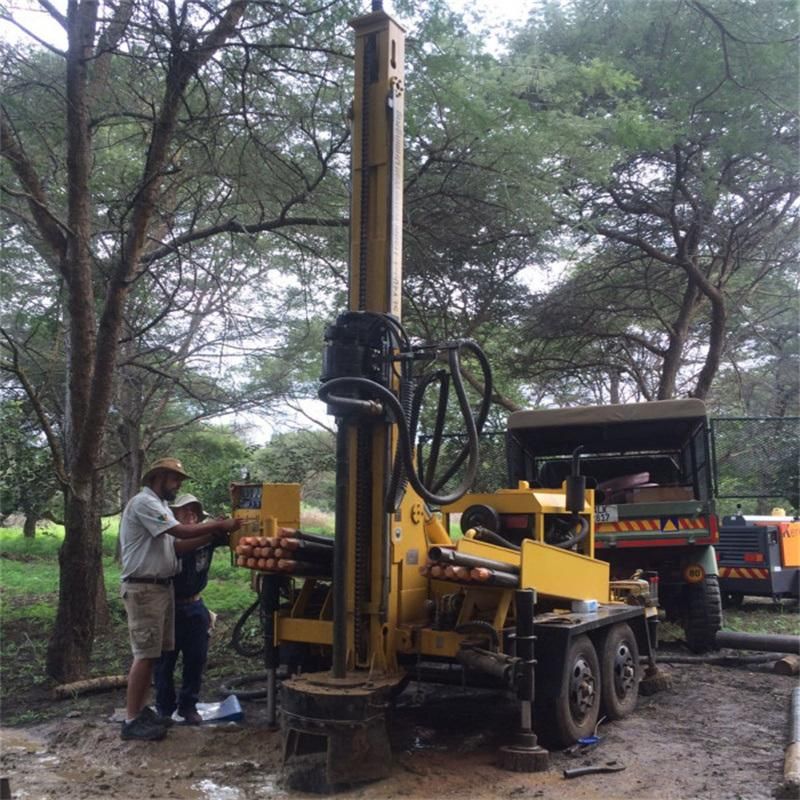

Product Application


Company Profile





FAQ

Q1: What's your delivery time?
A: 15 days to produce, within 3 days if in stock.

Q2: What's methods of payments are accepted?
A: We agree T/T ,L/C , West Union ,Money Gram ,Paypal.

Q3: What about the shipments and package?
A: 40' container for 2 sets, 20' container for 1 set,
Machine in nude packing, spare parts in standard export wooden box.

Q4: Have you got any certificate?
A:We have got ISO,CE certificate.

Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.

Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.

Q7: Can I trust your company ?
 A: Our company has been certificated by Chinese government,and verified by SGS Inspection Company.Just order from US !
