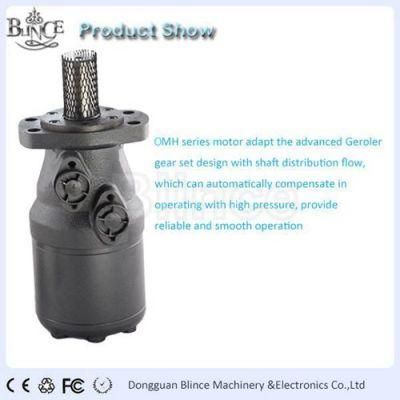

Bmh of Bmh200, Bmh250, Bmh315, Bmh400, Bmh500 Orbital Hydraulic Motor
Guangzhou Cospack Packaging Technology Co., Ltd.- Certification：CE, ISO9001
- Excitation Mode：Excited
- Power Rating：2500W
- Casing Protection：Protection Type
- Number of Poles：6
- Speed：High Speed
Base Info
- Model NO.：OMH200,250,315,400,500
- Type：Hydraulic Motor
- Usage：Hydraulic Oil
- Material：Cast Iron
- Application：Medium and Heavy Duty Tasks
- Place of Origin：Guangdong, China (Mainland)
- Hydraulic Power Units：Vane Pump
- Flange Type：Rhomb-Flange
- Diameter of Shaft：25.4mm,31.75mm,32mm,35mm Staright
- Shaft Type：Parallel Key,Splined Tooth
- Hydraulic Motor：Piston Hydraulic Motor
- Flow Distribution：Axial Distribution Type
- Transport Package：Plastic Tube +Carton+Wooden Pallets
- Specification：ISO9001
- Trademark：Blince
- Origin：Guangdong, China (Mainland)
- HS Code：8412291000
- Production Capacity：1000 Sets Per Month Meet Your Requirment
Description
Type OMH
200 OMH
250 OMH
315 OMH
400 OMH
500 Geometric
displacement (cm/rev.) 203.2 255.9 316.5 406.4 489.2 Max. Torque
(N?m) cont 510 621 740 850 830 int. 539 702 827 990 1040 peak 651 790 980 1092 1170 Max. speed
(rpm) cont 366 290 236 183 155 int. 439 348 282 220 184 Max. output
(kW) cont 16 16 14 12.5 11 int. 18.5 18.5 15.5 15 14
Max. pressure
drop (MPa) cont 17.5 17.5 17.5 15.5 12.5 int. 20 20 20 19 16 peak 22.5 22.5 22.5 21 18 Max.flow
(L/min) cont 75 75 75 75 75 int. 90 90 90 90 90 Max.Inlet Pressure
(MPa) cont. 2 0 0 int. 2 2 5 peak 2 5 0 Max.return Pressure With drain line (MPa) cont. 1 7 5 int. 2 0 0 peak 2 2 5 Net Weight (kg)
10.5 11 11.5 12.3 13
