Basic Info.

Model NO. SPB2000-6000 Cooling Type Vacuum Cooling Warranty 1year Transport Package Standard Export Package Trademark VST Origin Zhejiang, China (Mainland) Production Capacity 20 Unit / Month

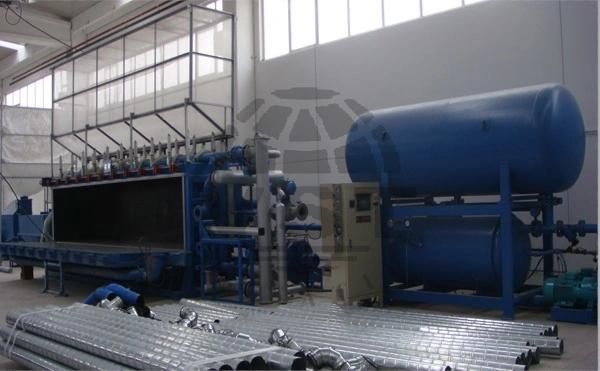

Product Description

Main Features:
1,Strong Structure:
   Machine is made of high-strength square tubes and thick steel plates.
   Machine's all six panels are through heat treatment to release welding stress, so that panels cannot deform under high temperature.
   After heat treatment, all panels are processed by sand blasting treatment t remove rust, then first painting and final painting is done to keep machine anti-corrosion.
2,Steam System:
   Use three ball valves to control steam, saving 20% steam comparing to traditional one main valve system.
   Steaming is controlled by Timer and three Germen electrical gauge switches, with a safty valve to save from gauge malfuncton situation.
3,Control System:
   Machine with PLC and touch screen for easy operation.

TECHNICAL DATA
Item		PSB-DZ200	PSB-DZ300	PSB-DZ400	PSB-DZ600	VBM800/DZ
Mould Cavity Size		2040*1240*1030(mm)	3060*1240*1030(mm)	4080*1240*1030(mm)	6100*1240*1030(mm)	8120*1240*1000(mm)
Block Size		2000*1200*1000(mm)	3000*1200*100(mm)	4000*1200*100(mm)	6000*1200*1000(mm)	8000*1200*1000(mm)
Steam	Entry Consumption Pressure	DN65 30-50kg/cycle 0.8MPa	DN65 50-70kg/cycle 0.8MPa	DN100 60-90kg/cycle 0.8MPa	DN100 100-130kg/cycle 0.8MPa	DN150 120-170kg/cycle 0.8MPa
Compressed Air	Entry Consumption Pressure	DN40 1.5-2m³ /cycle 0.6MPa	DN40 1.8-2.2m³ /cycle 0.6MPa	DN40 2-2.5m³ /cycle 0.6MPa	DN40 2-3m³ /cycle 0.6MPa	DN40 2.5-3m³ /cycle 0.6MPa
Cooling Water	Entry Consumption Pressure	DN50 0.4m³ /cycle 0.4-0.6MPa	DN50 0.6m³ /cycle 0.4-0.6MPa	DN50 0.6m³ /cycle 0.4-0.6MPa	DN50 0.6-1m³ /cycle 0.4-0.6MPa	DN50 0.8-1.2m³ /cycle 0.4-0.6MPa
Drainage	Vacuum Drain Steam Vent Condensate	Φ 125mm Φ 100mm Φ 100mm	Φ 125mm Φ 100mm Φ 100mm	Φ 125mm Φ 200mm Φ 100mm	Φ 125mm Φ 200mm Φ 100mm	Φ 125mm Φ 200mm Φ 100mm
Throughout	15kg/m³	5min/cycle	6min/cycle	7min/cycle	8min/cycle	8min/cycle
Connected Load		20.5-24.5Kw	20.5-24.5Kw	24.5-35.5Kw	24.5-35.5Kw	35.5-43.5Kw
Overall Dimension	(L*W*H)	5700*4000*2850(mm)	7200*4500*3000(mm)	11000*4500*3000(mm)	12600*3960*2906(mm)	15700*4600*3400(mm)
Weight		6000kg	7200kg	12000kg	15000kg	185000kg
Room Height Required		6000mm	6000mm	6000mm	6000mm	6000mm
