• Model NO.：HSCO2-30W
• Type：CO2 Laser Marking Machine
• Marking Method：Scanning Marking
• Engraving Machine Type：Laser Engraving Machine
• Control：Automatic
• Current：AC
• Laser Type：CO2
• Usage：Woodworking
• Machine Weight：260kg
• Transport Package：Wooden Packing
• Specification：CE SGS FCC FDA
• Trademark：holylaser
• Origin：Yiwu
• HS Code：8456100090
• Production Capacity：2000,Year

Basic Info.

Model NO. HSCO2-30W Type CO2 Laser Marking Machine Marking Method Scanning Marking Engraving Machine Type Laser Engraving Machine Control Automatic Current AC Laser Type CO2 Usage Woodworking Machine Weight 260kg Transport Package Wooden Packing Specification CE SGS FCC FDA Trademark holylaser Origin Yiwu HS Code 8456100090 Production Capacity 2000/Year

Product Description

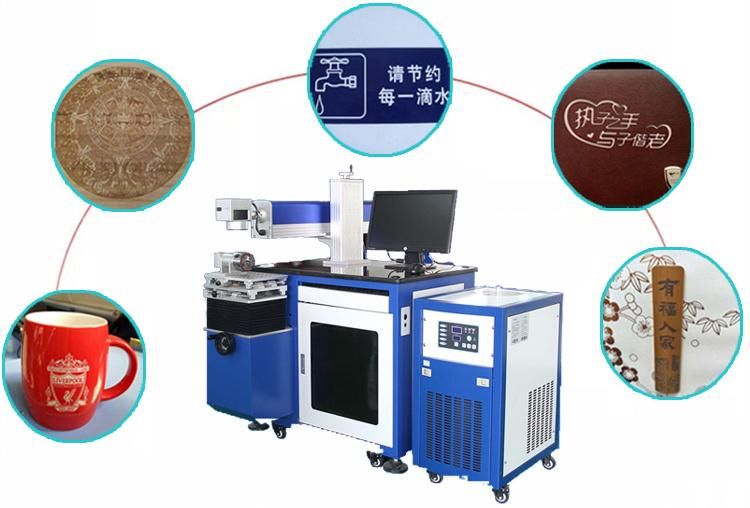

Nonmetal Laser Marking Machine Factory Direct DescriptionCO2 nonmetal laser marking machine, laser engraving cutting machine HSCO2-30W is a gas laser machine whose frequency band wave length of infrared light is 10.64nm, CO2 gas is filled in the discharge tube as the medium to produce laser, when high voltage is added to the electrode, it will produce glow discharge in the discharge tube and then the gas molecule will discharge laser, after the energy of laser is strengthened it will form the laser beam to produce.Computer controlled resonance mirror can change the path of the laser beam so that automatic marking can be accomplished.

 Machine Feature1. All laser source coherent is imported from USA.
Low power consumption, cost effective and long lifespan, convenient to maintenance.
2. Stable laser output and good beam quality
3. Support DXF, BMP, PCX, JPG, common vector and bitmap graphics, date marking supporting, serial number, bar code, letter, 2D code, incrementing serial No., automatic jump codes, etc.
4. Cooling way: Two kind of cooling: Low power with air cooling, high power with water cooling.
5. Rotary clamps for engraving: Can engrave not only sheets, but also roll materials and cylinders such as pencil vase, flute, bottle and so on
After-sale service1. One year guarantee period for product quality.
2. Lifelong maintenance and spare parts supply.
3. Free design of fixtures as customers required.
4. Free training for machines installation and operation of the staffs.
 Product performance

marking scope (mm)	70*70,110*110,175*175,300*300 mm
response time	0.8ms
Extender lens	optional
laser wavelength	10.64MM
output power	30W/60W/100W/150W
min. line width	0.2mm
marking speed	≤7000mm/s
repeatability precision	±0.01mm
marking depth	≤6mm
min. character	0.8mm
pulse frequency	20khz
highest resolution	65525
cooling way	air cooling

Samples showing


Packaging and shipping:



Company Information
ZheJiang Holy Laser technology Co.LTD has worked hard to become the global leader in manufacturing of laser equipment. All our products has passed the CE, FCC, SGS, TUV and FDA special for American market. 2012, company has obtained 6 patents certificate for computer software technology. Holy laser has been in the laser business since established. We strive to update our technology in the direction of green, environment-friendly and energy saving. review the past Holy Laser won market recognition step by step.looking for ward the future, Holy Laser will continue to dedicate our company mission and ethnic spirit with you to open a new chapter in history.


FAQ
1.Why should you choose us?
A:If you choose us, you will get best quality, best service, best price, best warranty.

2.How can I get the best machine for me?
A.You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.

3.How to operate the machine?
A:We will delivery English manual and video with the machine to you. If you still need our help, please contact us.

4.Do the machine can be customized according my requirements?
A:Sure we have a strong technical team and have rich experience. Our goal is to make you satisfied.

5.Can you arrange the shipment for me?
A:We can arrange the shipment for our clients accordingly by sea and air.
