Basic Info.

Model NO. HWS-30 Bit Type Diamond Bit Drilling Way Rotary Type Four-Wheel Trailer Speed Range 80-1200 Rpm Drilling Depth 15m Maximum Lifting Force 1000kg Drilling Diameter 40-75mm Feed Stroke 1200mm Mainframe Dimensions 66* 38 * 176mm Transport Package Wooden Case Specification 66*38*176mm Trademark HW Origin China Production Capacity 1000

Product Description

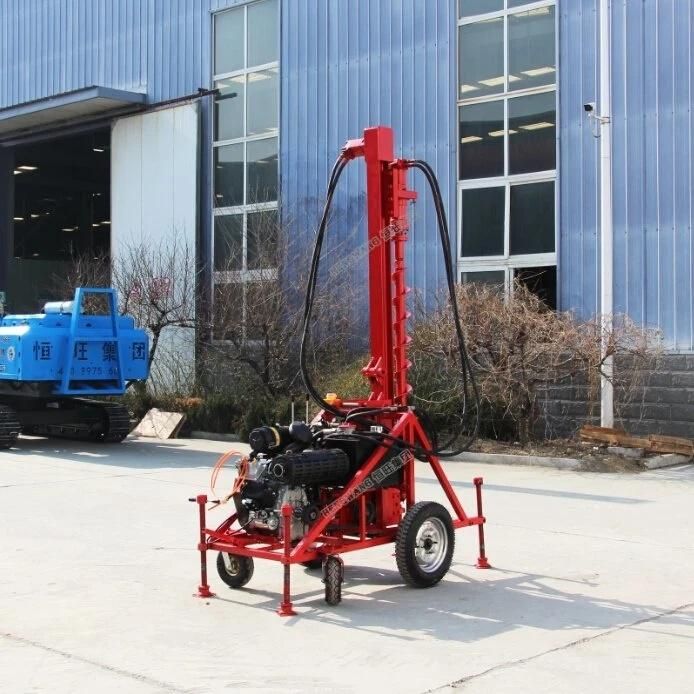

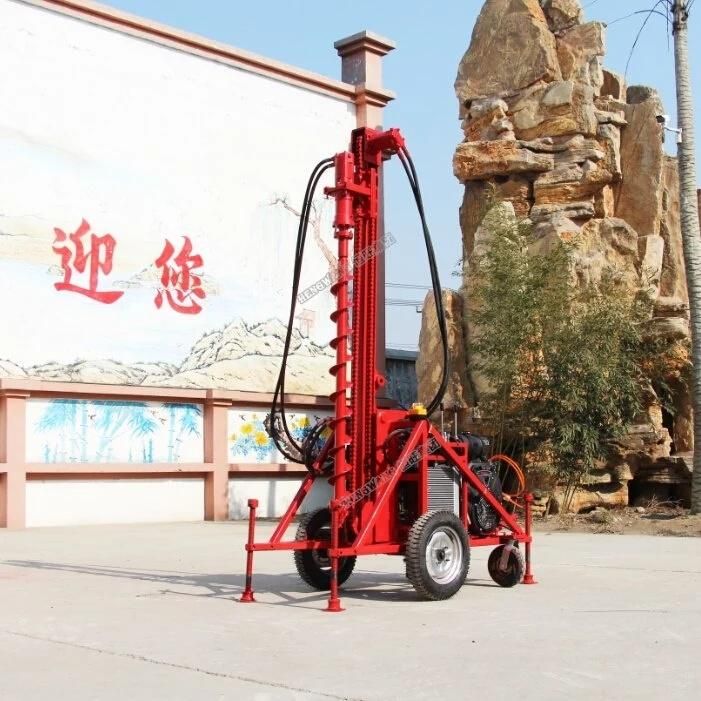

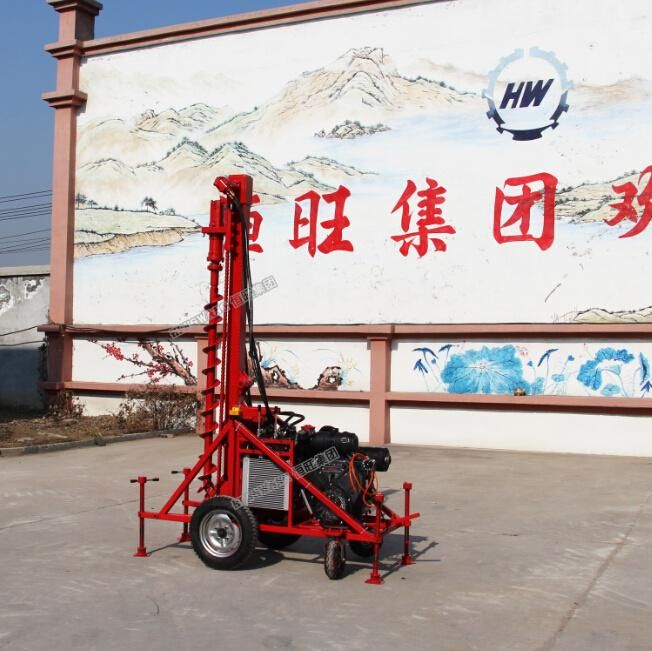

The HWS-30 mountain rig is a mountain seismic exploration drilling equipment newly developed and produced by our company.

It can be widely used in rugged mountainous areas where the vehicle rig cannot operate. The rig has the following features:

1. High drilling efficiency, which reduces operating costs;

2, the structure is simple, easy to disassemble and maintain;

3, the operation is more humane

4, the overall weight is light, and is a split structure, easy to move and transport.

Drilling method	diamond, alloy, auger, etc.
Speed range	80-1200 rpm
Drilling depth	15m
Maximum lifting force	1000kg
Drilling diameter	ø 40-ø 75mm
Feed stroke	1200mm
Mainframe dimensions	66* 38 * 176mm

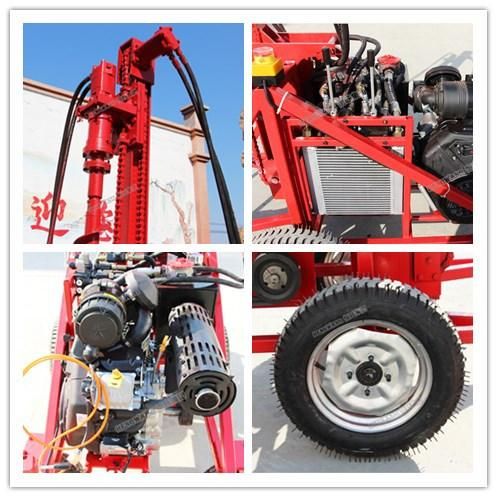

Main configuration
Main engine, high speed power head, slow power head	(cycloid motor assembly)
Hydraulic power pump station, hydraulic valve unit,	13HP gasoline engine
High pressure water pump	(plunger pump, 3.5HP gasoline engine)
Excellent grade alloy drill pipeØ40	ø56 alloy drill bit
