4 Baskets Sterilizer for Canned Food / Mushroom Sterilization Machine with 4 Baskets ...
Dongguan DianYa Packaging MFG. Co., Ltd.- Certification：CE, FDA
- Type：Pressure Steam Sterilization Equipments
- Sterilizer Construction Material：Stainless Steel
- Batch Sterilization Capacity：100L ~ 5000liter
- Sterilizer Chamber Layout：Horizontal , Vertical
- Heating Medium：Steam , Electric
Base Info
- Model NO.：R-I mushroom sterilization machine
- Max Sterilization Temp.：125 Degree C
- Max Working Pressure：0.35 MPa
- Energy Recovery：with Heat Recovery Tank
- Plate Heat Exchanger：Optional
- Wter Inlet Pump：Available
- Back Pressure by：Compressed Air
- Theory：Autoclave
- Electric Tension：220V
- LCD Display：with LCD Display
- Ultra High Temperature Alarm：Ultra High Temperature Alarm
- Material：Stainless Steel
- Transport Package：Wooden , Nylon
- Specification：water spray, with 2 sterilization baskets, 100L~5T
- Origin：China
- HS Code：84198990
- Production Capacity：2000PCS Every Season
Description
0.7Mpa steam pressure
Benefits / advantage
4 baskets sterilizer for canned food / mushroom sterilization machine with 4 baskets DN1200x3600
- Quick heating in preheating process
- uniform heat distribution in sterilizer chamber
- Rapid and even cooling.
- Low electricity, steam and water consumption.
- Safe counter pressure control during all process phases.
- Accurate temperature control
- Suitable for different types and sizes of package.
4 baskets sterilizer for canned food / mushroom sterilization machine with 4 baskets DN1200x3600

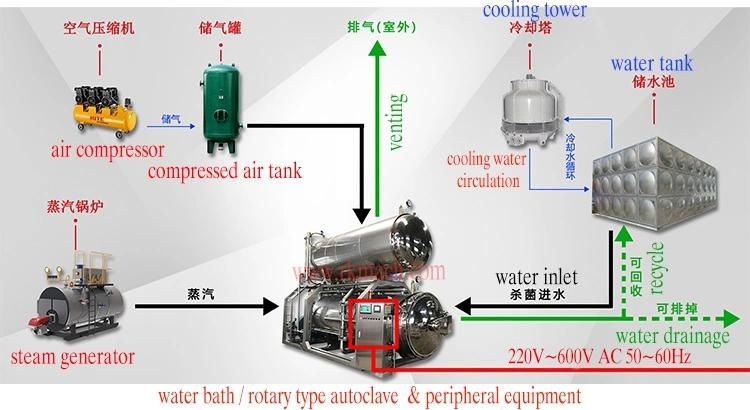

- Pressure gauge
- Temperature thermometer
- Safety valve
- Safety lock
- Gasket sealing ring
- Pressure relief valve
- Compressed air inlet valve
- Water inlet pump
- Steam inlet valve and by pass valve (optional)
- Pipe filter for cooling water
- Filter screen for water outlet pipe (optional for glass jar sterilizer)
- Countdown Timer for sterilization period / cooking phase
- Level meter
- Plate heat exchanger (optional)

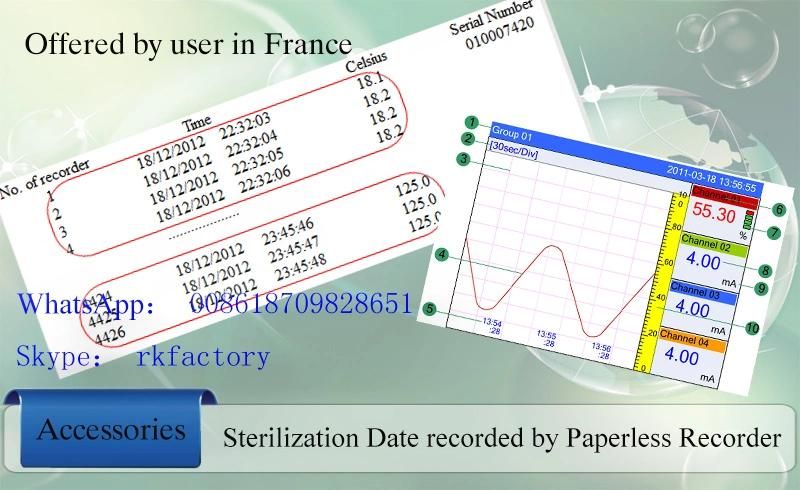

- Round Paper recorder / paper less recorder (optional)
- USB Date logger (optional)
- Insulated Hot water tank (optional)
- Conveyor Chain inside the sterilizer retort (optional)
- PLC control system (optional)
- Air compressor
- Compressed air storage tank
Price
4 baskets sterilizer for canned food / mushroom sterilization machine with 4 baskets DN1200x3600
Due to the diameter and the length of the sterilizer retort various for different usage, the price of our retort sterilizer will be different. In order to offer you an accurate price, please let us know your request of the sterilizer diameter and the length of the sterilization machine body. Or you can tell us the dimension of your product package and its quantity you want to sterilize per batch. We will offer you the most suitable solution and the price.
