Basic Info.

Model NO. BRD Condition New Transport Package Wood Pallet and PE Film Specification CE certification Trademark BEIER MACHINERY Origin China

Product Description

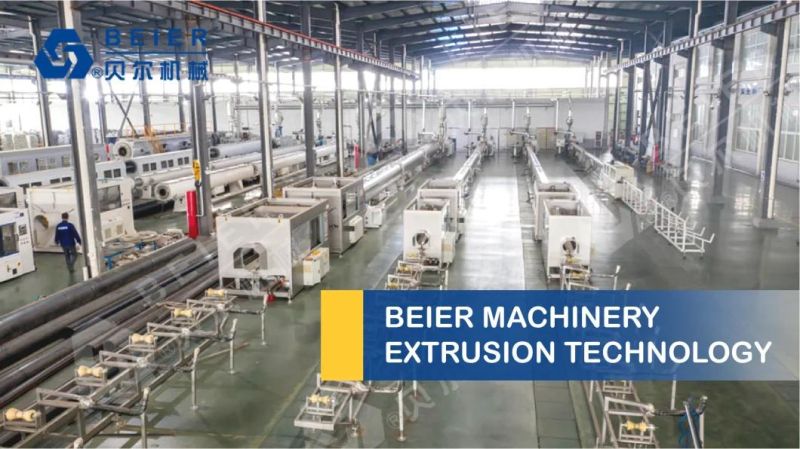

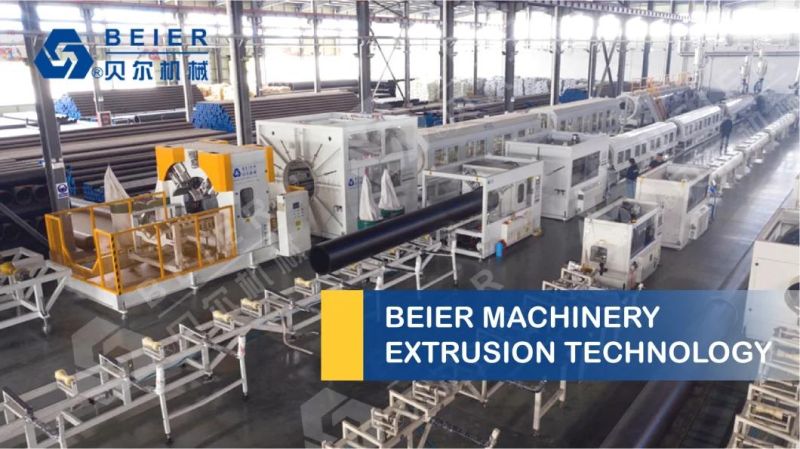

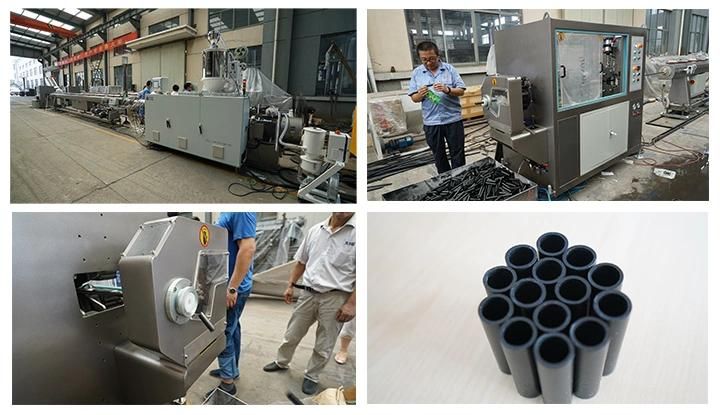

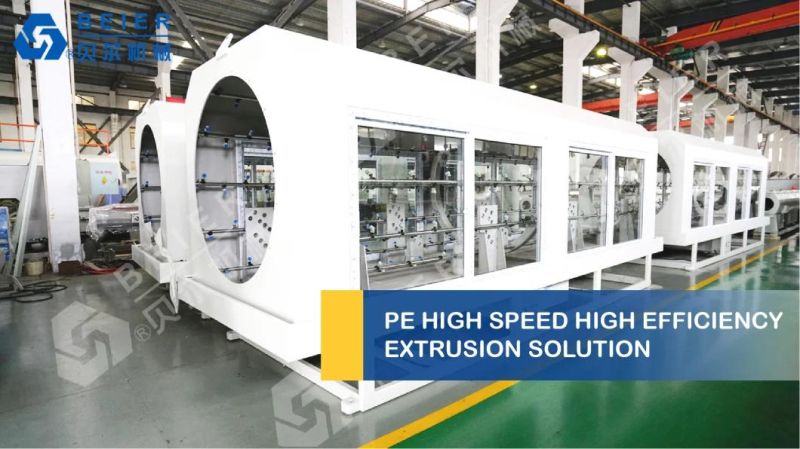

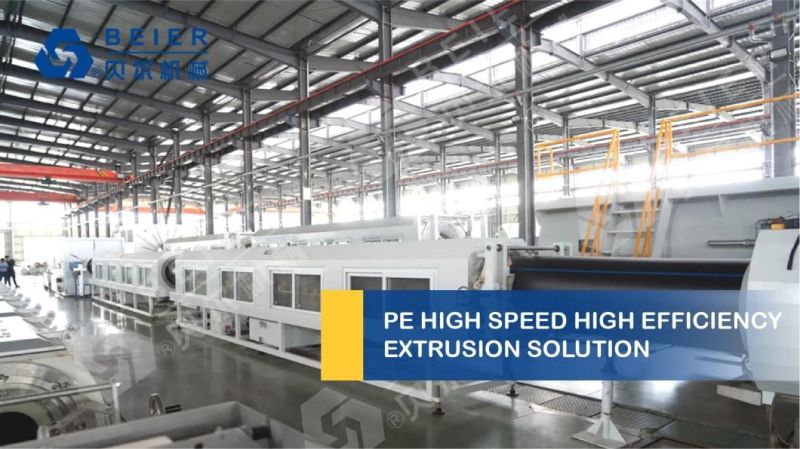

HDPE Water & Gas Supply Pipe Extrusion Line



Machine Characteristics

1. The optimum spiral structure feeding throat highly improves the output of extruder
2. Accurate temperature control system ensures materials melting performance
3. Unique screw design achieves better plasticizing and high quality products
4. Precisely designed gearbox with a high torsion guarantees stable running
5. "H" shape frame to decrease vibrating of extruder
6. Advanced PLC operation system realizes synchronization and automation

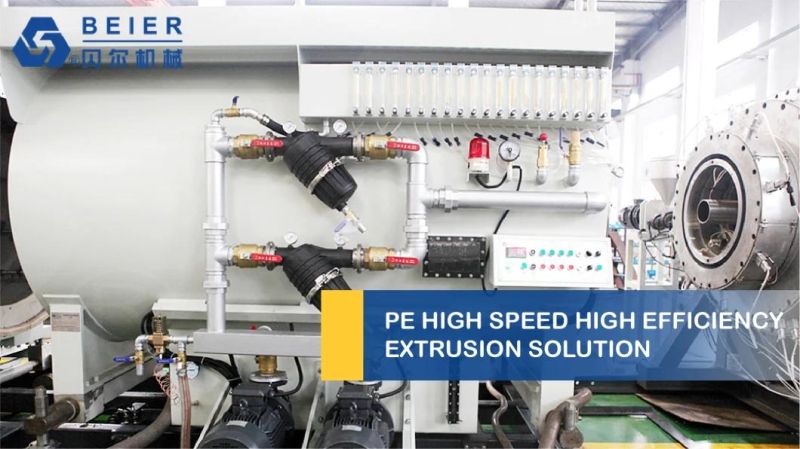

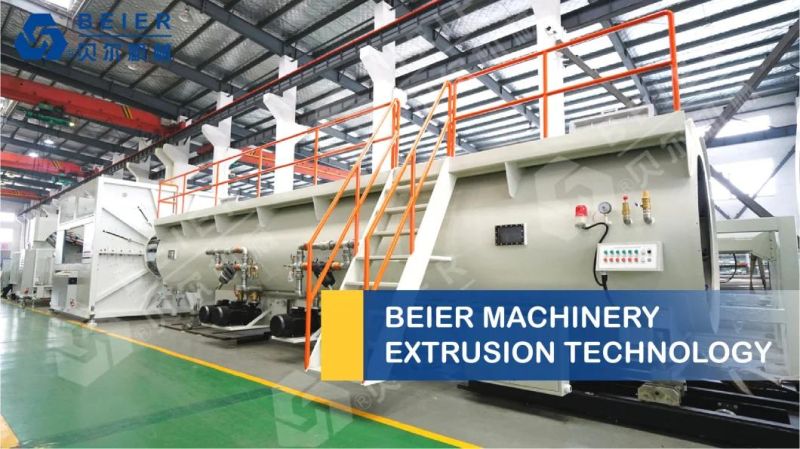

7. Adopt automatic water temperature & level control and special independent filters On both vacuum and cooling tanks
8. Offer stable haul-off unit with 2-12 caterpillars
9. Provide saw & chip-free cutting options
10. Low energy consumption, excellent performance, and easy maintenance

Technical Parameter

Model	Pipe range(mm)	Extruder model	Extruder Motor power(kw)	Max.output(kg/h)
BRD-63	Φ20-63	BRD60/38	90	450
BRD-110	Φ20-110	BRD60/38	110	500
BRD-160	Φ40-160	BRD60/38	110	500
BRD-250	Φ50-250	BRD75/38	160	680
BRD-400	Φ160-400	BRD90/38	250	1000
BRD-630	Φ280-630	BRD90/38	280	1100
BRD-800	Φ315-800	BRD120/38	315	1300
BRD-1200	Φ500-1200	BRD120/38	355	1400
BRD-1600	Φ1000-1600	BRD90/38&BRD90/38	250+250	2000
BRD-2000	Φ1000-2000	BRD90/38&BRD90/38	280+280	2200
