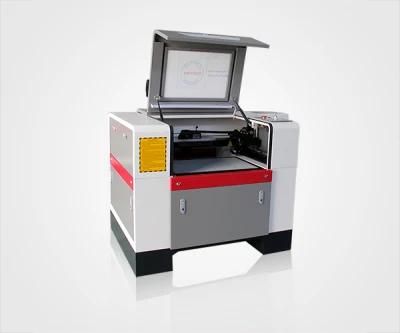

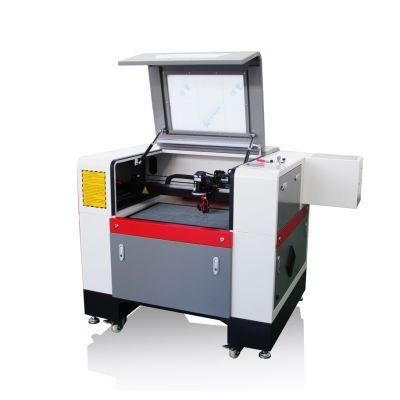

Hot Sale 600X900mm 60W/80W/100W CO2 Laser Cutting Engraving Machine

Yumyth Electronic Tech Co., Limited
  • Warranty：24 Months
  • Application：Advertising Industry
  • Cooling System：Air Cooling
  • Technical Class：Continuous Wave Laser
  • Applicable Material：Nonmetal
  • Structure Type：Desktop

Base Info

  • Model NO.：DW6090
  • Laser Classification：Free Electron Laser
  • Laser Technology：Laser Flame Cutting
  • Engraving Machine Type：Laser Engraving Machine
  • Usage：Acrylic , Wood ,Paper ,MDF
  • Power：60W,80W,100W
  • Drive Type：Leadshine Stepper Motor
  • Certification：CE, FDA
  • Laser Type：CO2
  • Control System：Rdcam ,Leetro 6585
  • Table：Honeycomb ,Blade Table
  • Rail：Hiwin Liner Guide Rail
  • Transport Package：Playwood Box
  • Specification：900x600mm
  • Trademark：DWIN
  • Origin：Jinan City Shandong Province China
  • HS Code：8456100090
  • Production Capacity：10set,Month

Description

1ModelDW9060 laser cutting machine 2Working area90cm*60cm / 35in*24in (L*W)3Laser power60W/80W/100W

4

Laser typeCO2 sealed laser tube,water-cooled5Engraving speed25-60000mm/min6Cutting speed50-10000mm/min7Power supply 220V±10% /50HZ , 110V±10%//60HZ8Min. shaping characterLetter 1.0 x 1.0mm9Graphic format supportedBMP, PLT, DST, DXF, AI,CDR10Software supportedCorelDraw, PhotoShop, AutoCAD11Laser Output Control1-100% software setting12Highest Scanning Precision2500DPI13Resolution ratio< 0.01mm14Location precision<0.01mm15Working temperature5°C-40°C16Operating humidity5%-95%(without condensed water)17Equipment Dimension1420mm*1100mm*1070mm/57in*43in*42in (L*W*H)18Net Weight300kg19Optional partsUp-down worktable, Red light pointer, Auto focus, Rotary device

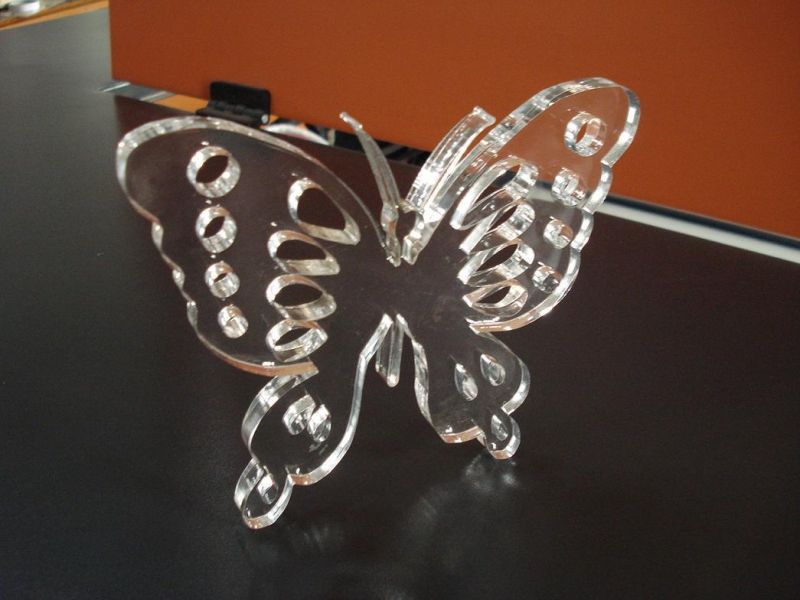

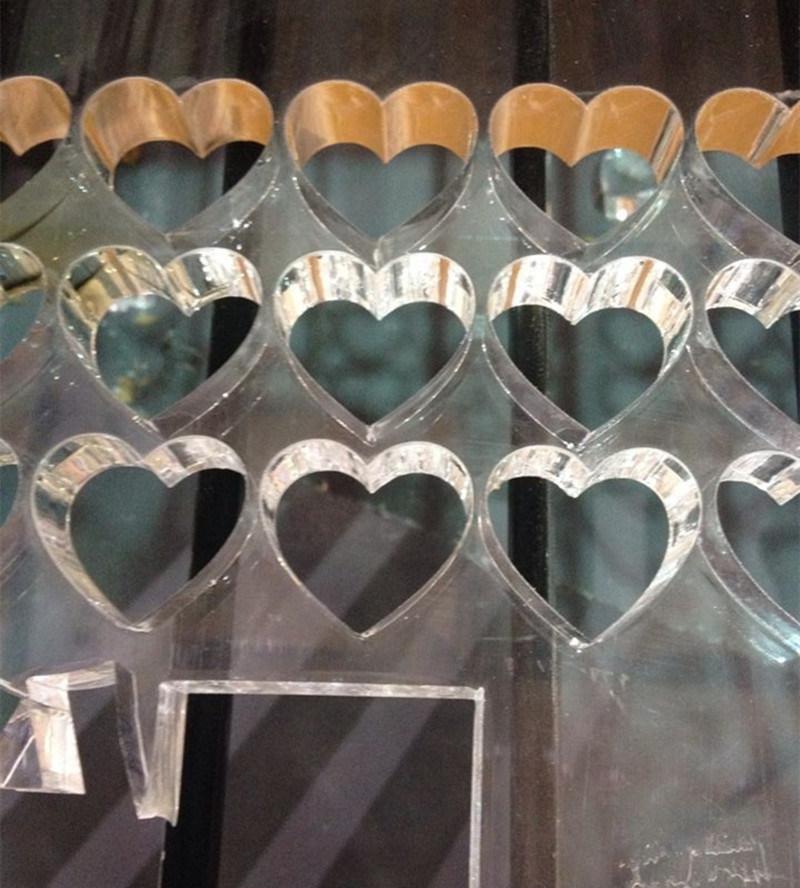

Samples :

Hot Sale 600X900mm 60W/80W/100W CO2 Laser Cutting Engraving Machine


Hot Sale 600X900mm 60W/80W/100W CO2 Laser Cutting Engraving Machine


Factory :

Hot Sale 600X900mm 60W/80W/100W CO2 Laser Cutting Engraving Machine
Warranty :


1. 24 months quality guarantee for the main parts of the machine, excluding consuming parts, and the main parts shall be changed free of charge during the warranty time3


2. Lifelong maintenance for the machine, and lifelong technical support from sophisticated English-speaking engineer team.


3. Free training course at our plant


4. We will provide the machine consuming parts with factory price when you need replacement.


5. 24 hours online service each day, free technical support.
