Basic Info.

Model NO. Multiple models Automation Automatic Computerized Computerized Certification CE, ISO9001:2008, SGS/BV Size 2700X2300X2150 Transport Package Wooden Package/Film Package/Steel Frames Package/C Specification CE/ISO9001/SGS Trademark SOYU Origin Suzhou HS Code 84778000 Production Capacity 1000sets/Year

Product Description

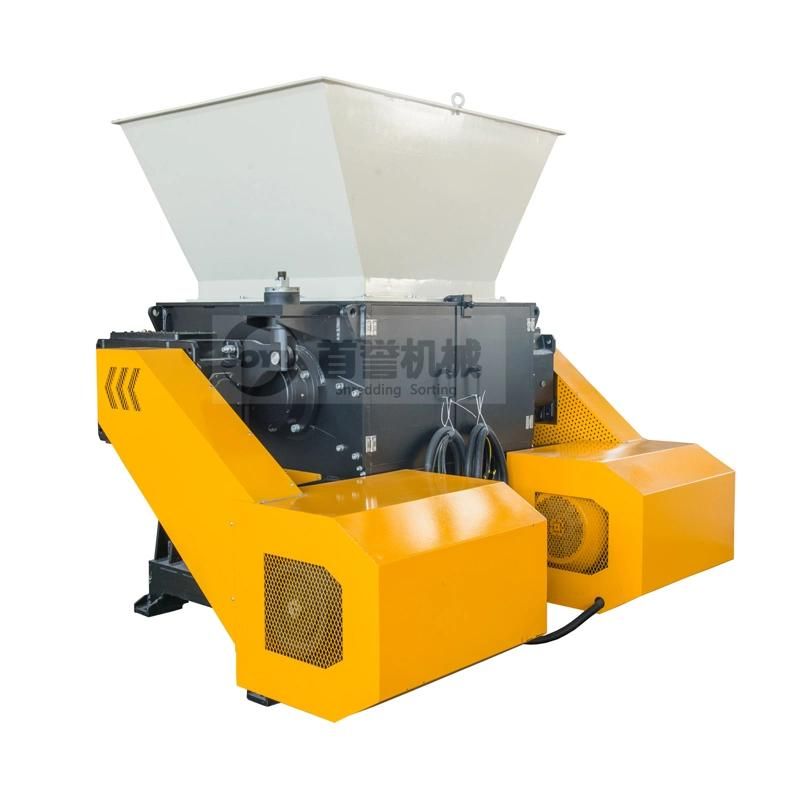

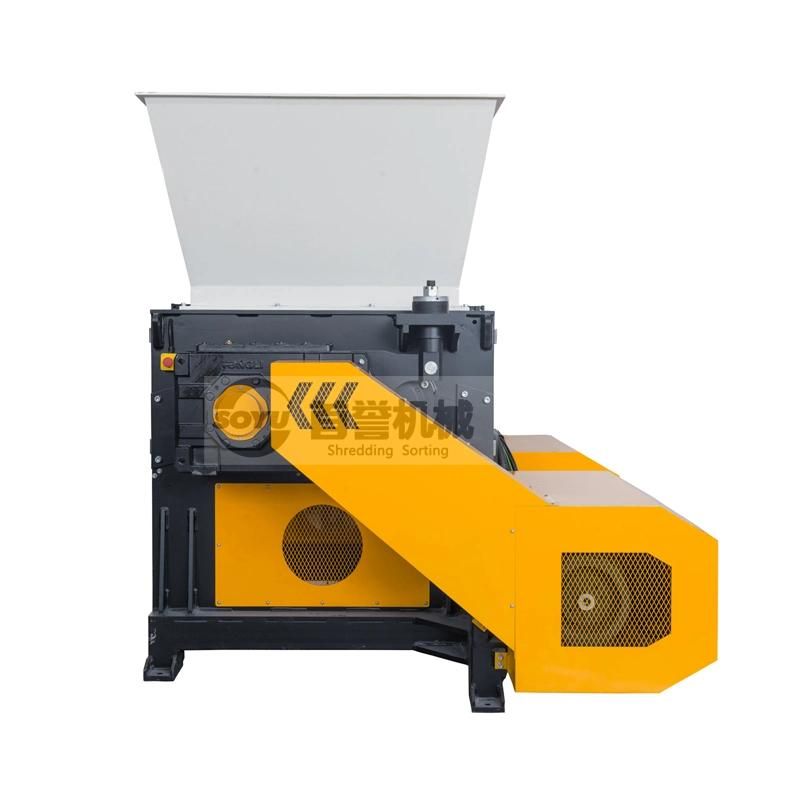

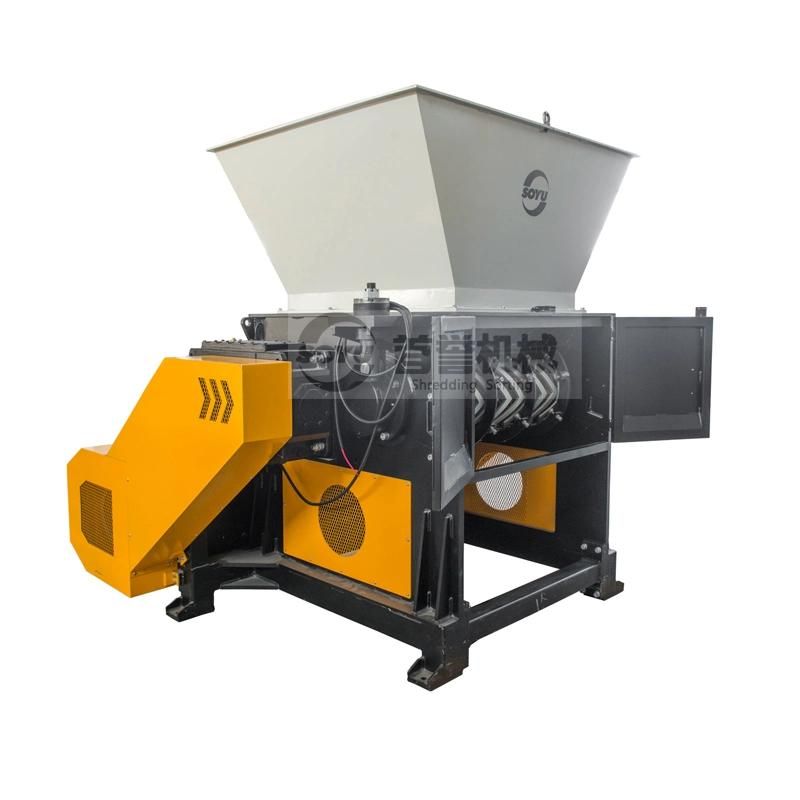

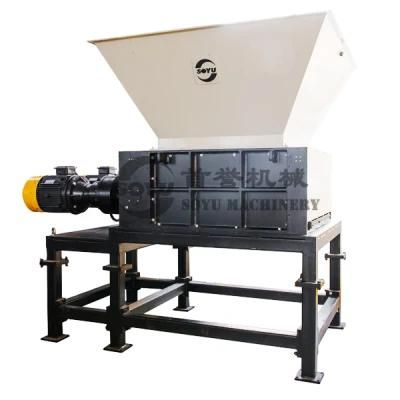

Big Bag Plastic Film Shredder

This machine specifically for PP / PE waste film, woven bags, big woven bags, paper design, production models according to the size, reach 500-6000KG per hour, the expected size of about 40-100MM.



Features:

Large feed opening, easy to feed;

Automatic continuous crushing, high yield;

Knife roller surface using surface hardening treatment can prolong life;

Standardized blade design, blade replacement fast, convenient and reduce the cost;

  Standardized screen design, size optional, easy to replace.

Model	SR600	SR750	SR900	SR1100
Main shaft speed(rpm)	73	73	73	73
Ram travel(mm)	500	820	820	820
Rotor diameter(mm)	Φ220	Φ400	Φ400	Φ400
Number of rotor blades(pcs)	23	44	52	66
Number of fixed blades(pcs)	4	6	6	8
Discharge height(mm)	500	610	610	610
Screen holes diameter(mm)	40	40	40	40
Motor power(kw)	18.5	37	45	55~75
Hydraulic power(kw)	1.5	2.2	2.2	5.5
Cutting chamber dimensions(mm)	540x600	830x708	830x840	830x1071
Overall dimensions(LxWxH)(mm)	1800x1350x1700	2810x2000x2115	2810x2100x2115	2810x2650x2115
Weight(kg)	Approx 1600	Approx 4460	Approx 4560	Approx 5464
