• Model NO.：GDQ
• Voltage：380V
• Power(W)：2kw
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Gross Weight：400kg
• Transport Package：Wooden Case
• Specification：CE, ISO9001: 2008
• Trademark：SHANGHAI TG MACHINERY
• Origin：China, Shanghai
• HS Code：84382000
• Production Capacity：20set,Year

Basic Info.

Model NO. GDQ Voltage 380V Power(W) 2kw After-Sales Service Provided Engineers Available to Service Machinery Overseas Gross Weight 400kg Transport Package Wooden Case Specification CE, ISO9001: 2008 Trademark SHANGHAI TG MACHINERY Origin China, Shanghai HS Code 84382000 Production Capacity 20set/Year

Product Description

PRODUCT SHOW:

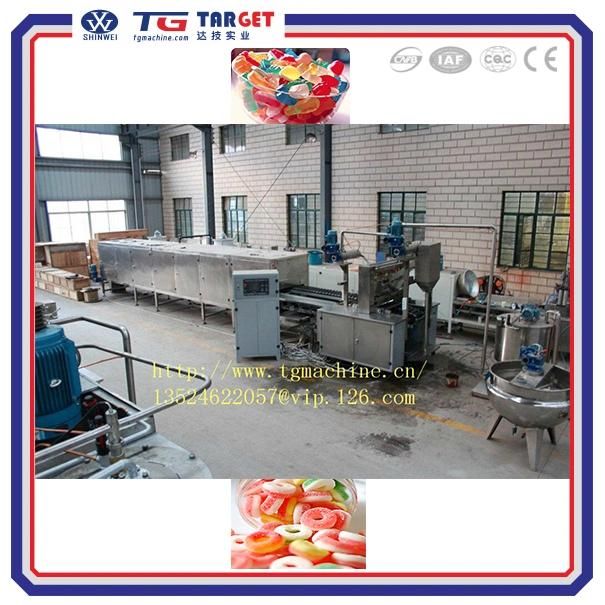

GD450Q JelIy  candy processing line is an advanced  and continuous plant for  making different sizes  of jellycandies (QQ candies).It is an ideal equipment which can produce out good quality products with the saving ofboth the manpower and the space occupied. Thisdepositing line consists of jacket dissolving -cooker, gear pump, storage strainer, storagetank, discharging pump, color & flavorjigger, color &flavor mixer, depositor, cooling tunnel, electric control cabinet, etc.
 With the sanitary structure design, on one hand it can produceone or two colors candy; on the other hand, it can automatically blend theessence pigment and fermenting liquid in accurate quantity ratio.

TECHNICAL SPECIFICATIONS:


Model	GD150Q	GD300Q	GD450Q
Production capacity   ( kg/h)	150	300	450
Rated depositing times(n/min)	20~25	20~25	20~25
Weight of each candies(g): 1. two colors 2. single color	2g~.6g 1.5g~6g	2g~6g 1.5g~6g	2g~6g 1.5g~6g
Electric power needed	8kw/380V	12kw/380V	16kw/380V
Refrigerator	MT160 x1 15,000kcal/h 10.5kw	MT160x2 30,000kcal/h 21kw	MT160x2 30,000kcal/h 21kw
Compressed air consumption Compressed air pressure	0.20m ³ /min 0.4-0.6 Mpa	0.25m ³ /min 0.4-0.6 Mpa	0.25m ³ /min 0.4-0.6 Mpa
Conditions needed for   the cooling system: 1.Room temperature(ºC) 2.Humidity (%)	20~25 55	20~25 55	20~25 55
Conditions needed for   the cooling system: 1.Room temperature(ºC) 2.Humidity (%)	20~25 55	20~25 55	20~25 55
Length of the whole line   (m)	9m	11m	15m
Gross weight           ( Kgs)	Approx.3000	Approx.4000	Approx.5000


Our client
We have 40 years of production experience. In these 40 years, we have met customers from various countries. They are also very optimistic about our company and often buy back. We have tens of thousands of domestic and foreign customers. I hope you can trust Shanghai Target Industry Co., Ltd .

Company Information
Shanghai Target Industry Co., Ltd is the sales and service company for Shanghai SHINWEI Machinery Manufacturing Co., Ltd which is the first manufacturer to build the complete production line for depositing hard candies in China and has accumulated 40 years' fabrication experience. It is also one of the leading and professional exporters in China by providing customers home and abroad with high quality confectionery, chocolate, biscuit and packaging machinery. Our machineries have been exported to East European, south America, middle east, southeast Asia.
Our complete certificate
Shanghai Target Industry Co., Ltd benefiting from the company's investment in product R&D management, has now obtained various types of candies, cracked pearls, and biscuits related certificates, and has been recognized by international evaluation agencies. On this basis, we also Will continue to work hard on research and development, and continue to cultivate in the field of confectionery.
After-sale services for all the customers
a. Free training of machine installation, operation and maintenance will be provided;
b. Some spare parts will be sent together with the machine for free and some spare parts are always at favorable price for regular customers;
c.Technical support will be offered by call, email or video etc;
d.If necessary, our engineer will go to your factory for machine installation, adjustment or maintenance.
Our exhibition
Shanghai Target Industry Co., Ltd not only has sufficient confidence in the products. In terms of marketing and brand marketing, we actively participate in various exhibitions, network operations and other investment (Canton Fair, foreign baking exhibition, Dubai GULFOD, food machinery packaging exhibition and other professional exhibitions)

Packaging & Shipping
Wooden Case/Plywood

1. Product production is completed, by the quality inspection department to check
2. After inspection qualified, clean for whole machine
3. Packing:

1.  Inside the machine put desiccant

b.  Add 6 cm thick foam plate around the machine, Then, winding stretch film for reinforcement, and combined with bubble wrapc. On wood packaging on the outside of the machine, then use metal reinforcement with steel

1. Container:according to different products for reinforcement
