Basic Info.

Model NO. XY-200 Bit Type Diamond Bit Drilling Way Rotary Type Vertical Shaft Price Cheap Transport Package in Plywood Case Specification 200 Trademark XY Origin Changsha, Hunan, China HS Code 8430691900 Production Capacity 30 Sets/Month

Product Description

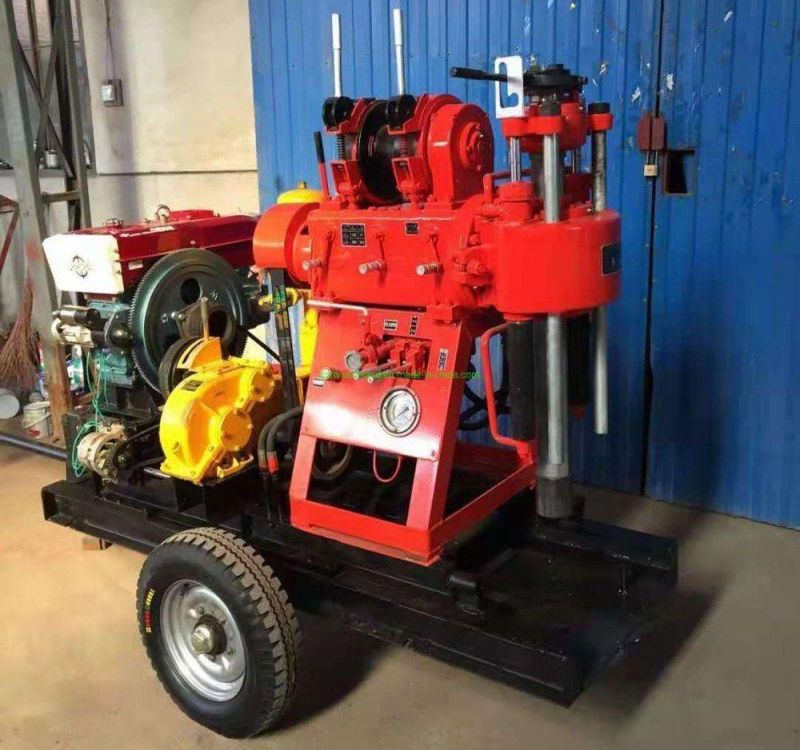

XY-200 Portable Trailer Mounted Geotechnical Investigation Drilling Rig:

Drilling depth(m): 200;
LxWxH(mm): 1860x800x1400;
Spindle stroke(mm): 500;
Diesel engine: Zs1110(14.7 KW);
Electromotor: Y160L-4(15KW);

Product Features:

Good stability and high reliability.
Multilevel positive and reverse rotate speed.
The complete hydraulic chuck and vertical spindle.
Convenient to transport with the small volume and light weight.
Perfect frame's rigidity, low center of gravity and good stability.

Product Application:

It is widely used in the construction of the projects e. G. Prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc.

The Technological Data of XY-200 Drilling Rig:

Type	XY-200 Drilling Rig
Drilling depth(m)	200
Drilling rod diameter(mm)	Φ50
Head angle range	360°
Cylinder stroke(mm)	360
Spindle speed(r/min)	Positive rotation rate: 60150240340550830 Reverse rotation rate: 3585135195330480
Spindle hole diameter(mm)	Φ65
Spindle output torque(N.M)	2140
Spindle stroke(mm)	500
Spindle driving force max.(KN)	37
Spindle lifting power max.(KN)	50
Lifting speed (m/s)	0.62.33.4
Single rope lifting power(KN)	20
Steel wire rope diameter(mm)	Φ11
Mode of chuck	Full hydraulic chuck or ball-type chuck
Weight(power unit excepted)(kg)	750
Dimensions(LxWxH)(mm)	1860x800x1400
Diesel engine	Zs1110(14.7KW)
Electrometer	Y160L-4(15KW)
