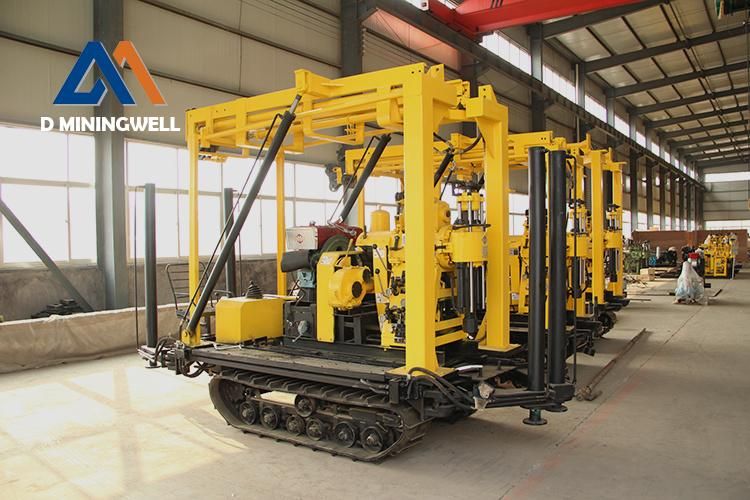

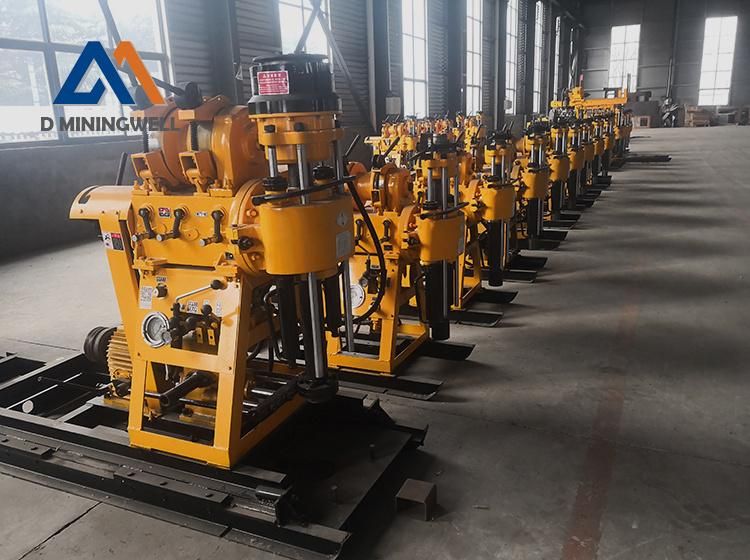

D Miningwell Hz-180yy Core Drill Rig Movable Cheap Rock Drill Rig Portable High Quality Hydraulic Core Drill Rig for Sale
JiangSu Weixiangrui Intelligent Equipment Technology Co., Ltd.Base Info
Description
Basic Info.
Model NO. HZ-180YY Drill Hole Depth 180m Bit Type Diamond Bit/ Cone Bit/ Drag Bit Drilling Way Impactor Dimension(L*W*H) 2400*600*1400mm Revolution(Rpm) 130/300/480/730/830/1045 Key Selling Points Low Maintenance Cost Matching Power 13.2 Kw Weight 610kg Max Pressure 1.2MPa Stroke 450 Max Pull Force 2000 Transport Package Carton Specification 2400*600*1400mm Trademark D Miningwell Origin Zhejiang, China Production Capacity 16 PCS Per MonthProduct Description
D Miningwell HZ-180YY Core Drill Rig Movable Cheap Rock Drill Rig Portable High Quality Hydraulic Core Drill Rig for Sale
| Model | HZ-130Y/130YY | HZ-180Y/180YY | HZ-200Y/200YY |
| Drilling depth(m) | 130 | 180 | 200 |
| Open hole diameter(mm) | 220 | 220 | 325 |
| End hole diameter(mm) | 75 | 75 | 75 |
| Drill rod diameter(mm) | 42-60 | 42-60 | 42-60 |
| Drill angle(°) | 90-75 | 90-75 | 90-75 |
| Matching power(kW) | 13.2 | 13.2 | 15 |
| Weight without power(kg) | 560 | 610 | 1150 |
| Dimension(mm) | 2400*700*1400 | 2400*600*1400 | 2700*900*1600 |
| Revolution(rpm) | 142/285/570 | 130/300/480/730/830/1045 | 64/128/287/557 |
| Stroke(mm) | 450 | 450 | 450 |
| Max pull force(kg) | 1600 | 2000 | 2400 |
| Pull speed(m/min) | 0.41-1.64 | 0.35-2.23 | 0.12-0.95 |
| Rope diameter(mm) | 9.3 | 9.3 | 12.5 |
| Roll capacity(m) | 27 | 35 | 35 |
| Rated load(ton) | 2 | 2 | 5 |
| Height(m) | 6 | 6 | 6 |
| Displacement(L/min) | 95 | 95 | 145 |
| Max pressure(Mpa) | 1.2 | 1.2 | 2 |
| ToFrequency(times/min) | 93 | 93 | 93 |
| Inlet hose diameter(mm) | 51 | 51 | 51 |
| Outlet hose diameter(mm) | 32 | 32 | 32 |
