6040 9060 13090 160100 130250 Leather CO2 Laser Engraving Cutting Machine
Zhangpu Guangguang Plastic Products Co., Ltd.- After-sales Service：Lifetime Technical Support
- Warranty：3years
- Application：Home Appliance, Textile Machinery, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Nonmetal
Base Info
- Model NO.：PEDK-13090
- Structure Type：Desktop
- Laser Classification：Free Electron Laser
- Laser Technology：Laser Control Fault Cutting
- Engraving Machine Type：Laser Engraving Machine
- Usage：Woodworking
- Power：60W,80W,100W,120W
- Drive Type：Stepper Drive
- Certification：CE
- Laser Type：CO2
- Condition：New
- Working Area：1300*900mm
- Cooling：Water Cooling
- Type：Enclosed Type
- Laser Power：60W , 80W , 100W , 130W , 150W
- Engraving Speed：0-60000mm,Min
- Cutting Speed：0-10000mm,Min
- Cutting Thickness：0-25mm Acrylic (Others Determined by Materials)
- Repeat Location Accuracy：+,-0.0125mm
- Transport Package：Sea-Worthy Packing or Air-Worthy Packing
- Specification：CE, SGS, ISO, TUV
- Trademark：Perfect Laser
- Origin：China
- HS Code：845610
- Production Capacity：5000 Sets , Month
Description
Working Area
1300x900mm (4 feet*3 feet) Co2 Laser Cutters
Laser Power
60w / 80w / 100w / 130w / 150w
Laser Type

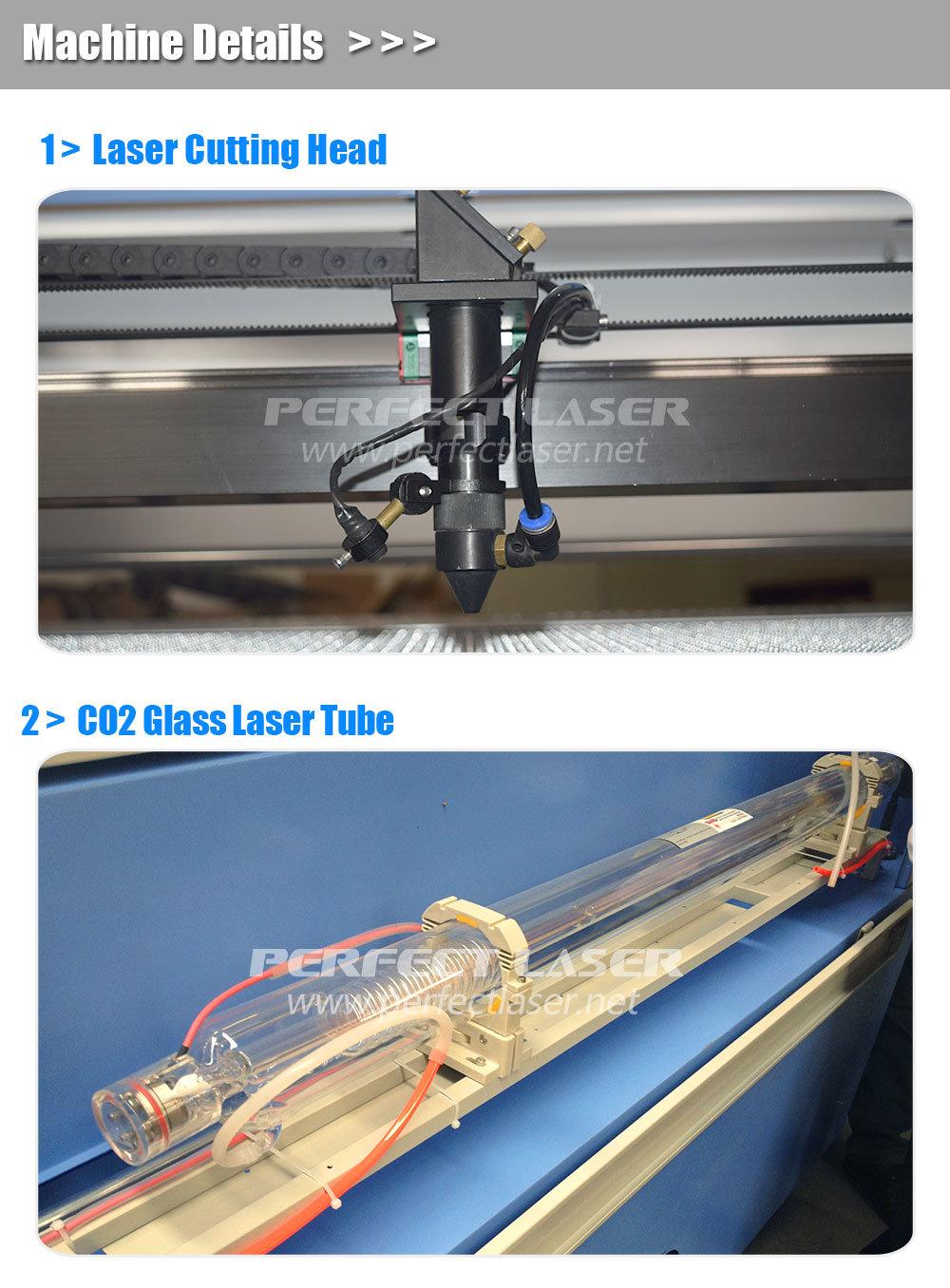

Hermetic and Detached Co2 Laser Tube
Engraving Speed
0-60000mm/min
Cutting Speed
0-10000mm/min
Cutting Thickness
0-25mm acrylic (Others Determined by Materials)
Repeat Location Accuracy
+/-0.0125mm
Driving Mode
DC0.8A 24V Stepper Motor
Position System
Red dot Laser Pointer
Interface
USB port transfer
Voltage
AC220v/50hz or 110v/60hz
Machine Power
900w
Controlling System
CNC Professional Control System
Support Graphics Mode
BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc.
Cooling Mode

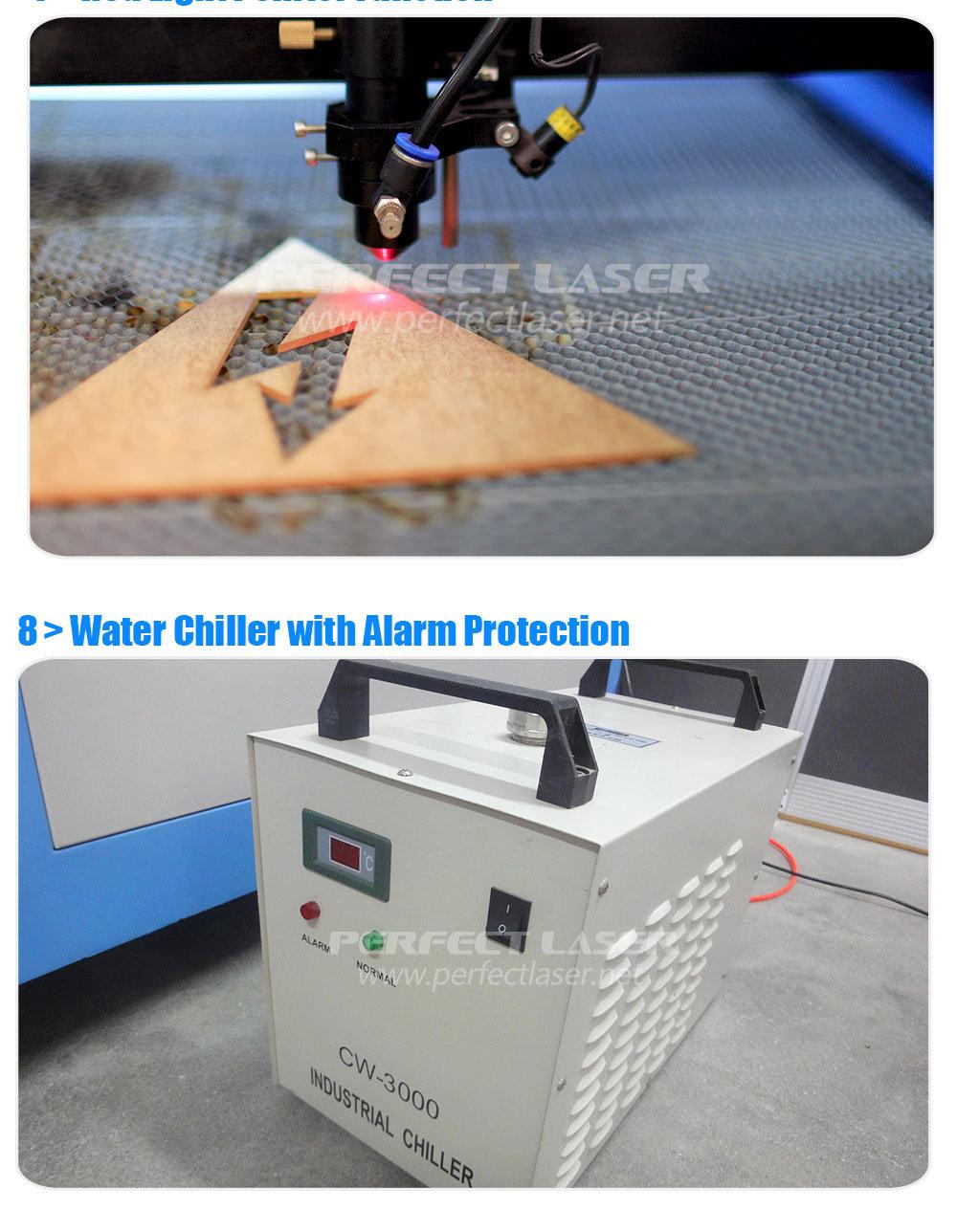

CW-3000 Water Cooling (with Protection Function)
Auxiliary Devices
Exhaust Fan and Exhaust Pipe
Cutting Platform

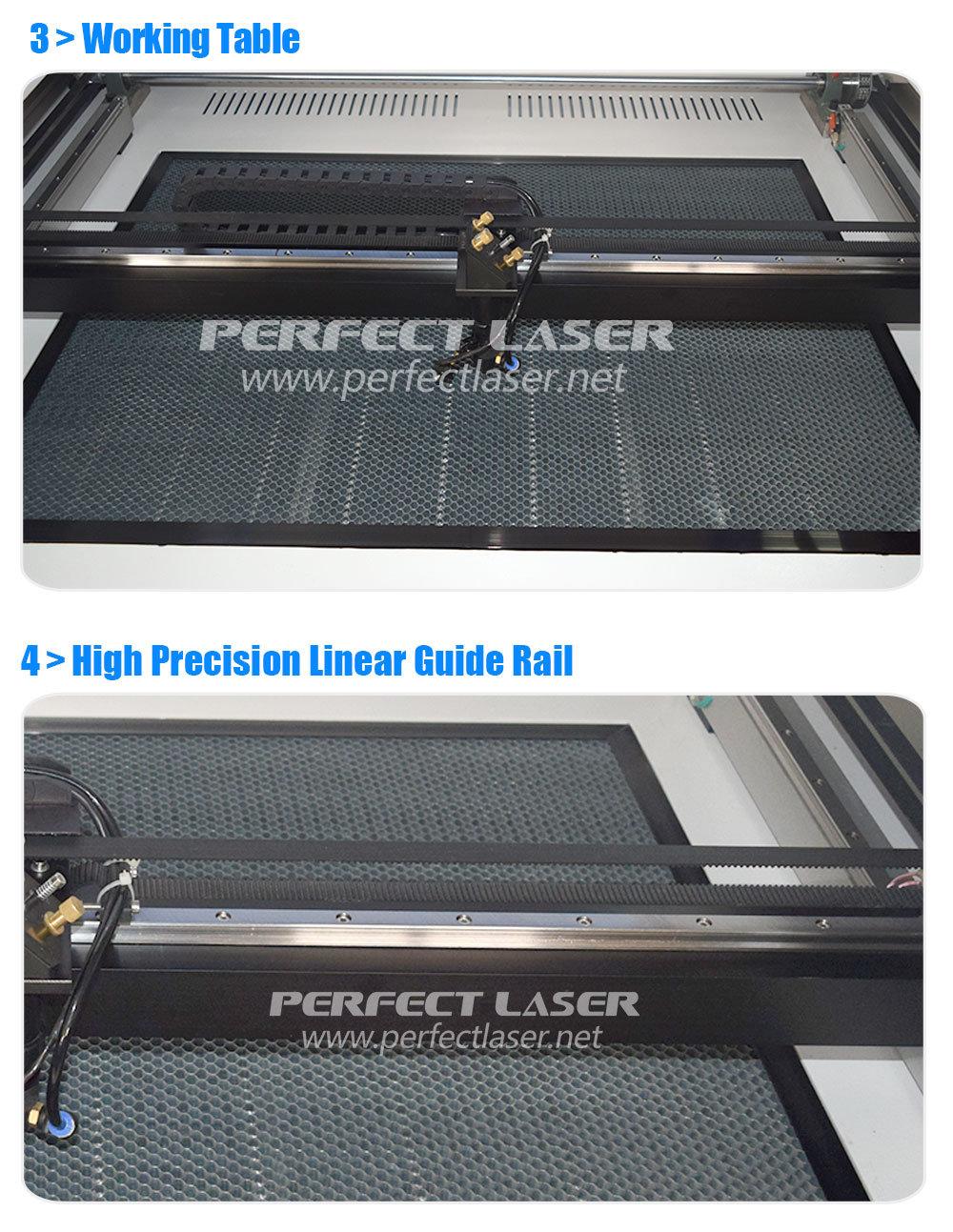

Professional Thickening Strip or Honeycomb Work Table
Power Control Mode
Laser Energy Combining Movement Control System
Software
Professional Reader Laser Cutting Software
Operating Temperature
0-45C
Operating Humidity
5-95%
Packing
Wooden Box
Guarantee Time
12 Months for Machine, 3-10 Months for Laser Tube
Operation
VCD Training, Engineer Overseas Available
Machine Size
1970mm*1480mm*1250mm
Details
Advantage of Perfect Laser's Laser Engraving Machine:

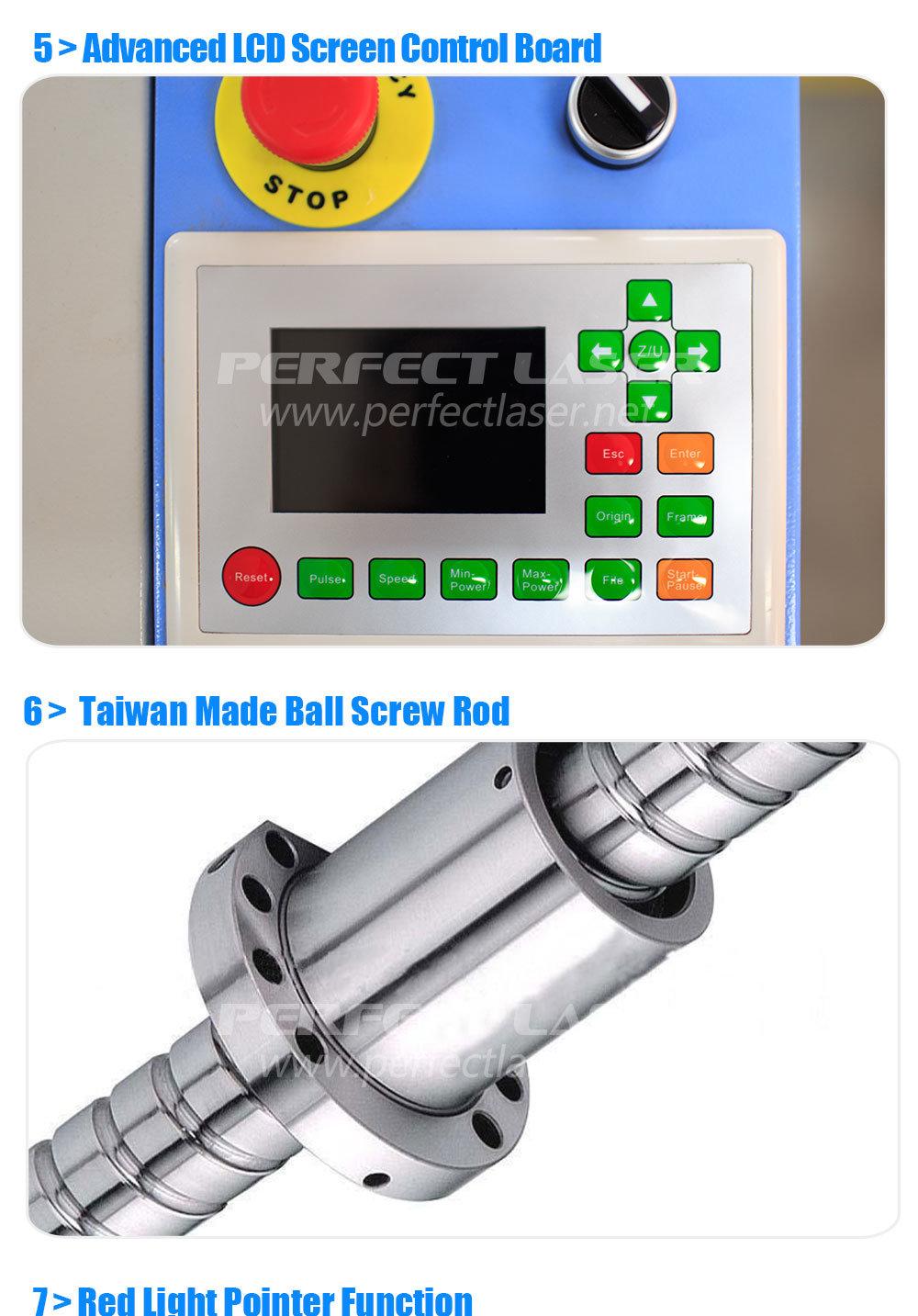

1. We use ball screw rod to make the up and down table, which ensure its long-term using and precision. While other company may have less precision, and will be noise after a period using.
2. We use American IIV company's reflect mirror and focus lens, which prolong the lifetime of the spare parts.
3. For laser tube, we use the Chinese top brand laser tube, have very stable performance, lifetime can reach 3000 hours. Also, we have another brand laser tube with 10000 hours lifetime if you require, we can use it in our order.
4. For water chiller, we use both CW5000 for single head, and CW5200 for double head laser machine.
5. All the machine are use red pointer and auto focus system.
6. All the machine have LCD offline control system + USB port.
7. The bearing we use Japan import NSK brand, which ensure the long time performance and accuracy.
8. the transforming belt adopt the famous FULONG brand, it have the metal in the material, so it is fasten and not easy to loosen.
9. All the power supply and laser device are will be running for at least 48 hours testing to ensure it's good performance.
All the features are more than above
Packing&Shipping
Company Introduction
Payment terms: T/T, L/C, West Union.
Delivery lead time: 7-10 working days after receipt of the advance payment.
Delivery method: by sea or air shipment.
Packing: compound wooden cases with exporting standard
