Basic Info.

Model NO. SJSZ Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Name Plastic Conical Single Double Screw Twin Screw Ext Inverter ABB Brand Motor Siemens Beide Raw Material All The Plastic Contactor Siemens Contactor Warranty 1 Year Color Customised Temperature Controller Rkc Usage Pipe Sheet Profile Pellets Voltage 380V 50Hz 3phase(Customized) Transport Package Standard Shpping Package Specification 3.5mx1...5mx2m Trademark CAMEL Origin China(Mainland) HS Code 84772090 Production Capacity 800 PCS/Year

Product Description

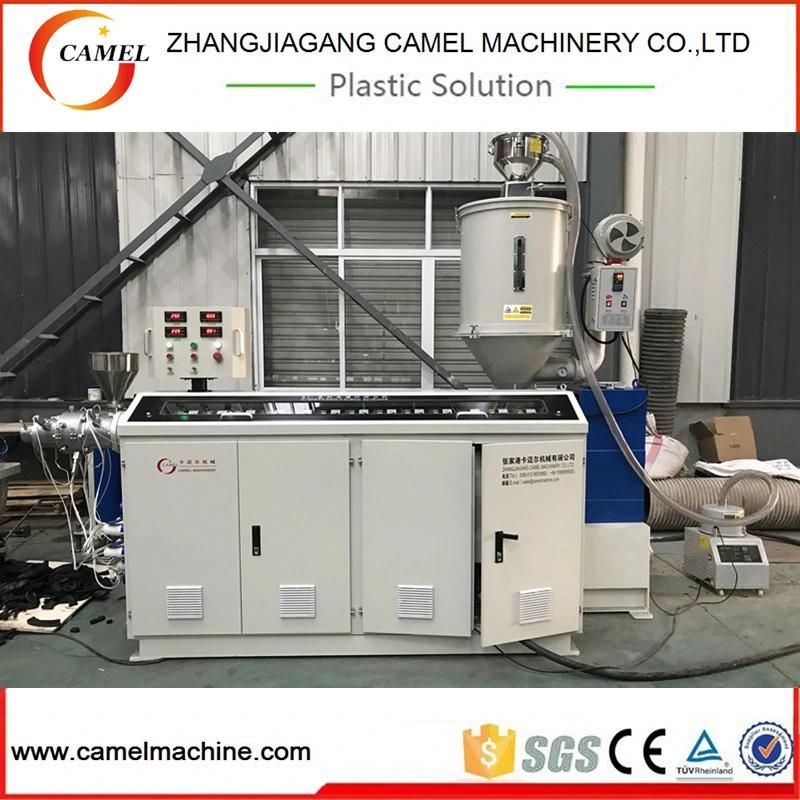

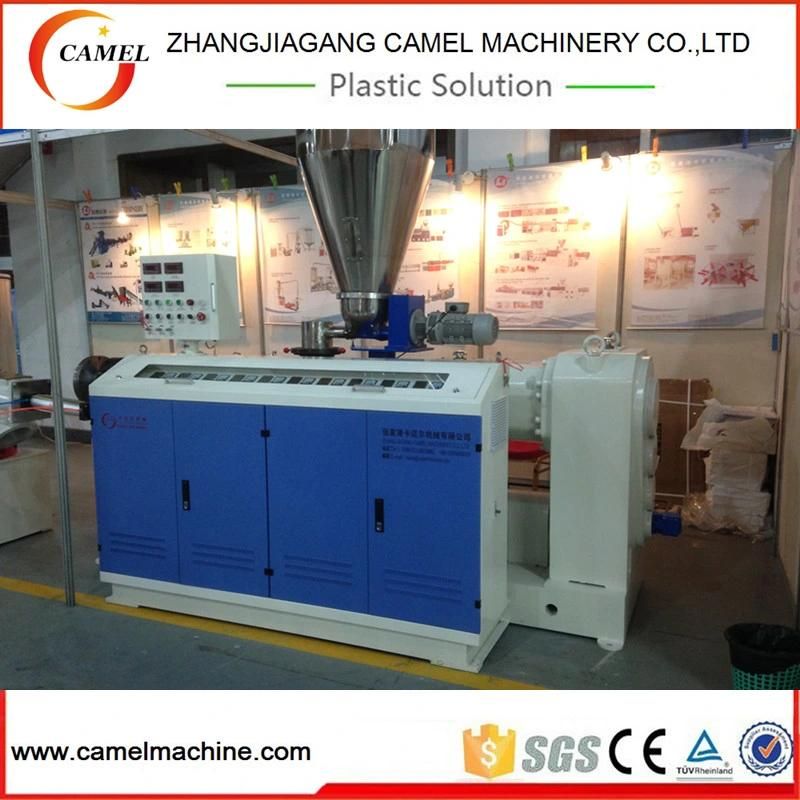

Extruder machine





Technical data

Model	SJSZ51/105	SJSZ55/100	SJSZ65/132	SJSZ80/156	SJSZ92/188
Screw diameter (mm)	51/105	55/100	65/132	80/156	92/188
Quantity of screw	2	2	2	2	2
Max. Rotation speed of screw (r/min)	40	38	38	37	36
Effective length of screw (mm)	1200	1200	1440	1800	2500
Main motor power (kw)	18.5	22	37	55/75	90/110
Productuion capacity (kg/h)	100	150	250	400	750
Center height (mm)	1000	1000	1000	1100	1200
Dimensions (L*W*H)mm	3360*1290 *2127	3620*1050 *2157	3715*1520 *2450	4750*1550 *2460	6725*1550 *2814

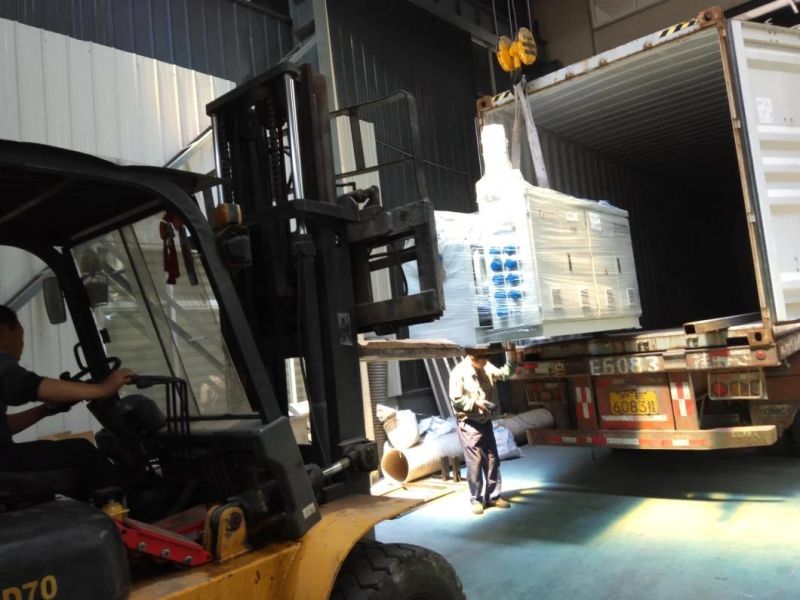

Packaging&Shipping
