• Model NO.：SGBB
• Specification：400x15x60mm
• Trademark：COREDIAM
• Origin：China
• HS Code：82023910
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. SGBB Specification 400x15x60mm Trademark COREDIAM Origin China HS Code 82023910 Production Capacity 1000PCS/Month

Product Description

1. Introduction

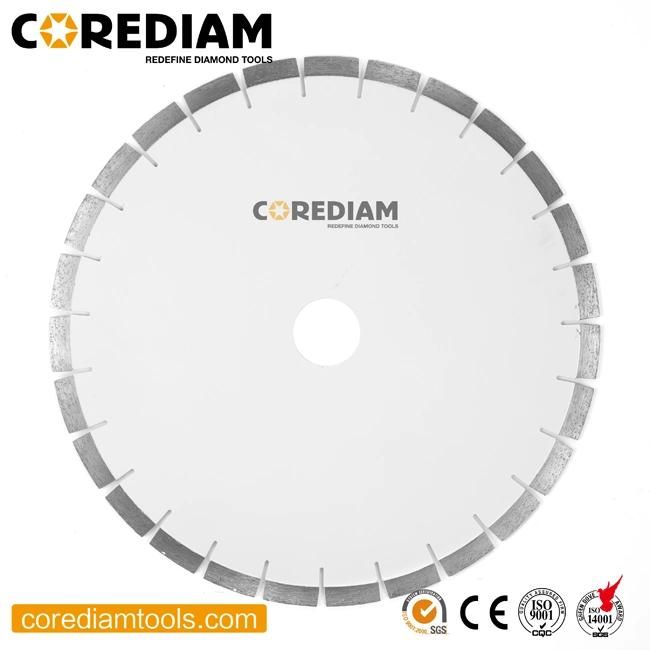

The diameter is 400mm. The granite blade has good sharpness and high efficiency in the process of cutting. The quality level is premium. The manufacture of art is laser welded. This type of blade has a good cutting result: smooth and stable cutting, flat surface, and even size, narrow cutting gap, stone waste reduction. Moreover, granite cutting disc has a long lifespan.

2.Cutting materials & equipment

Cutting materials: granite and other stone.
Install equipment: stone saw, tile saw, Masonry saw





3. Features:
Manufacturer technology: laser welded
Suitable: wet cutting
Advantage: has good sharpness and high efficiency in the process of cutting. Meanwhile, granite cutting disc has a long lifespan. Good cutting result: smooth cutting, flat surface, and even size. Stable cutting, narrow cutting gap, stone waste reduction.

4.Lasered granite blade production process.
Raw material→ powder mixing → Steel core process → cold press → segment sintering → welding → surface treatment → package → dispatch

5. Size data are as below:

Item No.	Diameter	Segment Height	Segment Width	Arbor
SGBA25015	250mm	15mm	3.0mm	60mm
SGBA30015	300mm	15mm	3.2mm	60mm
SGBA35015	350mm	15mm	3.2mm	60mm
SGBA40015	400mm	15mm	3.4mm	60mm
SGBA45015	450mm	15mm	3.6mm	60mm
SGBA50015	500mm	15mm	3.6mm	60mm
SGBA60015	600mm	15mm	4.0mm	60mm

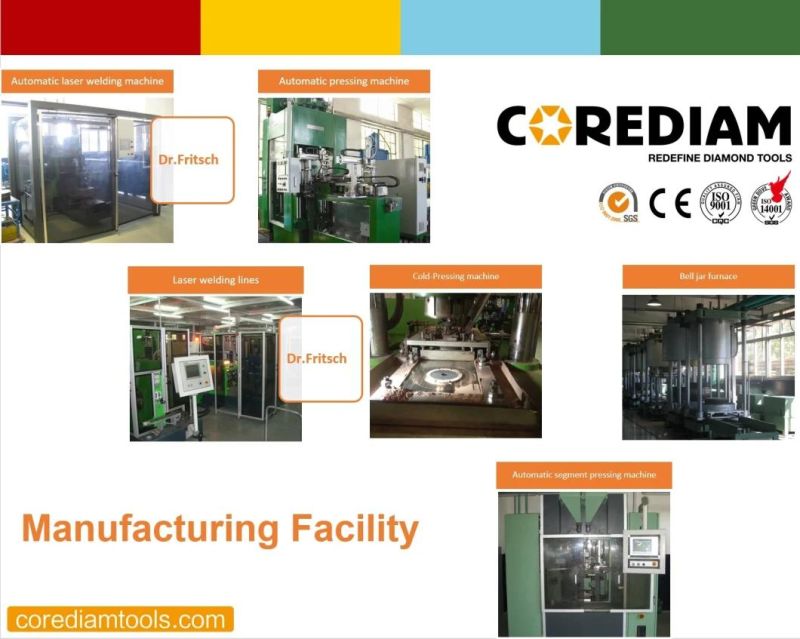

6.Corediam manufacturing facility.





7. Corediam Silk Screen Design



8. Corediam sales network
