• Model NO.：UG-6040L
• Applicable Material：Nonmetal
• Structure Type：Desktop
• Laser Classification：Gaseous Laser
• Laser Technology：Laser Control Fault Cutting
• Working Area：600*400mm
• Laser Type：CO2 Sealed-off Laser Tube
• Rated Laser Power：65W, Yongli Brand
• Working Table：Knife Strip
• Driver and Motor Type：Yako Three Phases Stepper Motor and Driver
• Guide Rail：Linear Square Guide Rail
• Transmission Type：Belt Transmission
• Cutting Speed：0-10000mm,Min
• Control System：Leetro Mpc8530( Lasercut 6.1 Software)
• Auto Lifting Table：up and Down 300mm
• Transport Package：Plywood Case
• Specification：1480*1035*1285mm, 280kgs
• Trademark：UPGOAL
• Origin：China
• HS Code：8456110090
• Production Capacity：250set Per Month
• Package size per unit product：148.00cm * 104.00cm * 129.00cm
• Gross weight per unit product：280.000kg

Basic Info.

Model NO. UG-6040L Applicable Material Nonmetal Structure Type Desktop Laser Classification Gaseous Laser Laser Technology Laser Control Fault Cutting Working Area 600*400mm Laser Type CO2 Sealed-off Laser Tube Rated Laser Power 65W, Yongli Brand Working Table Knife Strip Driver and Motor Type Yako Three Phases Stepper Motor and Driver Guide Rail Linear Square Guide Rail Transmission Type Belt Transmission Cutting Speed 0-10000mm/Min Control System Leetro Mpc8530( Lasercut 6.1 Software) Auto Lifting Table up and Down 300mm Transport Package Plywood Case Specification 1480*1035*1285mm, 280kgs Trademark UPGOAL Origin China HS Code 8456110090 Production Capacity 250set Per Month

Packaging & Delivery

Package size per unit product 148.00cm * 104.00cm * 129.00cm Gross weight per unit product 280.000kg

Product Description

Small 65W Paper-Cuts Laser Cutting Machine Co2 Laser Cutter





Features

Laser Head( Auto focusing & infrared positioning)

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

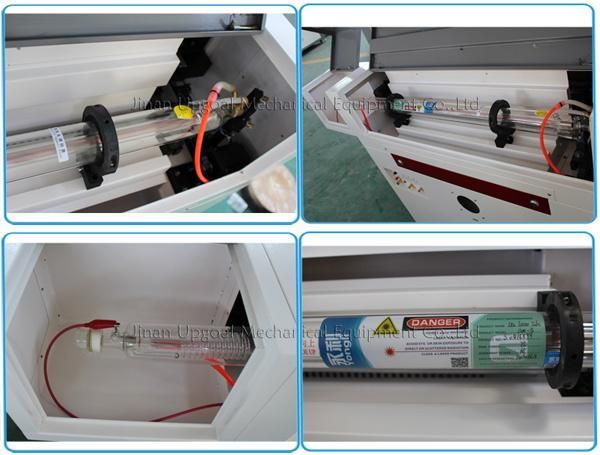

Laser Tube

Adopted high quality 65W Yongli brand Co2 laser tube,  long working time time and stable

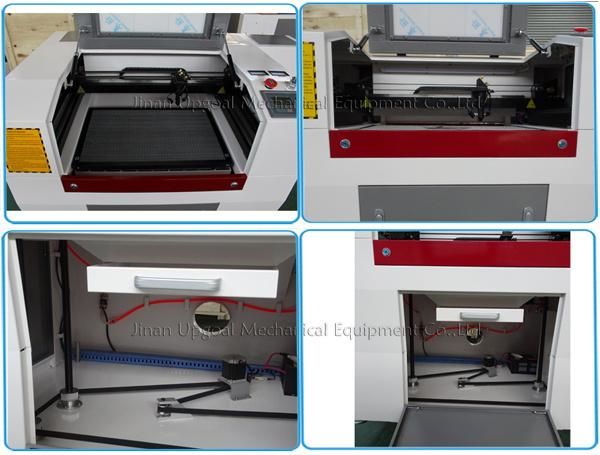

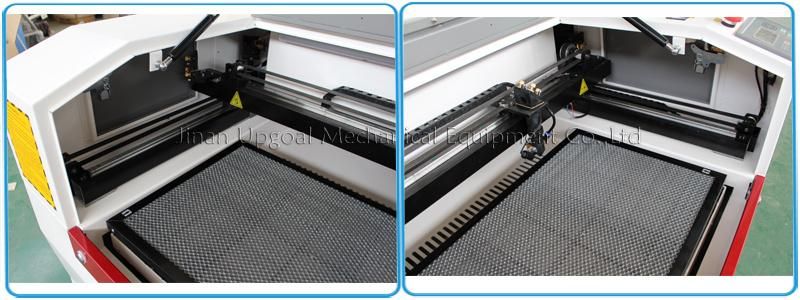

Working Table

Honey Comb Table: applicable to various soft materials with Good adsorption effect and low reflection ratio.

Auto Lifting Table:Maximum Loading 50kgs with 300mm up-down distance.



Motion System

Imported High precision, low friction force and stand wear and PMI Taiwan linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise



Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

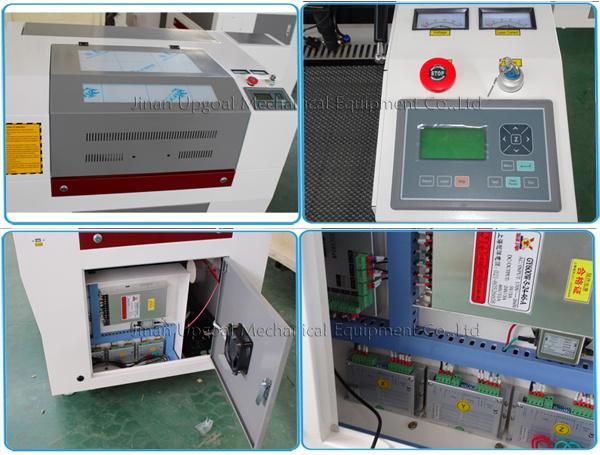

Operation System

Advanced USB port Leetro latest MPC 8530DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .



With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.


Technical Parameters


Effective working area	600*400mm
Laser Type	Co2 sealed-off laser tube
Laser tube power	65W, Yongli brand
Working table	Honey comb working table
Auto lifting table	Up and down 300mm
Driver mode	3 phases stepper motor and Driver, Yako brand
Guide rail	Linear square guide rail ( Hiwin,Taiwan)
Transmission	Belt transmission
Control panel	English
Laser output control	1-100% software setting
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Control system	Leetro MPC8530
Control software	LaserCut 6.1
Design software when delivery	CorelDraw
Control panel	DSP offline
Resolution accuracy	< 0.01mm
Location precision	< 0.01mm
Highest scanning accuracy	2500DPI
Type of cooling	Water pump or industrial chiller
Water protection system	Yes
Focusing	Auto focus
Blow-off system	Air pump for the laser head Air blower for the machine
Working temperature	0-45 °C
Operating humidity	5-95% (without condensed water)
Supporting picture format	PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Voltage	AC 110V±10% 50/60Hz, single phase or AC 220V±10% 50/60Hz, single phase
Certificate	CE/FDA



Applications

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc

Materials Can work With: Organic glass, acrylic board (the paulownia,  lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.

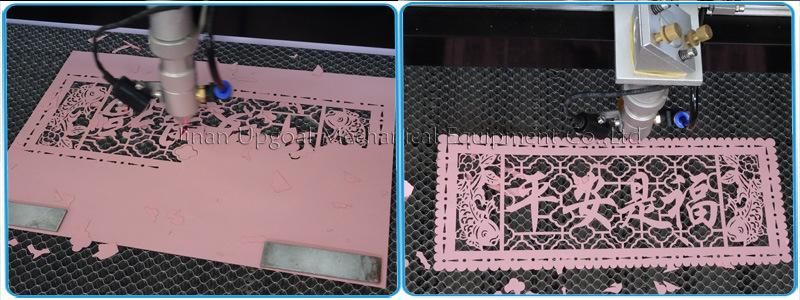

Samples
